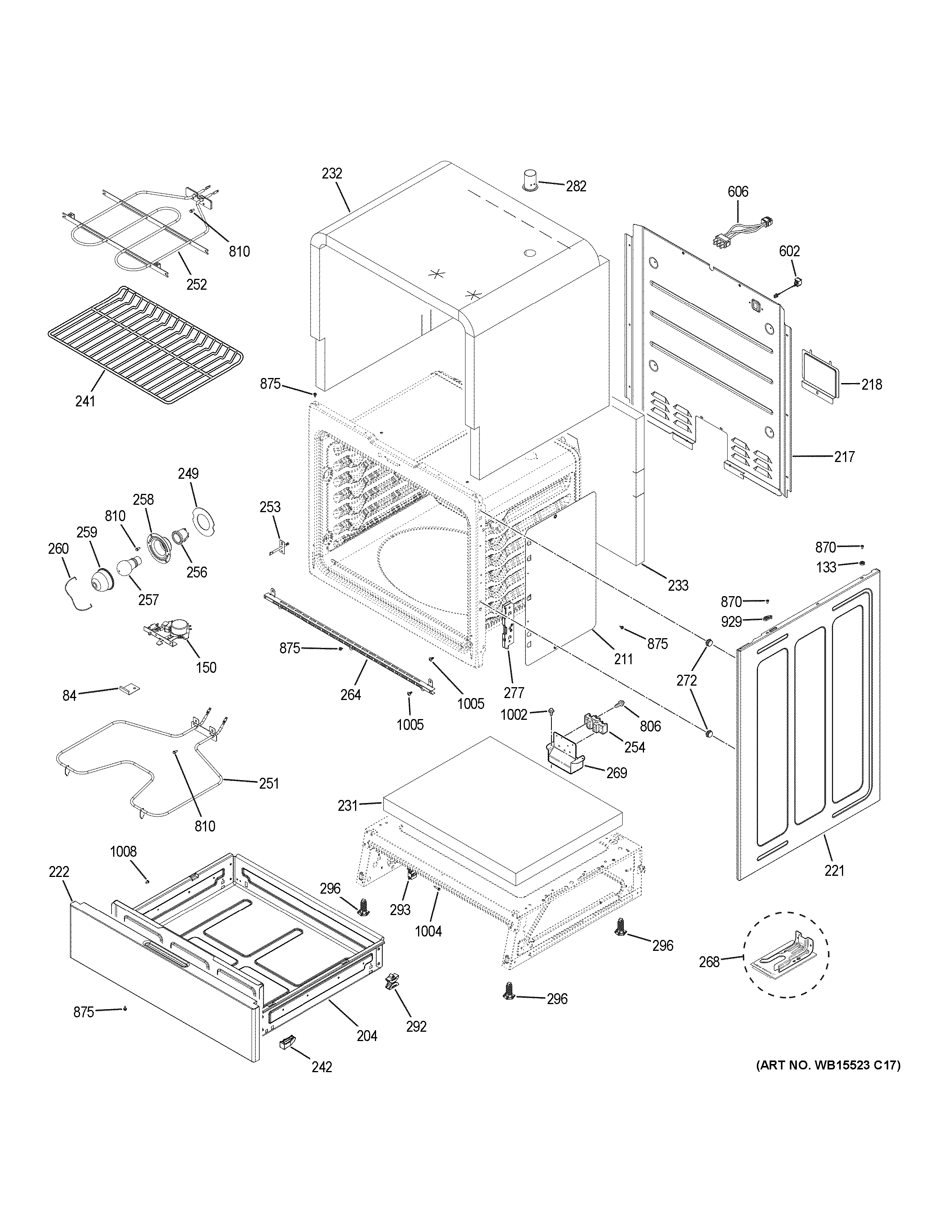

JS645DL4WW BODY PARTS

JS645DL4WW BODY PARTS

Written by

in

JS645DL4WW BODY PARTS

Products

PositionProduct
84WB02T10118 GE Oven Clip Seam
133WB02X29562 GE Range Top Bumper
150WB10X29077 GE Oven Latch Assembly
204WB63X29469 GE Oven Drawer Body Assembly
211WB34X29158 GE Side Insulation Retainer
217WB34X29069 GE Oven Main Wire Cover
218WB02T10560 GE Range Terminal Cover Assembly
221WB56X28884 GE Oven White Side Panel
222DRAWER PANEL WH
231WB35X29075 GE Oven Bottom Insulation
232WB35X29076 GE Oven Insulation Wrapper
233WB35X29074 GE Oven Back Insulation
241WB48T10063 GE Oven Rack
242WB02X29072 GE Oven Drawer Wedge
249WB02T10027 GE Oven Gasket
251WB44X45494 GE Bake Element
252WB44X45497 GE Broil Unit Assembly
253WB21X22134 GE Oven Sensor Assembly
254WB17T10011 GE Oven Terminal Block
256WB08T10026 GE Range Push-In Receptacle
257RANGE ONLY 40W 120V APPL BULB
258WB02T10037 GE Oven Light Cup
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
264WB07T10516 GE Oven Front Trim Assembly
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
269WB17T10021 GE Oven Mount Terminal Block
272WB02T10034 GE Oven Body Side Support
277WB10T10068 GE Oven Hinge Receiver
282WB38X33651 GE Vent Tube
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
602WB18X29523 GE RJ45 Connector Harness
606WB18X32702 GE Temperature Sensor Harness
806WH2X1186 GE Screw
810WB01M10002 GE Oven Screw
870WB1X5904 GE Oven Screw 8-18 BA
875WH2X930 GE Screw
929WB02T10026 GE Oven Strike Maintop
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
1008WB1X5364 GE Oven Mounting Screw
