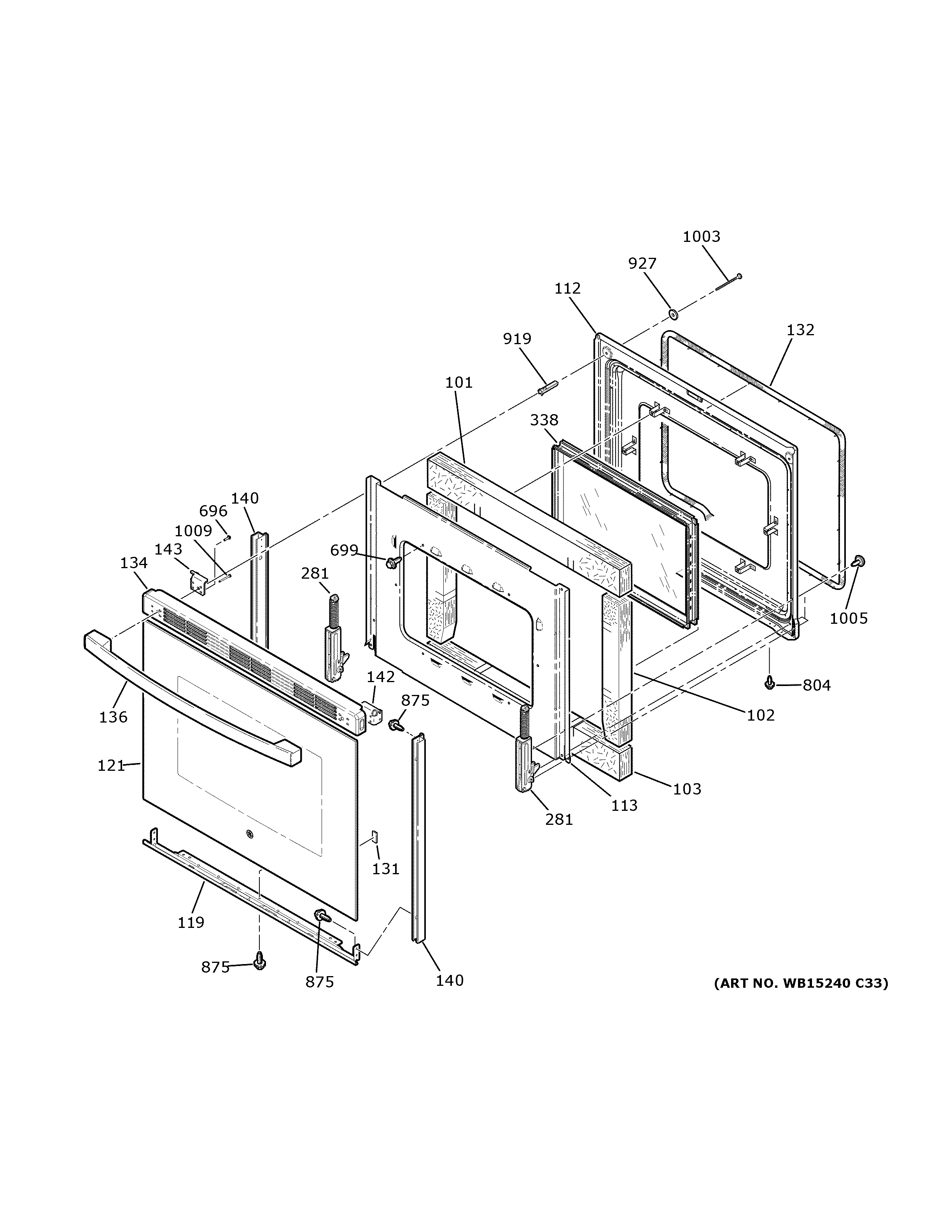

JS645DL4WW DOOR

Products

Position	Product
101	WB35T10134 GE Oven Door Insulation
102	WB35T10135 GE Oven Door Insulation
103	WB35T10255 GE Oven Insulation Door
112	WB55T10203 GE Oven Door Liner Assembly (Black)
113	WB56T10178 GE Oven Door Insulation Retainer
119	WB07X42948 GE Range Bottom Trim Channel White
121	WB56X26641 GE Oven Outer Door Glass
131	WB01T10026 GE Oven Door Pad
132	WB35X30048 GE Oven Door Gasket
134	WB07X27236 GE Oven Vent Door Trim (White)
136	HANDLE & ENDCAP ASM (WH)
140	WB56T10290 GE Oven Door Side Frame (White)
142	WB34X42027 GE Right Hand Door Trim Bracket
143	WB34X42670 GE Left Hand Door Handle Bracket
281	WB10T10070 GE Oven Door Hinge
338	WB56X22160 GE Stove Inner Door Glass Assembly
696	WB01T10103 GE Oven Screw 10-16 AB HXW .532
699	WB1M1 GE Oven Screw
804	WZ4X245D GE Screw Package
875	WH2X930 GE Screw
919	SPACER
927	WB1X119D GE Oven Range Washer
1003	WB02X24268 GE Oven Screw 10-32 CA TRT15
1005	WB01T10008 GE Oven Screw 10-32
1009	WB01T10137 GE Screw 6-32 TR3 PNT 1.405
