JS645EL4ES CONTROL PANEL

JS645EL4ES CONTROL PANEL

Written by

in

JS645EL4ES CONTROL PANEL

Products

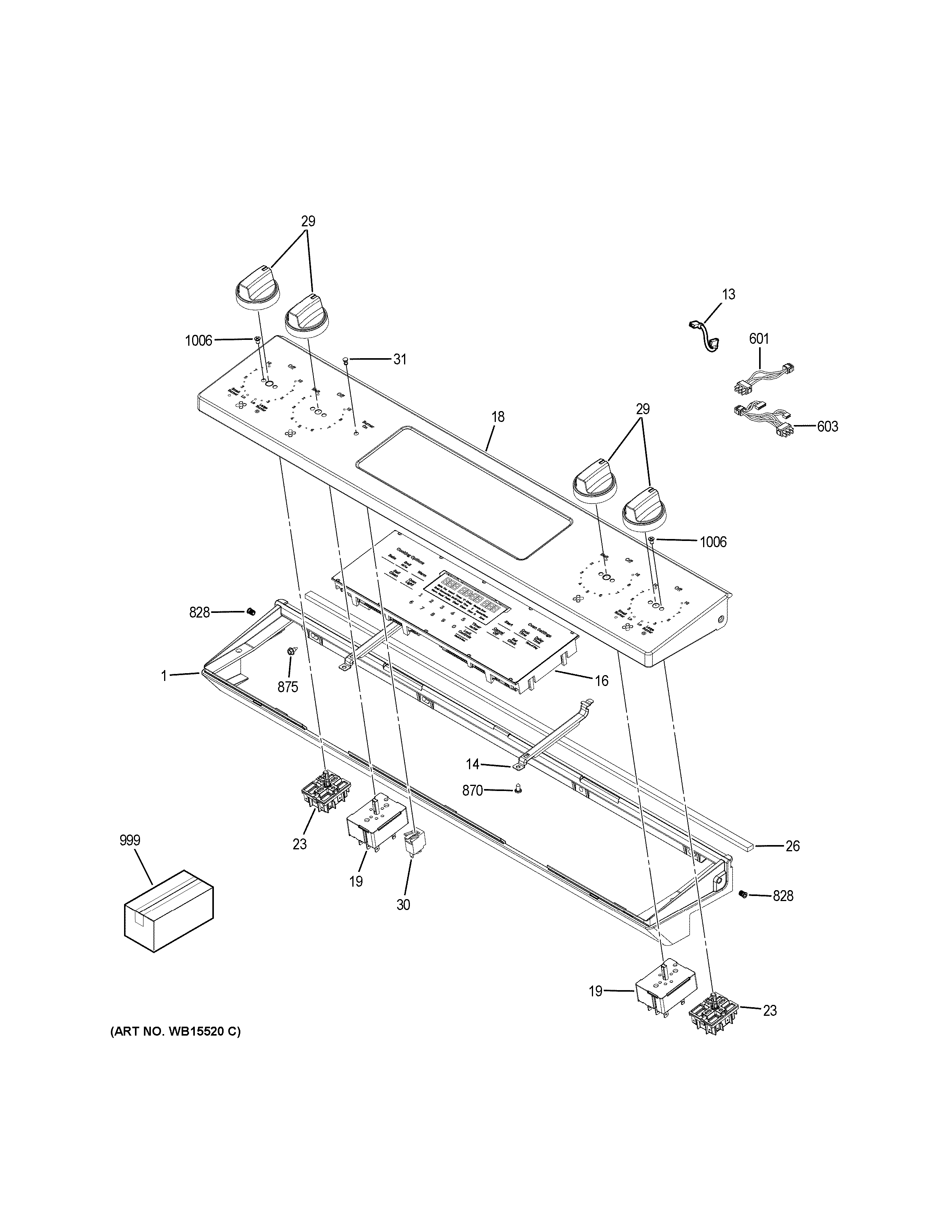

PositionProduct
1WB07X47587 GE Control Panel Trim Kit
13WB18X30704 GE Jumper
14WB34X29472 GE Control Bracket
16WB27X32140 GE Oven Control and Overlay Assembly
18WB07X30058 GE Control Panel Overlay Assembly
19WB24T10011 GE Oven Infinite Switch
23WB24X25013 GE Oven Control Infinite Switch
26WB35X29473 GE Oven Gasket Control Panel
29WB03X34871 GE Oven Stainless Infinite Knob
30WB25X20005 GE Oven Light Indicator Pilot
31WB25X24023 GE Oven Indicator Light Lens
601WB18X30745 GE 14 Ga Green Lead Wire
603WB18X32703 GE Switch Harness Infinite
828WB01X29474 GE Oven Plug Insert
870WB1X5904 GE Oven Screw 8-18 BA
875WH2X930 GE Screw
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999INSTRUCTION INSTALL
999MANUAL U&C TIP SHEET
999PM INSTRUCTION CLEANING
999PM INSTRUCTIONS INSTALL
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
