JS760DL2WW CONTROL PANEL

JS760DL2WW CONTROL PANEL

Written by

in

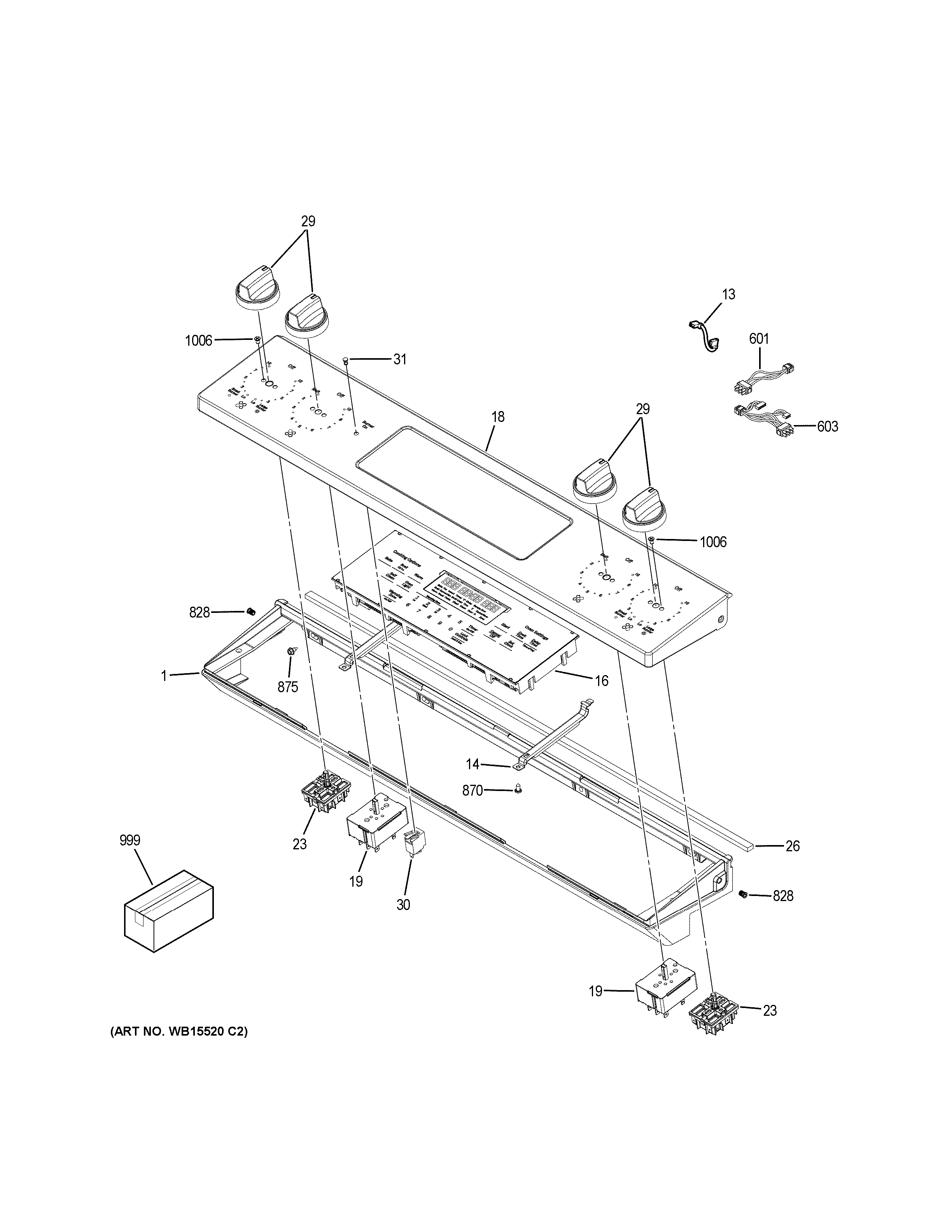

JS760DL2WW CONTROL PANEL

Products

PositionProduct
1WB07X29174 GE Control Panel Trim Assembly
13WB18X30704 GE Jumper
14WB34X29472 GE Control Bracket
16WB27X33141 GE Oven Control Overlay Assembly
18WB07X30060 GE Oven Control Panel Overlay Assembly
19WB24T10011 GE Oven Infinite Switch
23WB24X25013 GE Oven Control Infinite Switch
26WB35X29473 GE Oven Gasket Control Panel
29WB03X29486 GE Knob Assembly
30WB25X20005 GE Oven Light Indicator Pilot
31WB25X24023 GE Oven Indicator Light Lens
601WB18X30745 GE 14 Ga Green Lead Wire
603INFINITE SWITCH HARNESS WIRE
828WB01X29474 GE Oven Plug Insert
870WB1X5904 GE Oven Screw 8-18 BA
875WH2X930 GE Screw
999PM INSTRUCTION CLEANING
999MANUAL U&C TIP SHEET
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
