JS760FL1DS CONTROL PANEL

JS760FL1DS CONTROL PANEL

Written by

in

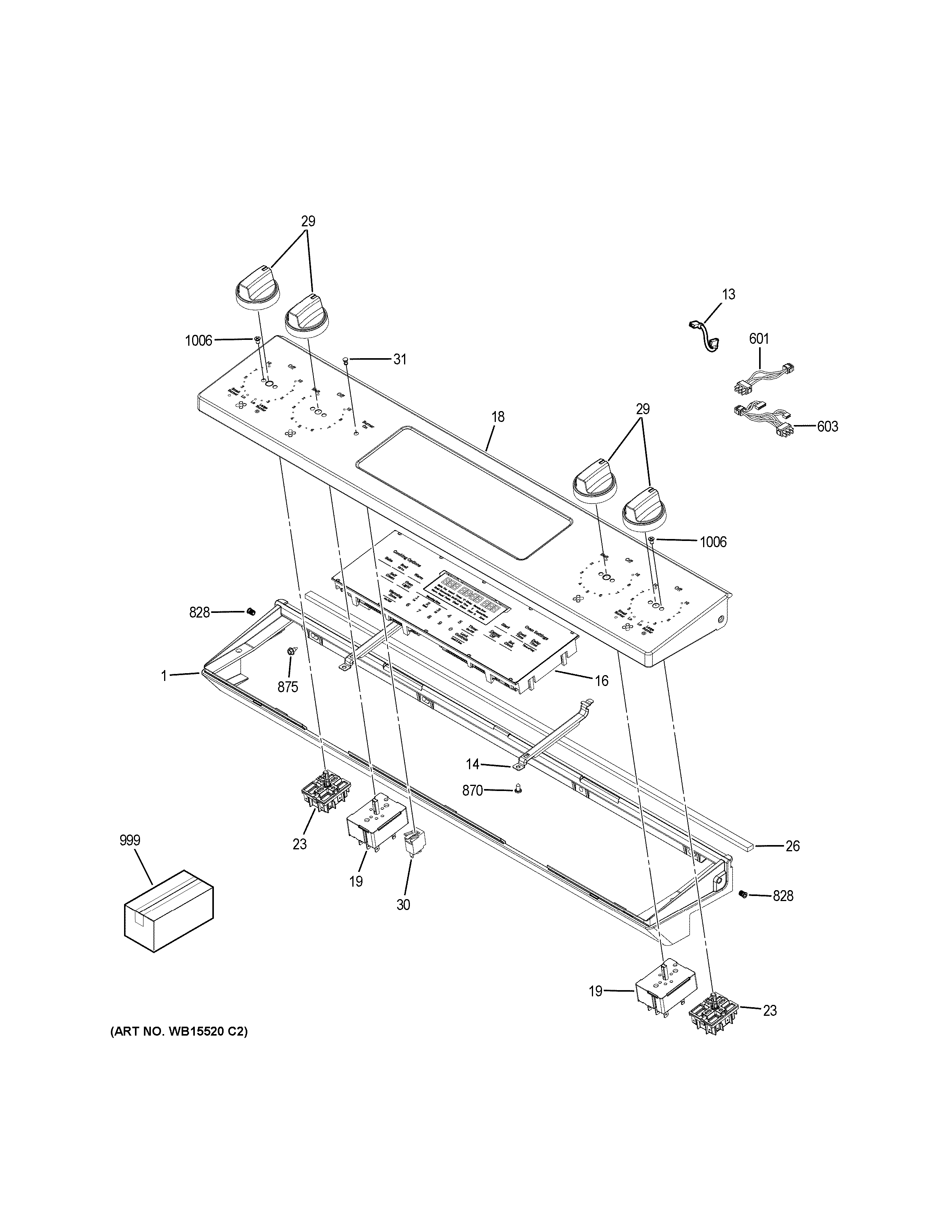

JS760FL1DS CONTROL PANEL

Products

PositionProduct
1WB07X47587 GE Control Panel Trim Kit
13WB18X30704 GE Jumper
14WB34X29472 GE Control Bracket
16WB27X33138 GE Oven Overlay Control Assembly
18WB07X31103 GE Control Panel Trim Assembly
19WB24T10011 GE Oven Infinite Switch
23WB24X25013 GE Oven Control Infinite Switch
26WB35X29473 GE Oven Gasket Control Panel
29WB03X29480 GE Oven 069B Assembly
30WB25X20005 GE Oven Light Indicator Pilot
31WB25X24023 GE Oven Indicator Light Lens
601WB18X29582 GE 14 Ga Green Lead Wire
603WB18X29155 GE Infinite Wire Harness
828WB01X29474 GE Oven Plug Insert
870WB1X5904 GE Oven Screw 8-18 BA
875WH2X930 GE Screw
999PM INSTRUCTION CLEANING
999PM QUICK GUIDE
999PM INSTRUCTIONS INSTALL
999MANUAL U&C TIP SHEET
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
