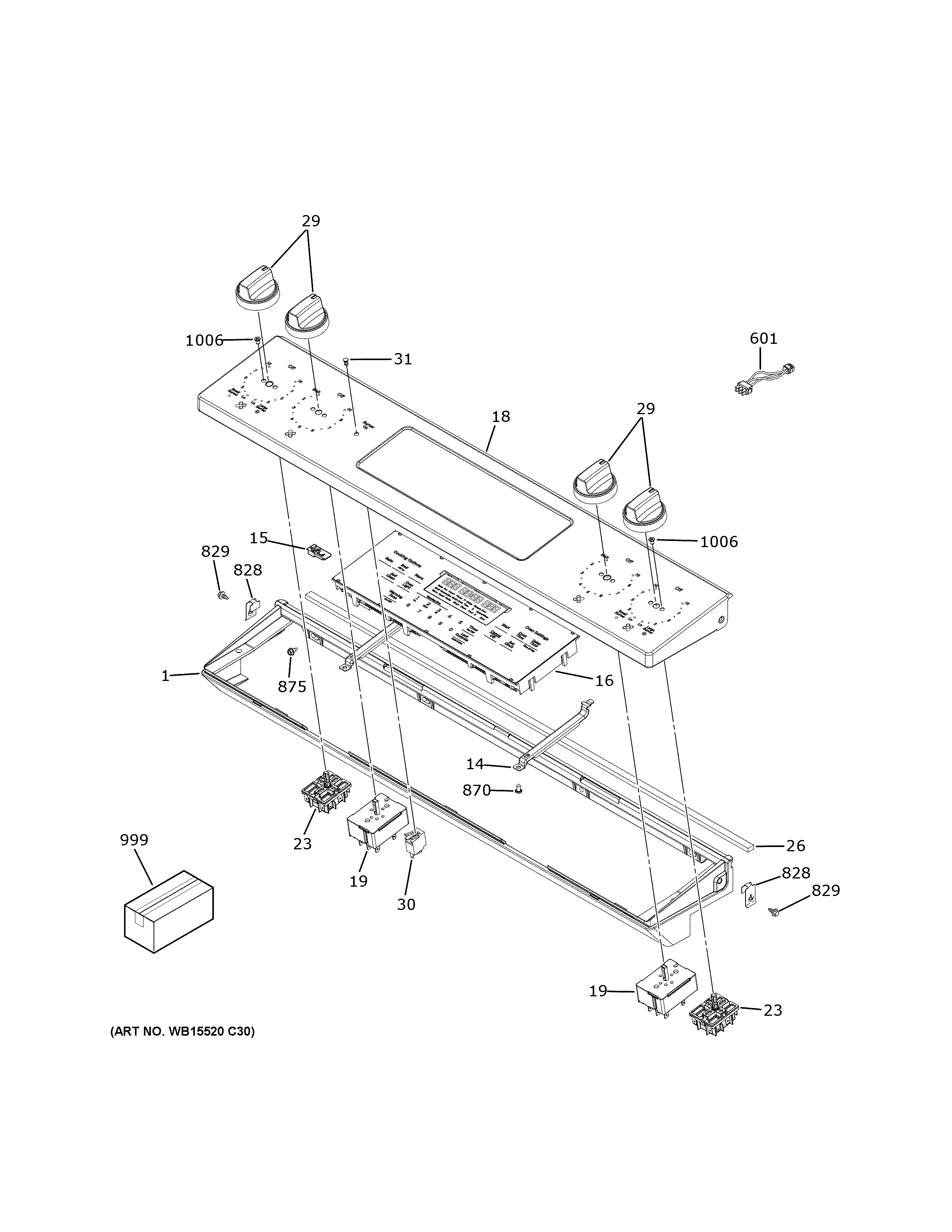

JS760FP7DS CONTROL PANEL

JS760FP7DS CONTROL PANEL

Written by

in

JS760FP7DS CONTROL PANEL

Products

PositionProduct
1CONTROL PANEL TRIM
14WB34X29472 GE Control Bracket
15WH22X29461 GE A3 WiFi Board
16WB27X47794 GE Control Faceplate
18BLACK SLATE CONTROL PANEL OVERLAY
19WB24T10022 GE Oven Infinite Switch
23WB24X25013 GE Oven Control Infinite Switch
26WB35X29473 GE Oven Gasket Control Panel
29WB03X29480 GE Oven 069B Assembly
30WB25X20005 GE Oven Light Indicator Pilot
31WB25X24023 GE Oven Indicator Light Lens
601WB18X30745 GE 14 Ga Green Lead Wire
828C CLIP
829WB01X46151 GE Screw T15 3/4" 8-18
870WB1X5904 GE Oven Screw 8-18 BA
875WH2X930 GE Screw
999PM OWNERS MANUAL
999INSTRUCTION INSTALL
999PM INSTRUCTION CLEANING
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
