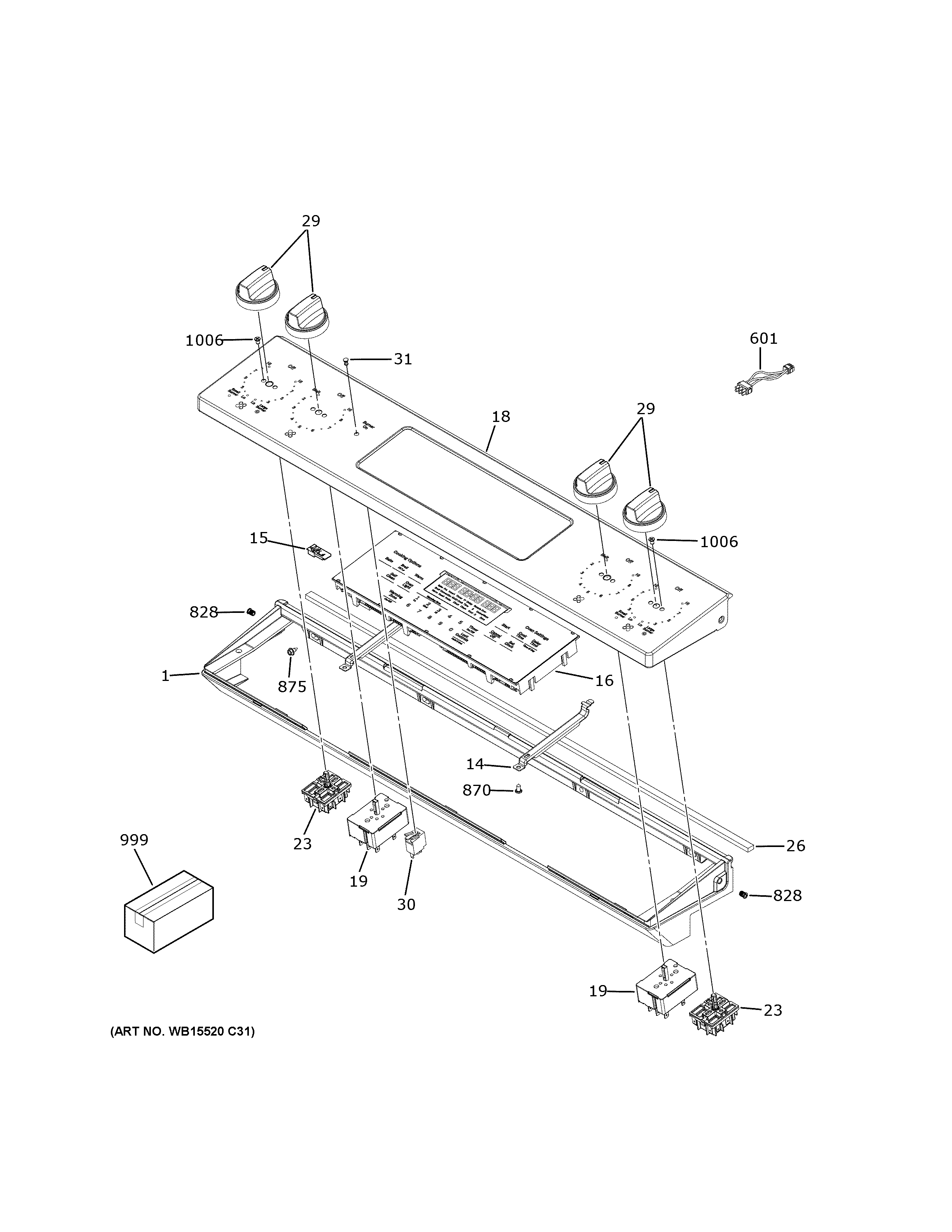

JS760SP5SS CONTROL PANEL

JS760SP5SS CONTROL PANEL

Written by

in

JS760SP5SS CONTROL PANEL

Products

PositionProduct
1WB07X47587 GE Control Panel Trim Kit
14WB34X29472 GE Control Bracket
15WH22X29461 GE A3 WiFi Board
16WB27X47794 GE Control Faceplate
18WB07X41649 GE Stainless Steel Control Panel Overlay
19WB24T10022 GE Oven Infinite Switch
23WB24X25013 GE Oven Control Infinite Switch
26WB35X29473 GE Oven Gasket Control Panel
29WB03X34871 GE Oven Stainless Infinite Knob
30WB25X20005 GE Oven Light Indicator Pilot
31WB25X24023 GE Oven Indicator Light Lens
601WB18X30745 GE 14 Ga Green Lead Wire
828WB01X29474 GE Oven Plug Insert
870WB1X5904 GE Oven Screw 8-18 BA
875WH2X930 GE Screw
999PM INSTRUCTIONS INSTALL
999PM INSTALL INSTRUCTIONS
999INSTRUCTION INSTALL
999MANUAL U&C TIP SHEET
999PM INSTRUCTION CLEANING
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
