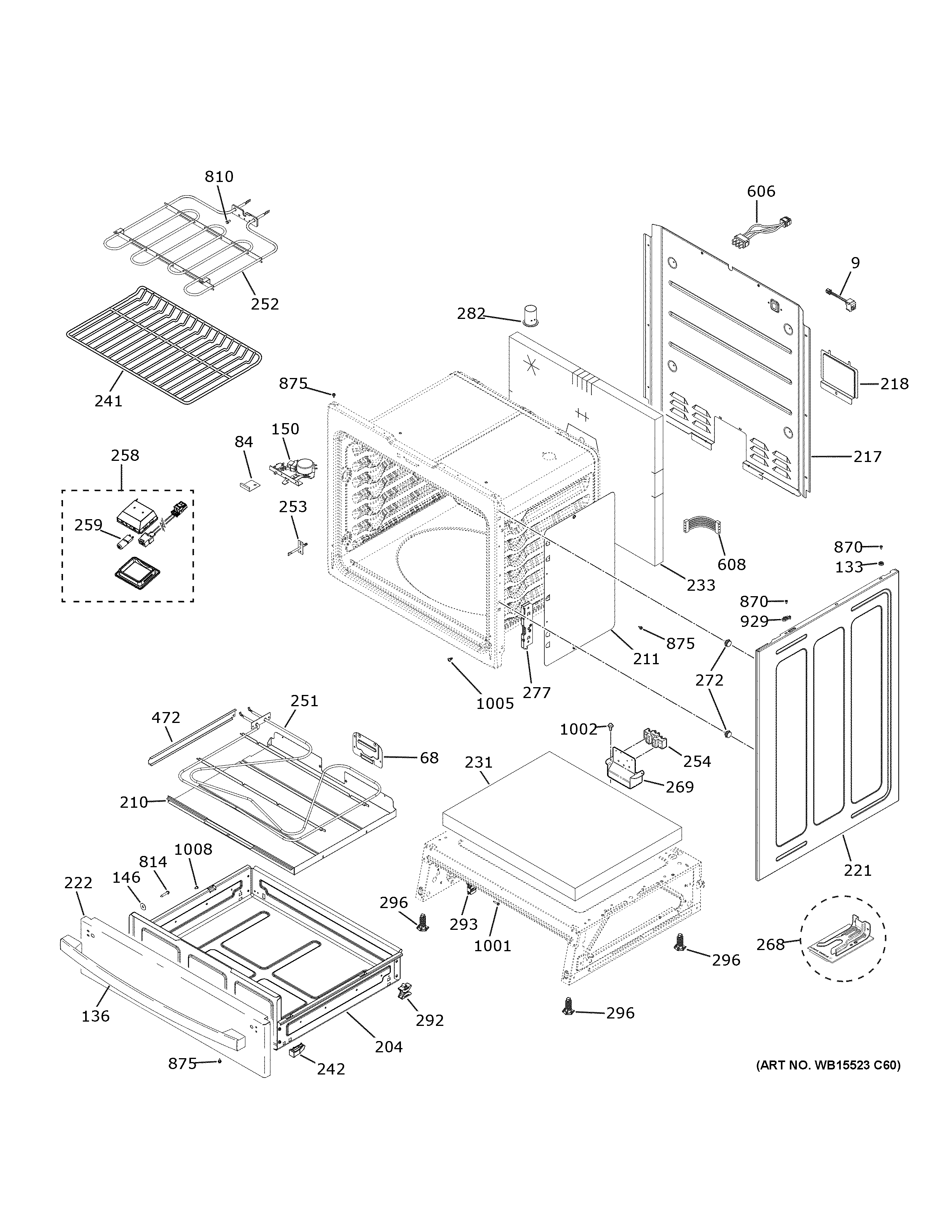

JS760SP7SS BODY PARTS

JS760SP7SS BODY PARTS

Written by

in

JS760SP7SS BODY PARTS

Products

PositionProduct
9WB18X38667 GE RJ45 Internal Connection Harness
68PLATE COVER (BK)
84WB02T10118 GE Oven Clip Seam
133WB02X29562 GE Range Top Bumper
136WB15X42631 GE Handle and Endcap Assembly
146WB1K5117 GE Oven Washer
150WB10X29077 GE Oven Latch Assembly
204WB63X29469 GE Oven Drawer Body Assembly
210WB02T10509 GE Bake Element Reflector Pan
211WB34X29158 GE Side Insulation Retainer
217WB34X29069 GE Oven Main Wire Cover
218WB02T10560 GE Range Terminal Cover Assembly
221WB63X28679 GE Oven Side Panel
222WB56X29156 GE Oven Drawer Panel Stainless Steel
231WB35X29643 GE Oven Bottom Insulation
233WB35X29074 GE Oven Back Insulation
241WB48T10063 GE Oven Rack
242WB02X29072 GE Oven Drawer Wedge
251WB44X45499 GE Oven Bake Element
252WB44X45491 GE Broil Element
253WB21X22134 GE Oven Sensor Assembly
254WB17X38438 GE Terminal Block Assembly
258WB25X42688 GE Halogen Lamp Assembly
259WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
269WB17T10021 GE Oven Mount Terminal Block
272WB02T10034 GE Oven Body Side Support
277WB10T10068 GE Oven Hinge Receiver
282WB38X33651 GE Vent Tube
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
472WB49T10007 GE Side Reflector
606WB18X41654 GE Temperature Sensor Harness
608WB18X30731 GE Hidden Bake Harness Wire
810WB01M10002 GE Oven Screw
814WB1X1258 GE Oven Screw
870WB1X5904 GE Oven Screw 8-18 BA
875WH2X930 GE Screw
929WB02T10026 GE Oven Strike Maintop
1001GEN WH02X0941
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1005WB01T10008 GE Oven Screw 10-32
1008WB1X5364 GE Oven Mounting Screw
