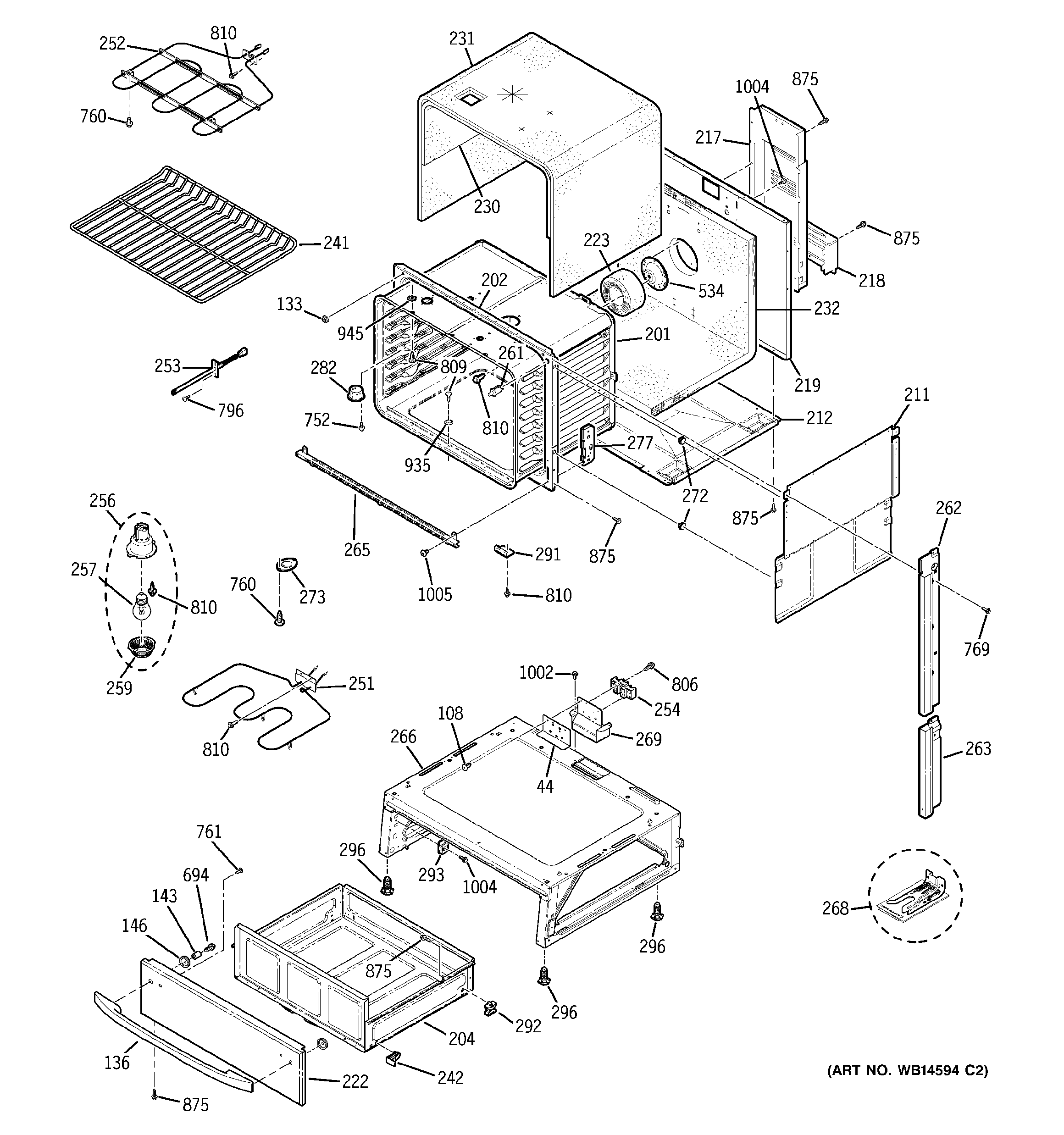

JS905BK4BB BODY PARTS

JS905BK4BB BODY PARTS

Written by

in

JS905BK4BB BODY PARTS

Products

PositionProduct
44WB02T10242 GE Bracket
108WB1X5364 GE Oven Mounting Screw
133WB01T10022 GE Oven Door Bumper
133WB01T10026 GE Oven Door Pad
133WB01T10052 GE Oven Foam Tape
136WB15T10136 GE Oven Drawer Handle
136GEN WB15T10138
143SPACER DR HANDLE
146DOOR HANDLE SPACER-BLACK
201WRAPPER OVN CAV UPR
202WB63T10083 GE Front Lower Frame
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
217WB34K10049 GE Oven Rear Cover Wire
218WB34T10054 GE Oven Right Rear Lower Cover Wire
219WB02X20948 GE Oven Back Insulation Retainer
222GEN WB56T10174
222GEN WB56T10173
230WB35T10126 GE Oven Insulation Top
231WB35T10074 GE Oven Lower Insulation
232WB35T10090 GE Oven Back & Bottom Insulation
241WB48T10021 GE Oven Rack
242WB48T10068 GE Oven Wedge Drawer
251WB44K10009 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
254WB17T10011 GE Oven Terminal Block
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
261WB24T10160 GE Oven High AMP SPDT Switch
262WB07T10521 GE Vertical Side Light Trim (Black)
262WB07T10520 GE Right Side Trim (Black)
262WB07T10523 GE Oven Vertical Trim Side Left (White)
262WB07T10522 GE Oven Trim Vertical Side RT (White)
263TRIM VERT SIDE RT (BK)
263WB07T10635 GE Oven Vertical Side Trim RT (White)
263WB07T10636 GE Oven Vertical Side Trim (White)
263WB07T10632 GE Vertical Left Side Trim
265GEN WB07T10518
266WB63X28540 GE Base Assembly Rivet
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
269WB17T10021 GE Oven Mount Terminal Block
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
282WB28T10075 GE Oven Vent Inlet Duct
282WB38X33650 GE Vent Tube
291GEN WB02X9152
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
534WB26T10015 GE Oven Cavity Support
694WB1K5157 GE Oven Black Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5062 GE Oven Screw
761WB1K5029 GE Oven Screw
761WB1K5185 GE Oven White Screw
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
769WB1X500D GE Oven Screw Package
796GEN WB01X1178
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
