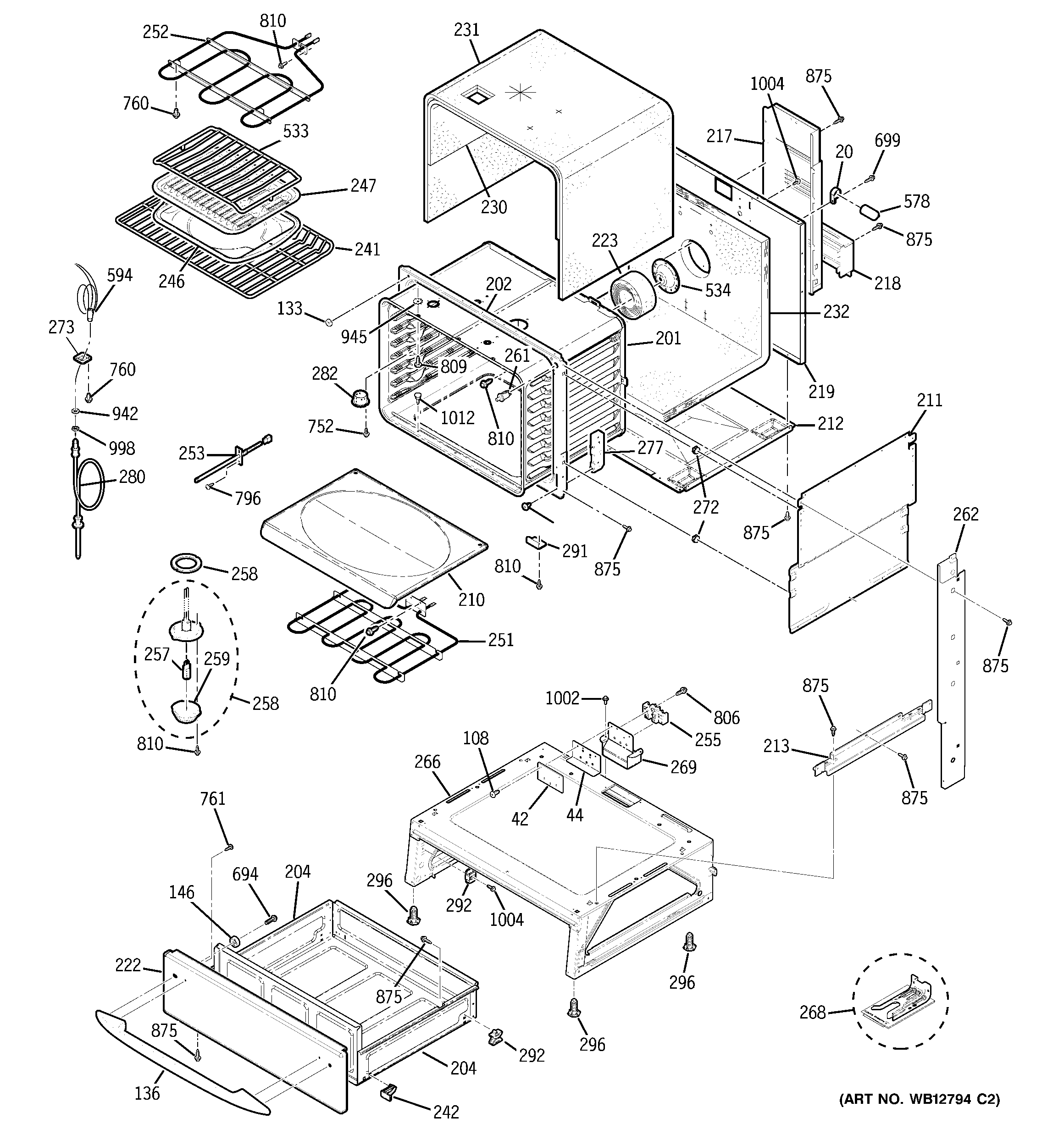

JS968TF3WW BODY PARTS

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
20GEN WB02K5238
20WB02T10046 GE Oven Crystal Retainer
42BARRIER HEAT
44WB02T10242 GE Bracket
108WB1X5364 GE Oven Mounting Screw
133WB03T10156 GE Oven Door Bumper
133WB01T10052 GE Oven Foam Tape
133WB01T10022 GE Oven Door Bumper
136DRAWER HANDLE WHITE
146SPACER DR HANDLE
201WRAPPER OVEN CAV ASSY LO
202WB63T10083 GE Front Lower Frame
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
210WB63T10034 GE Oven Bottom
211GEN WB02K5306
212RETAINER INSLN BTM
213GEN WB02K10050
217WB34K10049 GE Oven Rear Cover Wire
218WB34T10054 GE Oven Right Rear Lower Cover Wire
219WB02X20948 GE Oven Back Insulation Retainer
222PANEL DRAWER
230GEN WB35T10073
231WB35T10074 GE Oven Lower Insulation
232WB35T10090 GE Oven Back & Bottom Insulation
241RACK OVEN
242WB48T10068 GE Oven Wedge Drawer
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K10008 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
255WB17T10011 GE Oven Terminal Block
257WB49X29679 GE Range Halogen Bulb Kit
258GEN WB25T10026
258GEN WB04T10021
259WB25T10027 GE Oven Lens Lamp
261GEN WB24T10065
262GEN WB07T10396
262GEN WB07T10395
266BASE RIVET ASSY
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
269TERMINAL BOX
272WB02T10034 GE Oven Body Side Support
273GEN WB02X8309
273PROBE COVER
273GEN WB02K5365
277GEN WB10T10053
280WB20T10024 GE Oven Thermistor Probe
282WB28T10075 GE Oven Vent Inlet Duct
282WB38X33650 GE Vent Tube
291GEN WB02T10146
292WB48T10013 GE Oven Drawer Support
292WB02X33180 GE Oven Drawer Glide
296WB02X10521 GE Oven Leveling Leg
296GEN WB01M0018
533WB48X5108 GE Oven Roasting Rack
534WB26T10015 GE Oven Cavity Support
578CAPACITOR MOTOR
594GEN WB08T10018
694WB01T10066 GE Oven Screw 10-16 XC02
694WB1K5157 GE Oven Black Screw
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5062 GE Oven Screw
761WB1K5185 GE Oven White Screw
796WB1K5116 GE Oven Screw
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
