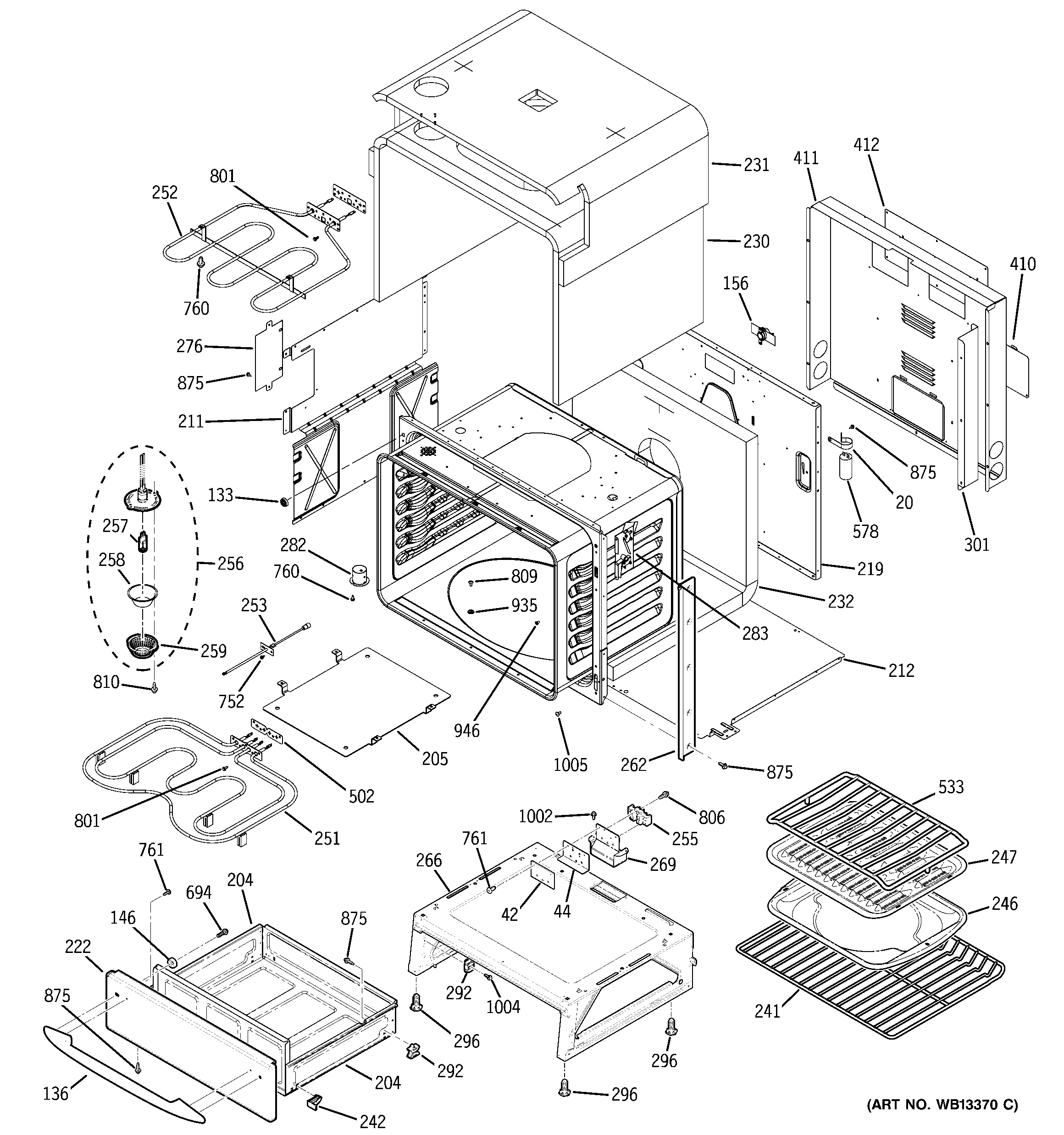

JS998TH1WW BODY PARTS

JS998TH1WW BODY PARTS

Written by

in

JS998TH1WW BODY PARTS

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
42BARRIER HEAT
44WB02T10242 GE Bracket
133WB01T10052 GE Oven Foam Tape
133WB01T10022 GE Oven Door Bumper
136GEN WB15T10067
146DOOR HANDLE SPACER-BLACK
156WB24T10105 GE Oven Runaway TCO
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
205GEN WB02T10199
211GEN WB02T10220
211WB63T10043 GE Cabinet Side
212RETAINER INSLN BTM
219GEN WB02T10201
222PANEL DRAWER
230GEN WB35T10096
231GEN WB35T10095
232GEN WB35T10097
241GEN WB48T10038
242WB48T10068 GE Oven Wedge Drawer
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44T10048 GE Oven Dual Bake Element
252WB44T10047 GE Oven Broil Element 2500W
253WB23T10020 GE Oven Sensor Assembly
255WB17T10011 GE Oven Terminal Block
256GEN WB08T10028
257WB49X29679 GE Range Halogen Bulb Kit
258GEN WB25T10035
259WB25T10027 GE Oven Lens Lamp
262GEN WB07T10396
262GEN WB07T10395
266BASE RIVET ASSY
269GEN WB34T10082
276GEN WB02T10210
282WB38X33650 GE Vent Tube
283GEN WB15T10115
283GEN WB15T10099
292WB02X33180 GE Oven Drawer Glide
292WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
301GEN WB02T10240
410GEN WB02T10234
411GEN WB02T10235
412GEN WB02T10237
502GEN WB04T10034
533WB48X5108 GE Oven Roasting Rack
578CAPACITOR MOTOR
694WB01T10066 GE Oven Screw 10-16 XC02
694WB1K5157 GE Oven Black Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5185 GE Oven White Screw
761WB1X5364 GE Oven Mounting Screw
761WB1K5062 GE Oven Screw
801GEN WB01T10088
801WB1M1 GE Oven Screw
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
946WB01T10084 GE Screw 8-32 x .343 Truss
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
