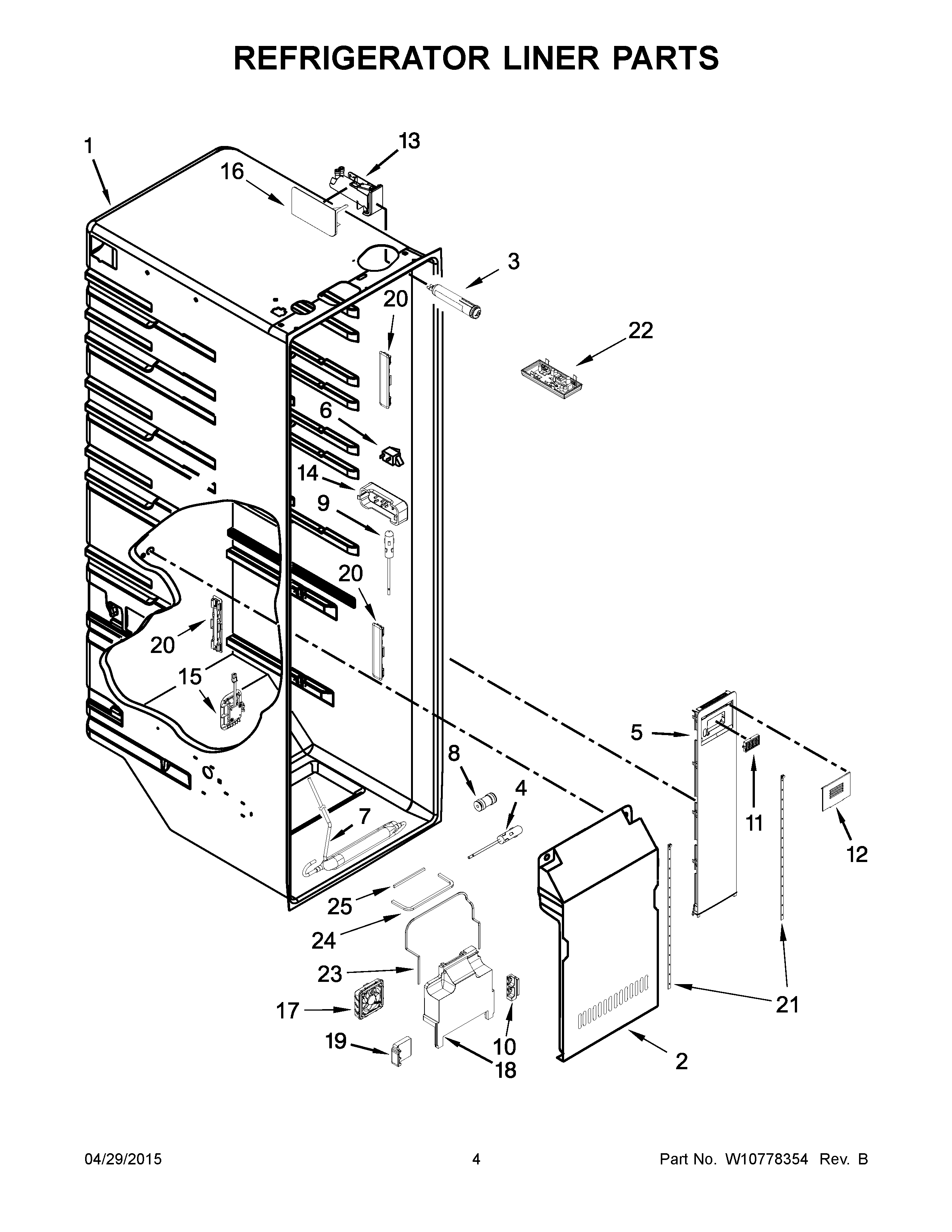

JSC23C9EEM00 03 – REFRIGERATOR LINER PARTS

JSC23C9EEM00 03 – REFRIGERATOR LINER PARTS

Written by

in

JSC23C9EEM00 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2EVAPORATOR COVER
3MAY W10569758
4THERMISTOR, EVAPORATOR FAN
5MAY W10752268
6MAY W10656773
7MAY W10538994
8CONNECTOR, UNION
9THERMISTOR
10MAY W10223364
11FILTER, AIR
12MAY W10357649
13MAY W10394053
14COVER, THERMISTOR
15MAY W10637153
16MAY W10300482
17MAY W10723753
18MAY W10780940
19MAY W10223366
20MAY W10710826
21MAY W10727376
22MAY W10724473
23MAY W10260462
24MAY W10387387
25MAY W10394945
