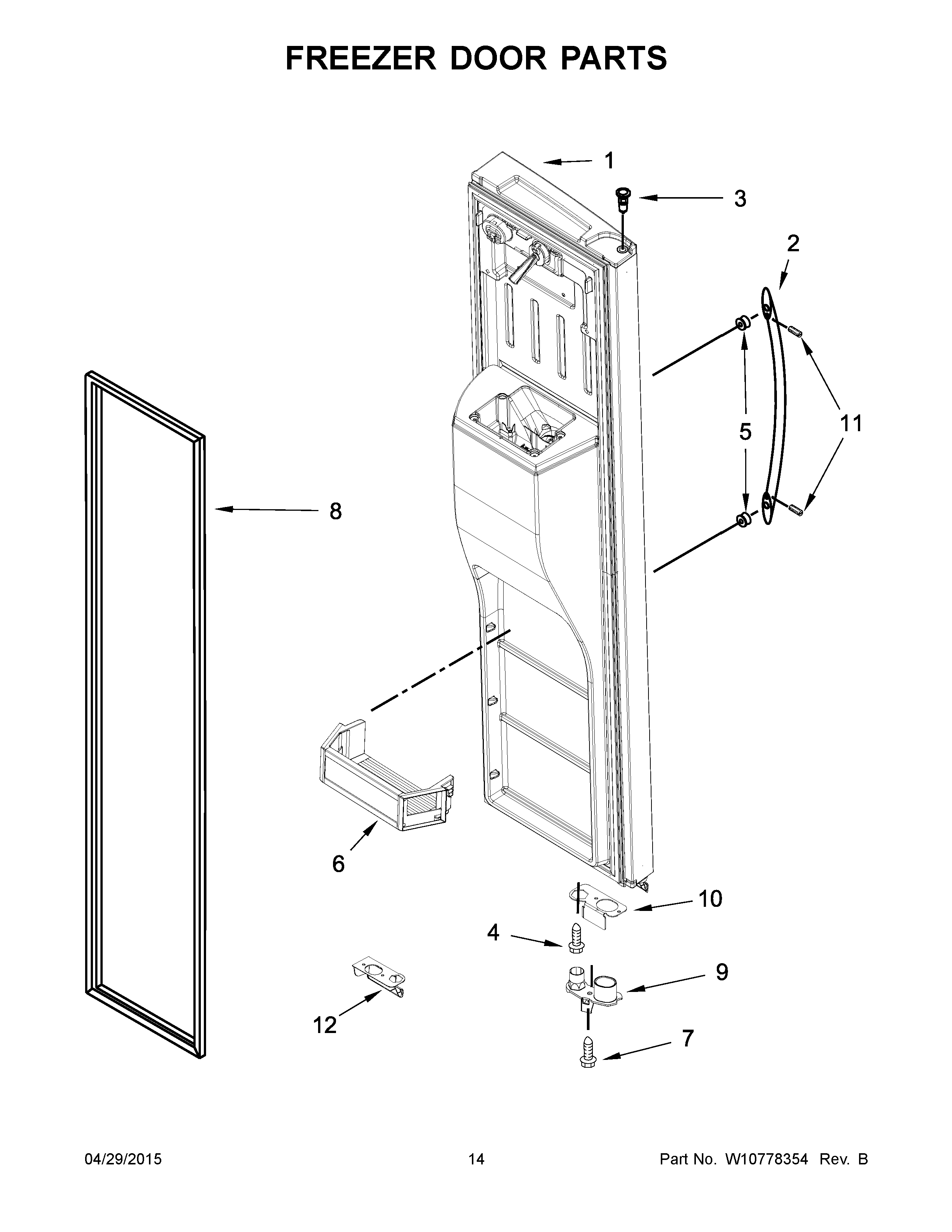

JSC23C9EEM00 08 – FREEZER DOOR PARTS

JSC23C9EEM00 08 – FREEZER DOOR PARTS

Written by

in

JSC23C9EEM00 08 – FREEZER DOOR PARTS

Products

PositionProduct
1MAY W10752121
2HANDLE, DOOR
3THIMBLE, TOP
4SCREW
5MAY W10460893
6MAY W10327583
7SCREW
8DOOR GASKET, MAGNETIC (GREY)
9DOOR CLOSER, UPPER CAM (GREY)
10BRACKET, DOOR STOP (BLACK)
11SET SCREW (SILVER)
12MAY W10632062
