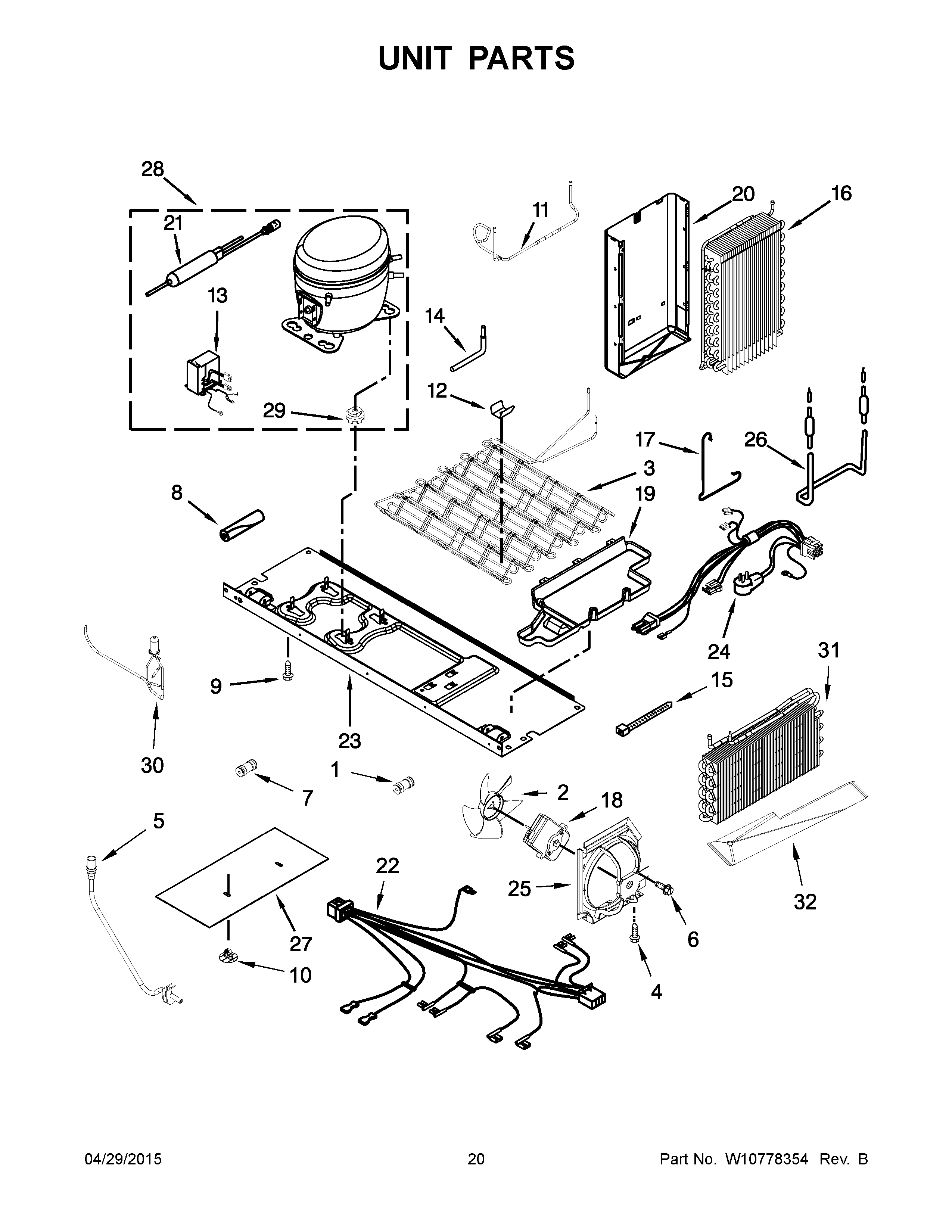

JSC23C9EEM00 11 – UNIT PARTSadmin2025-04-26T09:13:08+00:00JSC23C9EEM00 11 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | CONNECTOR, WATER TUBE |
| 2 | MAY 2225834 |
| 3 | ASSEMBLY, CONDENSER |
| 4 | MAY W10142255 |
| 5 | MAY W10223368 |
| 6 | MAY W10171469 |
| 7 | CONNECTOR, WATER |
| 8 | MAY W10303521 |
| 9 | MAY W10142287 |
| 10 | CLIP, BOTTOM COVER |
| 11 | TUBE, SUCTION |
| 12 | CLIP, CONDENSER |
| 13 | ASSEMBLY, INVERTER BOX |
| 14 | MAY 2325479 |
| 15 | TIE, WIRE |
| 16 | MAY W10239732 |
| 17 | Clip |
| 18 | MAY W10527155 |
| 19 | MAY W10713147 |
| 20 | MAY W10376319 |
| 21 | DRIER |
| 22 | MAY W10679948 |
| 23 | MAY W10680691 |
| 24 | CORD, POWER |
| 25 | BAFFLE, AIR |
| 26 | MAY W10495968 |
| 27 | COVER, UNIT BOTTOM |
| 28 | MAY W10695094 |
| 29 | MAY 2183042 |
| 30 | ASSEMBLY, VALVE BODY |
| 31 | MAY W10643261 |
| 32 | MAY W10317862 |
