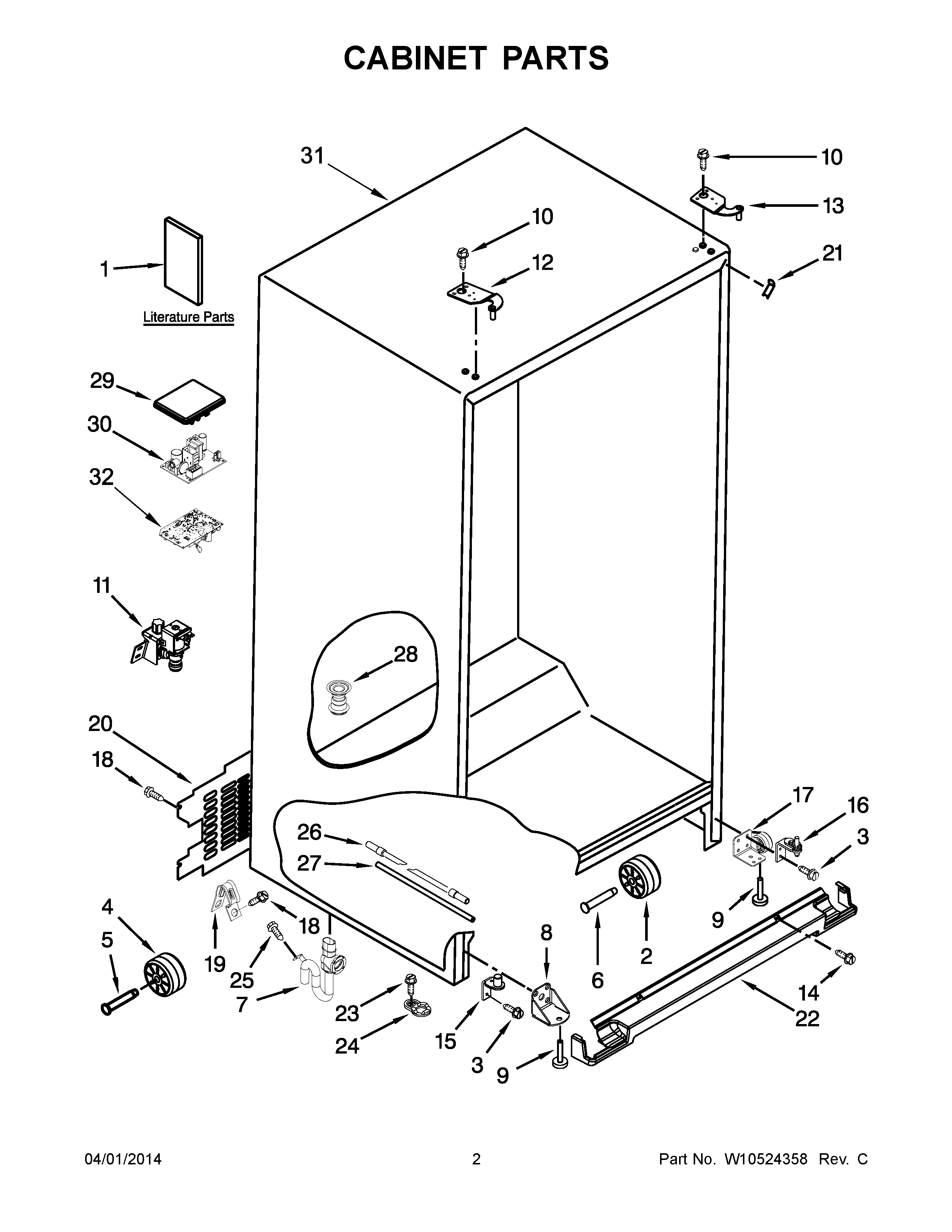

JSC24C8EAM00 02 – CABINET PARTS

Products

Position	Product
1	MAY W10444506
1	MAY W10465933
1	MAY W10487490
2	Roller
3	MAY W10297485
4	Roller (2)
5	Axle, Roller (2)
6	MAY 981125
7	TUBE, DRAIN
8	MAY W10257186
9	Brake, Foot
10	SCREW (BLACK)
11	VALVE, INLET
12	HINGE, TOP (FC) (GREY)
13	HINGE, TOP (RC) (GREY)
14	SCREW (GREY)
15	BOTTOM HINGE (FC) (GREY)
16	HINGE, ASSEMBLY (GREY)
17	ROLLER ASSEMBLY RC
18	MAY W10141645
19	MAY 549193
20	MAY W10333887
21	COVER, CORNER (GREY)
22	GRILLE (GREY)
23	MAY W10142234
24	MAY W10247903
25	MAY W10001250
26	MAY W10279882
27	MAY W10279885
28	MAY W10370680
29	LID, HV BOX
30	MAY W10235503
31	LINER (NOT A SERVICEABLE PART)
32	CONTROL, ELECTRONIC POWER SAUPPLY
