JSC24C8EAM00 03 – REFRIGERATOR LINER PARTS

JSC24C8EAM00 03 – REFRIGERATOR LINER PARTS

Written by

in

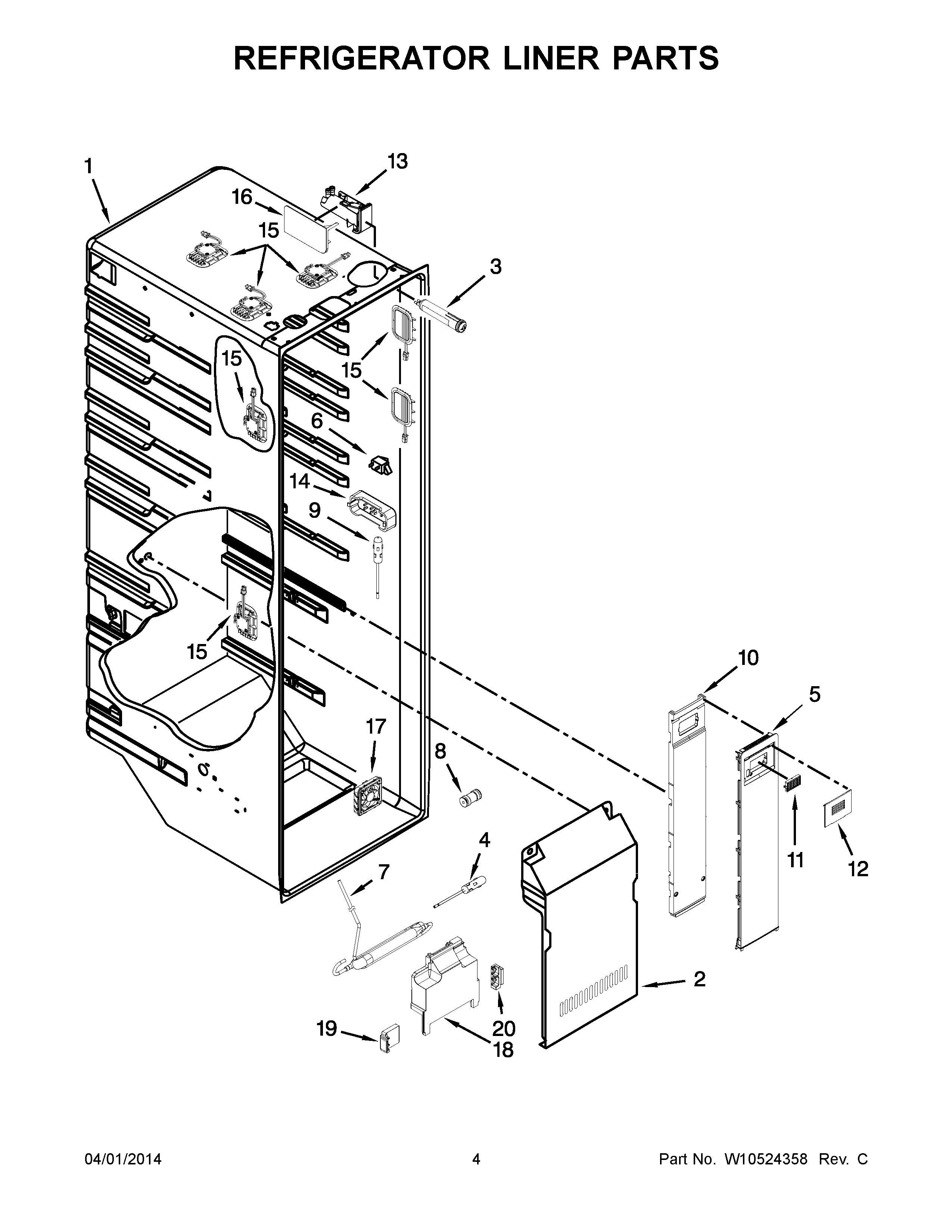

JSC24C8EAM00 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2EVAPORATOR COVER
3MAY W10569758
4THERMISTOR, EVAPORATOR FAN
5MAY W10384770
6SWITCH, LIGHT
7MAY W10538994
8CONNECTOR, UNION
9THERMISTOR
10MAY W10394423
11FILTER, AIR
12MAY W10357649
13MAY W10394053
14COVER, THERMISTOR
15MAY W10412708
16MAY W10300482
17MAY W10439624
18MAY W10451893
19MAY W10223366
20MAY W10223364
