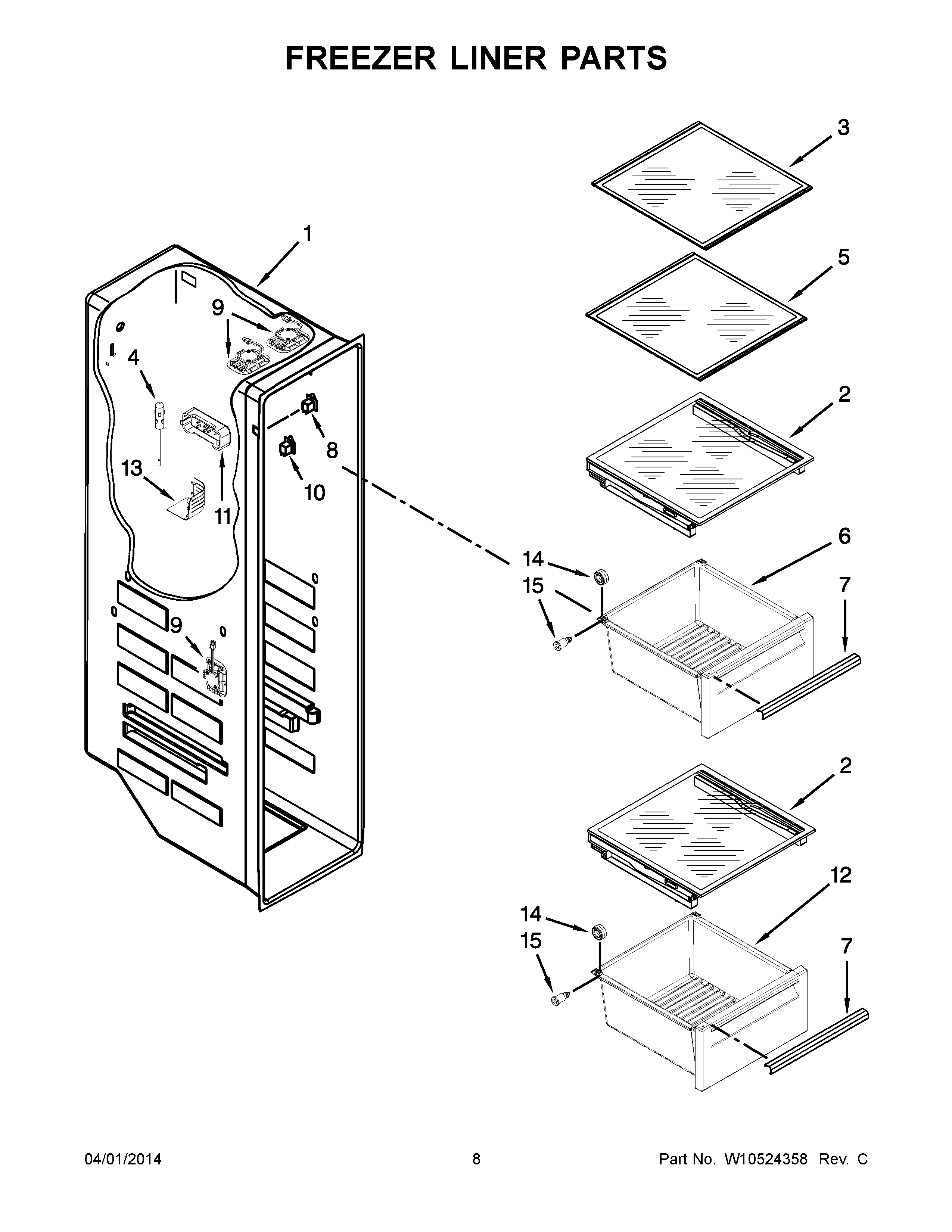

JSC24C8EAM00 05 – FREEZER LINER PARTS

JSC24C8EAM00 05 – FREEZER LINER PARTS

Written by

in

JSC24C8EAM00 05 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2COVER ASSEMBLY
3MAY W10327550
4MAY W10280386
5MAY W10327551
6MAY W10542040
7MAY W10542019
8MAY W10419177
9MAY W10412708
10MAY 12466114
11COVER, THERMISTOR
12MAY W10542039
13MAY W10294700
14MAY W10278139
15MAY W10257246
