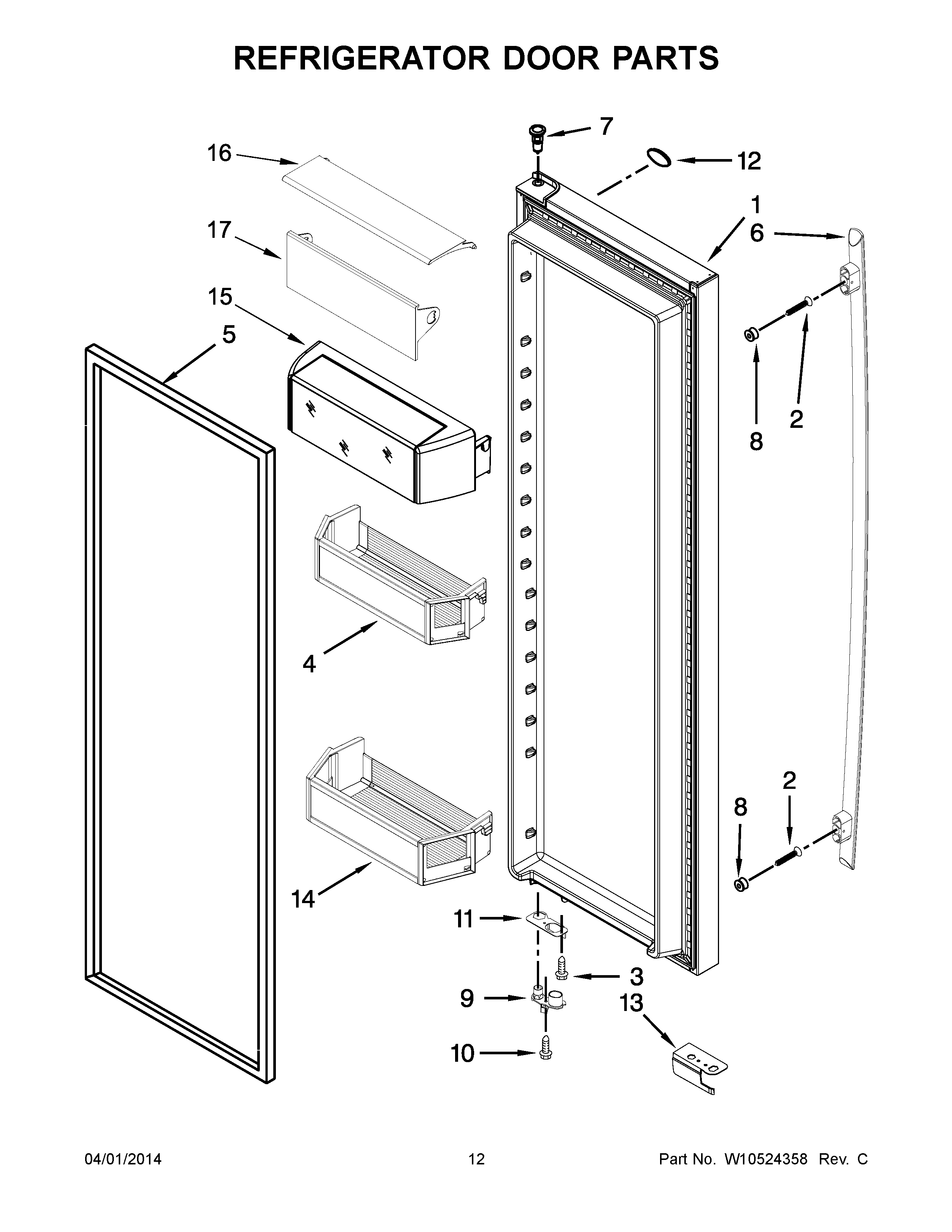

JSC24C8EAM00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY W10497146
2SCREW 8-15 X .813
3SCREW
4MAY W10327565
5DOOR GASKET, MAGNETIC (GREY)
6HANDLE, DOOR
7THIMBLE, TOP
8Stud
9DOOR CLOSER, UPPER CAM (GREY)
10SCREW
11BRACKET, DOOR STOP (BLACK)
12ASSEMBLY, BADGE (STAINLESS)
13COVER, DOOR STOP (GREY)
14MAY W10327564
15DOOR, COMPARTMENT ASSEMBLY
16LID, UTILITY BIN
17MAY W10316885
