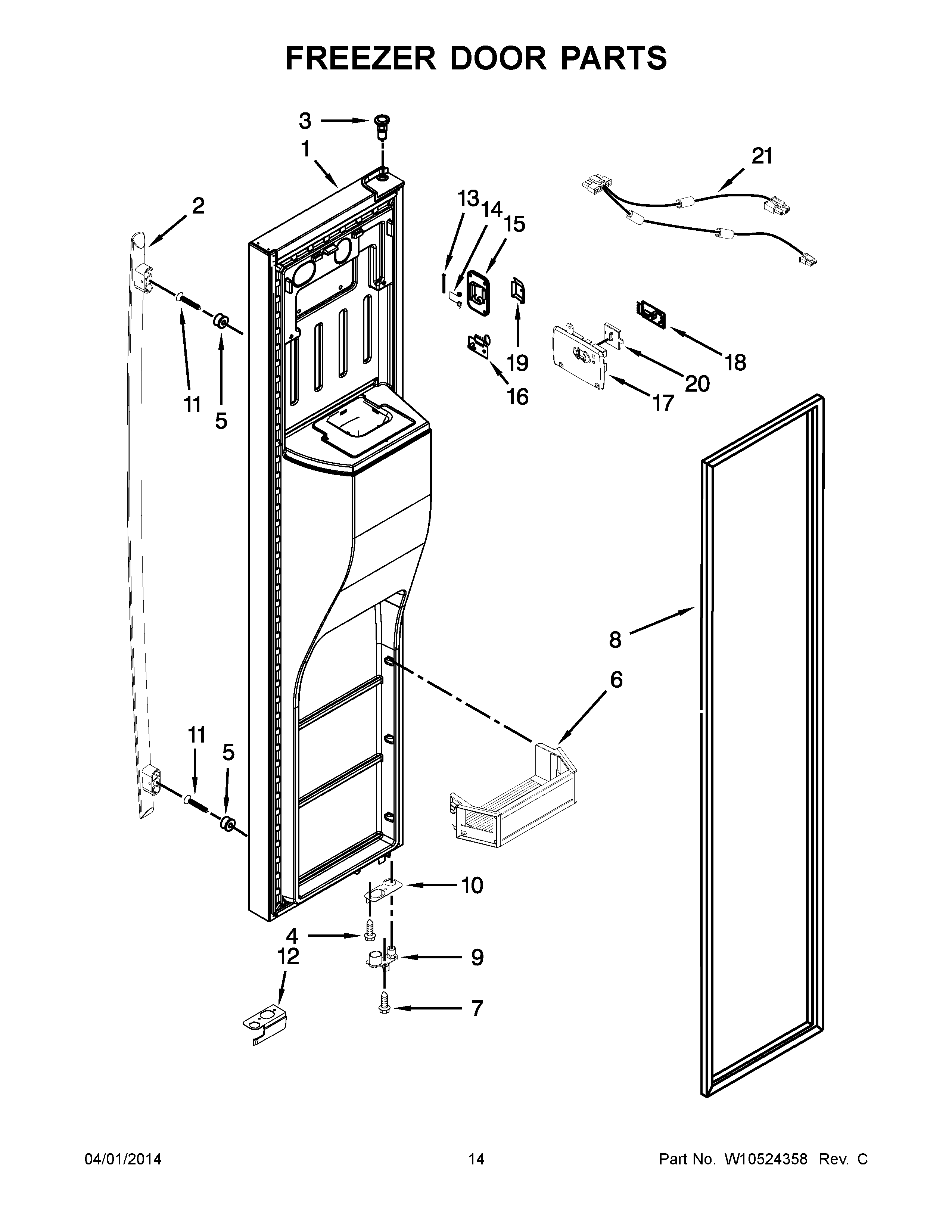

JSC24C8EAM00 08 – FREEZER DOOR PARTS

JSC24C8EAM00 08 – FREEZER DOOR PARTS

Written by

in

JSC24C8EAM00 08 – FREEZER DOOR PARTS

Products

Position	Product
1	MAY W10447151
2	HANDLE, DOOR
3	THIMBLE, TOP
4	SCREW
5	Stud
6	MAY W10327583
7	SCREW
8	DOOR GASKET, MAGNETIC (GREY)
9	DOOR CLOSER, UPPER CAM (GREY)
10	BRACKET, DOOR STOP (BLACK)
11	SCREW 8-15 X .813
12	COVER, DOOR STOP (GREY)
13	MAY W10331749
14	SPRING, DOOR
15	MAY W10258502
16	MAY W10518659
17	MAY W10258510
18	MAY W10518658
19	DOOR, EMITTER
20	MAY W10258540
21	MAY W10411699
