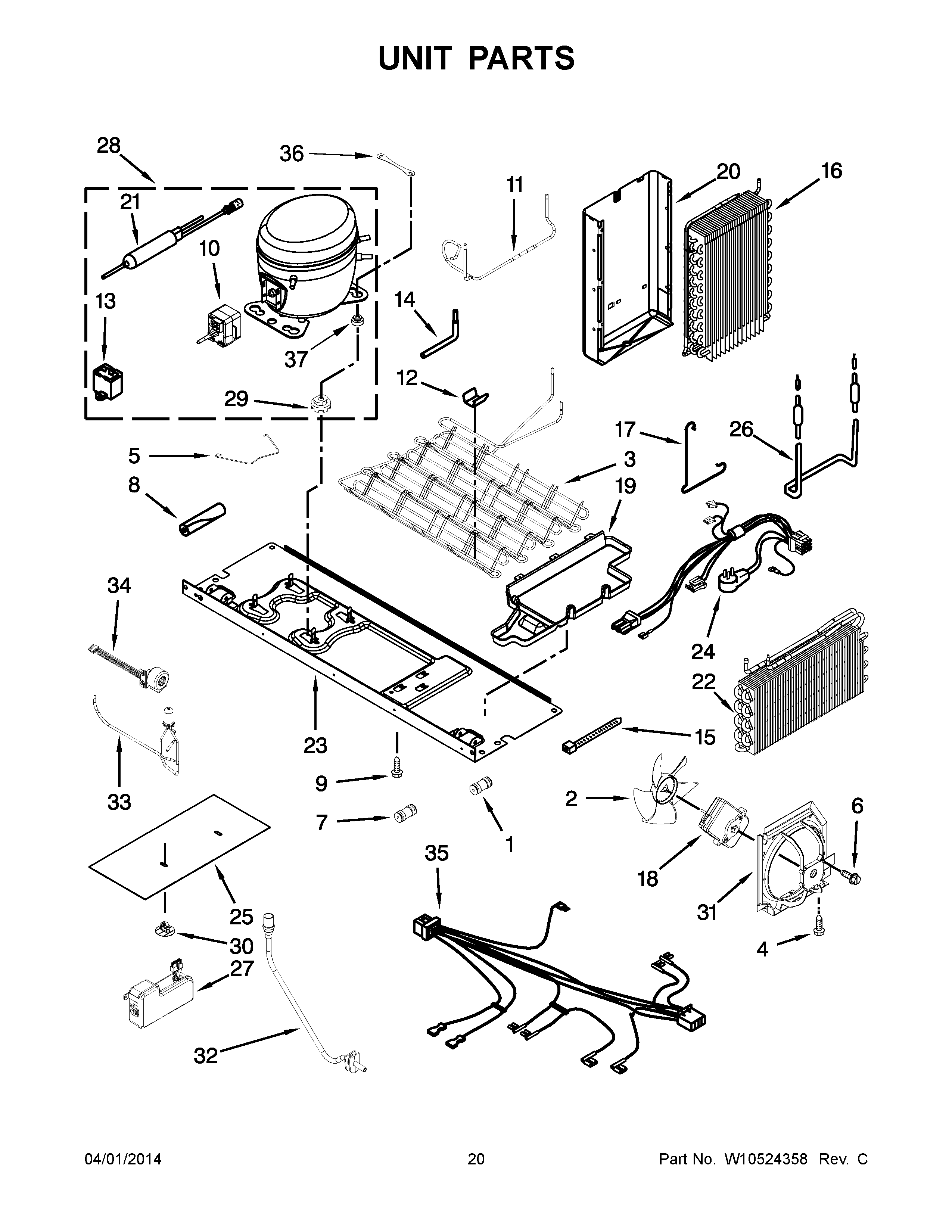

JSC24C8EAM00 11 – UNIT PARTSadmin2025-04-26T09:14:15+00:00JSC24C8EAM00 11 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | VALVE, ACCESS (1/4``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (1/2``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (3/4``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | CONNECTOR, WATER |
| 2 | Fan, Blade |
| 3 | ASSEMBLY, CONDENSER |
| 4 | SCREW, 8-32 X 5/16 |
| 5 | Clip, Retaining |
| 6 | MAY W10171469 |
| 7 | CONNECTOR, WATER TUBE |
| 8 | MAY W10303521 |
| 9 | MAY W10376166 |
| 10 | START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION) |
| 11 | TUBE, SUCTION |
| 12 | CLIP, CONDENSER |
| 13 | MAY W10350564 |
| 14 | MAY 2325479 |
| 15 | TIE, WIRE |
| 16 | MAY W10239732 |
| 17 | Clip |
| 18 | MAY W10508362 |
| 19 | MAY W10251469 |
| 20 | MAY W10343824 |
| 21 | DRIER |
| 22 | MAY W10643261 |
| 23 | BASEPAN |
| 24 | CORD, POWER |
| 25 | COVER, UNIT BOTTOM |
| 26 | MAY W10495968 |
| 27 | MAY W10356137 |
| 28 | MAY W10253005 |
| 29 | GROMMET |
| 30 | CLIP, BOTTOM COVER |
| 31 | BAFFLE, AIR |
| 32 | MAY W10223368 |
| 33 | ASSEMBLY, VALVE BODY |
| 34 | COIL, 3 WAY VALVE |
| 35 | ASSEMBLY, UNIT WIRE |
| 36 | MAY W10236396 |
| 37 | GROMMET, AIR RETURN |
