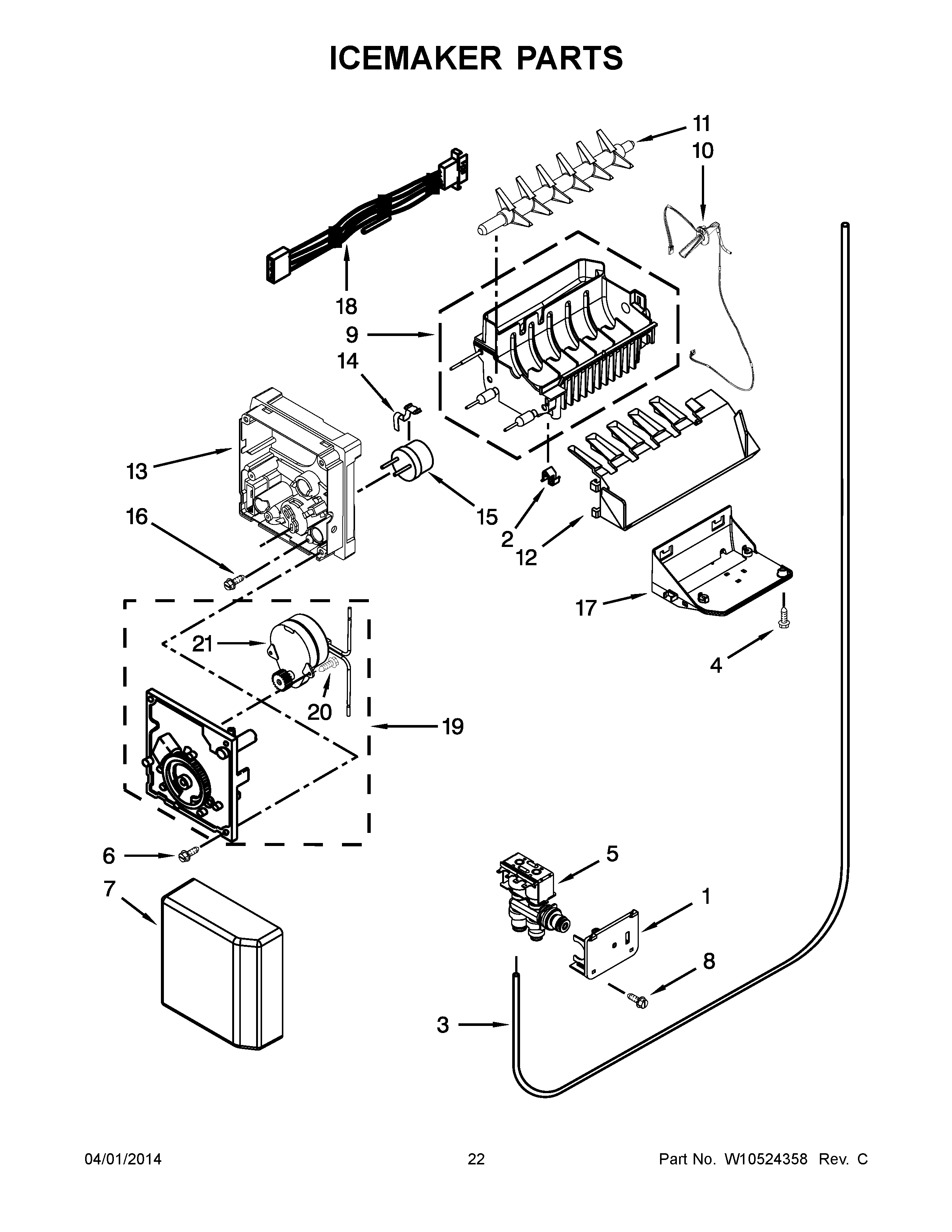

JSC24C8EAM00 12 – ICEMAKER PARTS

Products

Position	Product
1	BRACKET, WATER VALVE
2	Clip
3	MAY W10279831
5	WATER VALVE ASSEMBLY
6	MAY 489478
7	MAY W10251088
8	SCREW 8-32 X 1/2
9	ASSEMBLY, MOLD AND HEATER (ALSO ORDER No.542638)
10	FILL TUBE ASSEMBLY
11	MAY W10318644
12	STRIPPER, ICE
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement)
16	Screw (3)
17	MAY W10251080
18	MAY W10242365
19	Module Assembly (Includes Items 23 and 24)
20	MAY 489136
21	LINER (NOT A SERVICEABLE PART)
100	MAY W10251076
