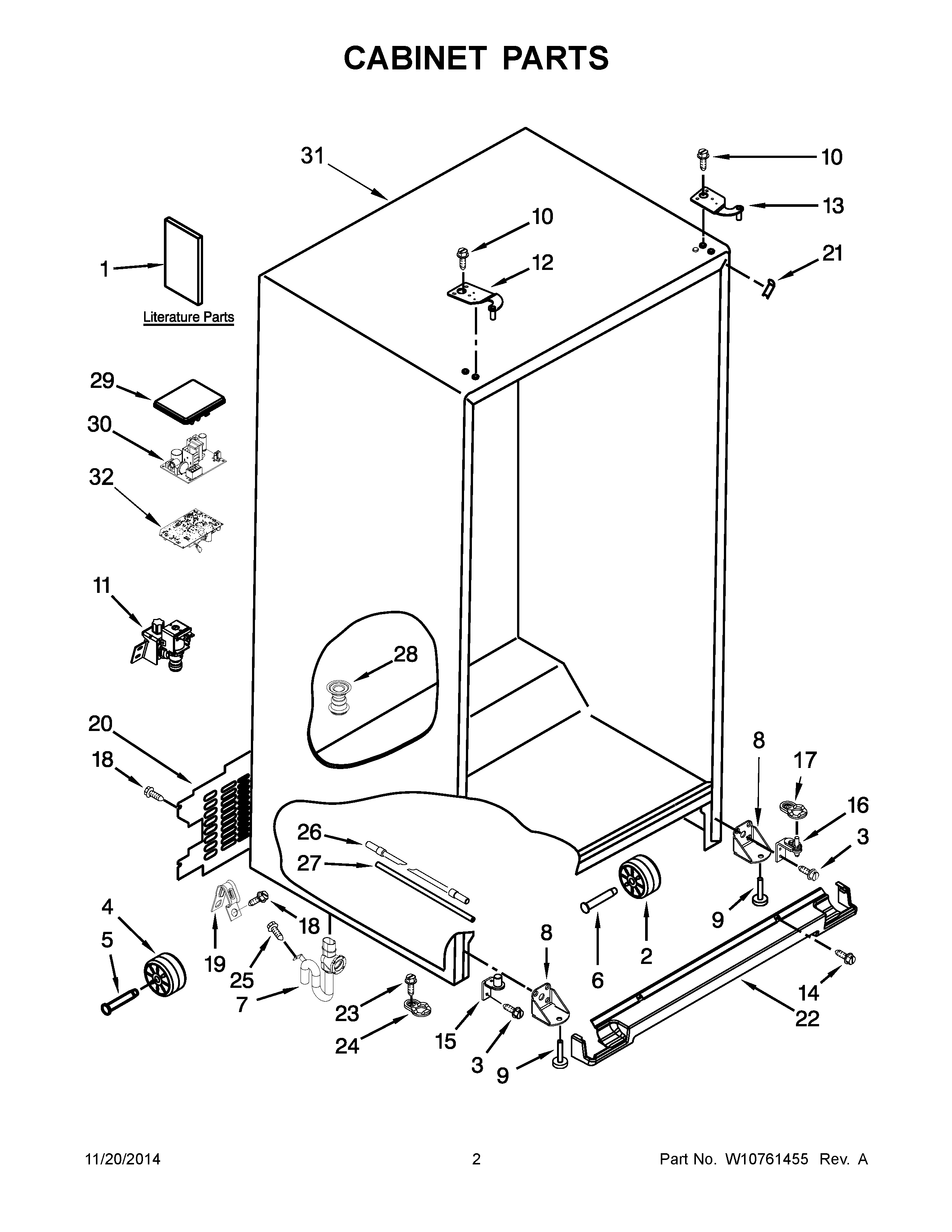

JSC24C8EAM01 02 – CABINET PARTSadmin2025-04-26T09:17:13+00:00JSC24C8EAM01 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1B | MAY W10444506 |
| 1A | MAY W10465933 |
| 1 | MAY W10487490 |
| 2 | Roller |
| 3 | MAY W10297485 |
| 4 | Roller (2) |
| 5 | Axle, Roller (2) |
| 6 | MAY 981125 |
| 7 | TUBE, DRAIN |
| 8 | MAY W10257186 |
| 9 | Brake, Foot |
| 10 | SCREW (BLACK) |
| 11 | VALVE, INLET |
| 12 | HINGE, TOP (FC) (GREY) |
| 13 | HINGE, TOP (RC) (GREY) |
| 14 | SCREW (GREY) |
| 15 | BOTTOM HINGE (FC) (GREY) |
| 16 | MAY W10666895 |
| 17 | DOOR CLOSER (RC) (GREY) |
| 19 | MAY 549193 |
| 20 | MAY W10333887 |
| 21 | COVER, CORNER (GREY) |
| 22 | MAY W10713153 |
| 23 | MAY W10142234 |
| 24 | CLOSER, DOOR (FREEZER) (GREY) |
| 25 | MAY W10001250 |
| 26 | MAY W10279882 |
| 27 | MAY W10279885 |
| 28 | MAY W10370680 |
| 29 | LID, HV BOX |
| 30 | MAY W10235503 |
| 31 | LINER (NOT A SERVICEABLE PART) |
| 32 | CONTROL, ELECTRONIC POWER SAUPPLY |
