JSC24C8EAM01 06 – MOTOR AND ICE CONTAINER PARTS
Written by
in

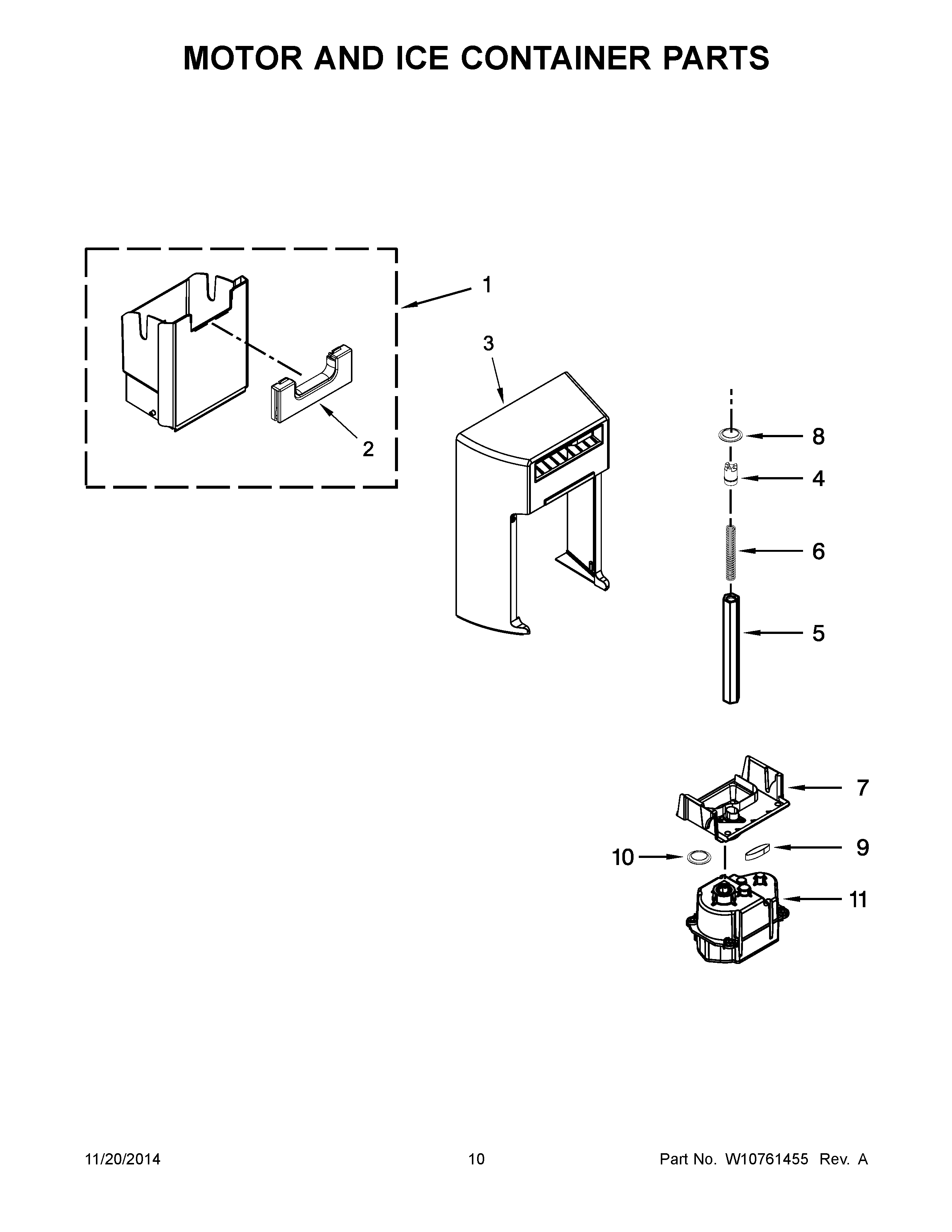

JSC24C8EAM01 06 – MOTOR AND ICE CONTAINER PARTS
Products
| Position | Product |
|---|---|
| 1 | MAY W10450624 |
| 2 | ASSEMBLY, LATCH |
| 3 | MAY W10287594 |
| 4 | Coupling, Bottom |
| 5 | SHAFT, DRIVE |
| 6 | SPRING |
| 7 | ASSEMBLY, MOUNTING PLATE |
| 8 | MAY 2198628 |
| 9 | GASKET |
| 10 | MAY 2212370 |
| 11 | DISPENSER, MOTOR |
