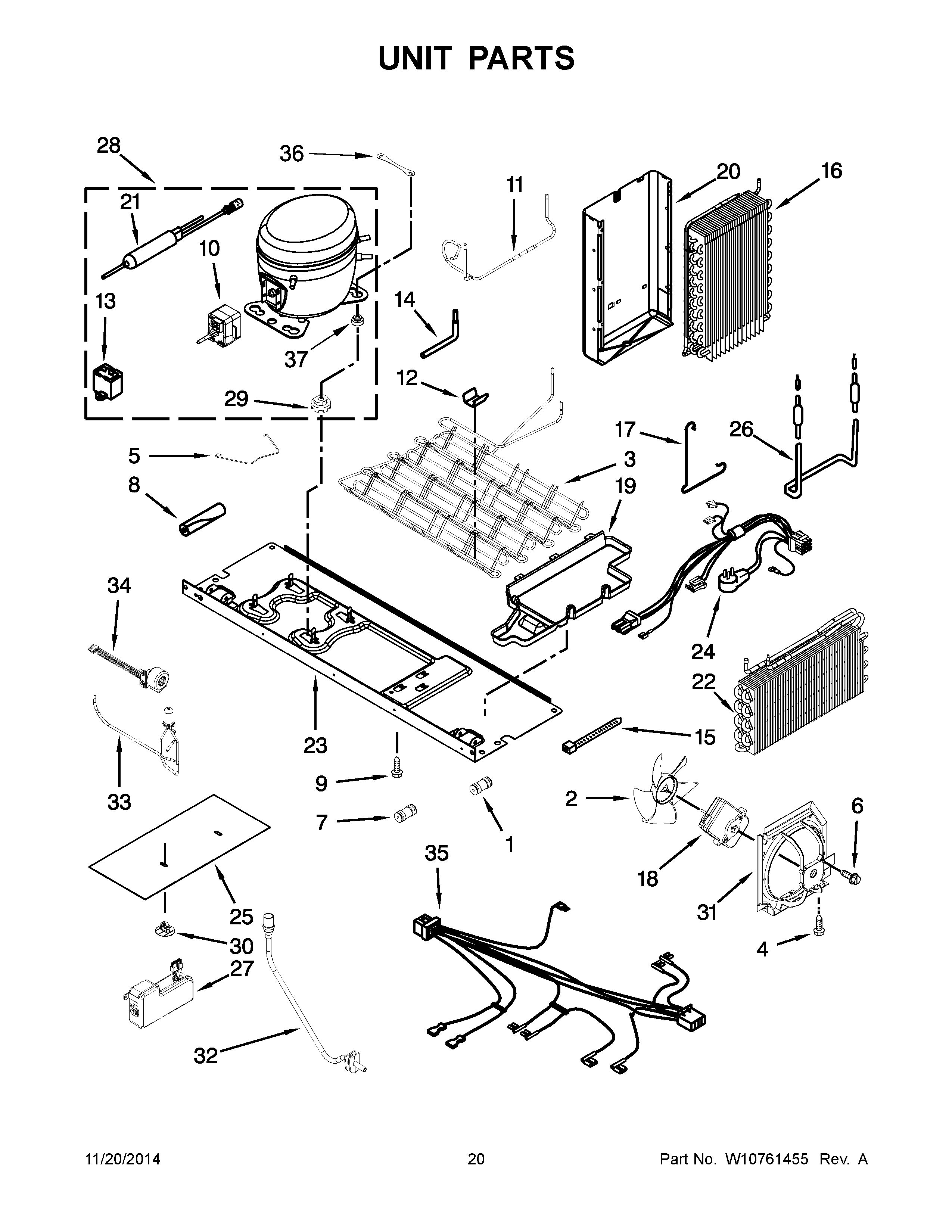

JSC24C8EAM01 11 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
1	CONNECTOR, WATER
2	Fan, Blade
3	ASSEMBLY, CONDENSER
4	SCREW, 8-32 X 5/16
5	Clip, Retaining
6	MAY W10171469
7	CONNECTOR, WATER TUBE
8	MAY W10303521
9	MAY W10376166
10	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
11	TUBE, SUCTION
12	CLIP, CONDENSER
13	MAY W10350564
14	MAY 2325479
15	TIE, WIRE
16	MAY W10239732
17	Clip
18	MAY W10508362
19	MAY W10714793
20	MAY W10343824
21	DRIER
22	MAY W10643261
23	BASEPAN
24	CORD, POWER
25	COVER, UNIT BOTTOM
26	MAY W10495968
27	MAY W10356137
28	MAY W10253005
29	GROMMET
30	CLIP, BOTTOM COVER
31	BAFFLE, AIR
32	MAY W10223368
33	ASSEMBLY, VALVE BODY
34	COIL, 3 WAY VALVE
35	MAY W10670174
36	MAY W10236396
37	GROMMET, AIR RETURN
