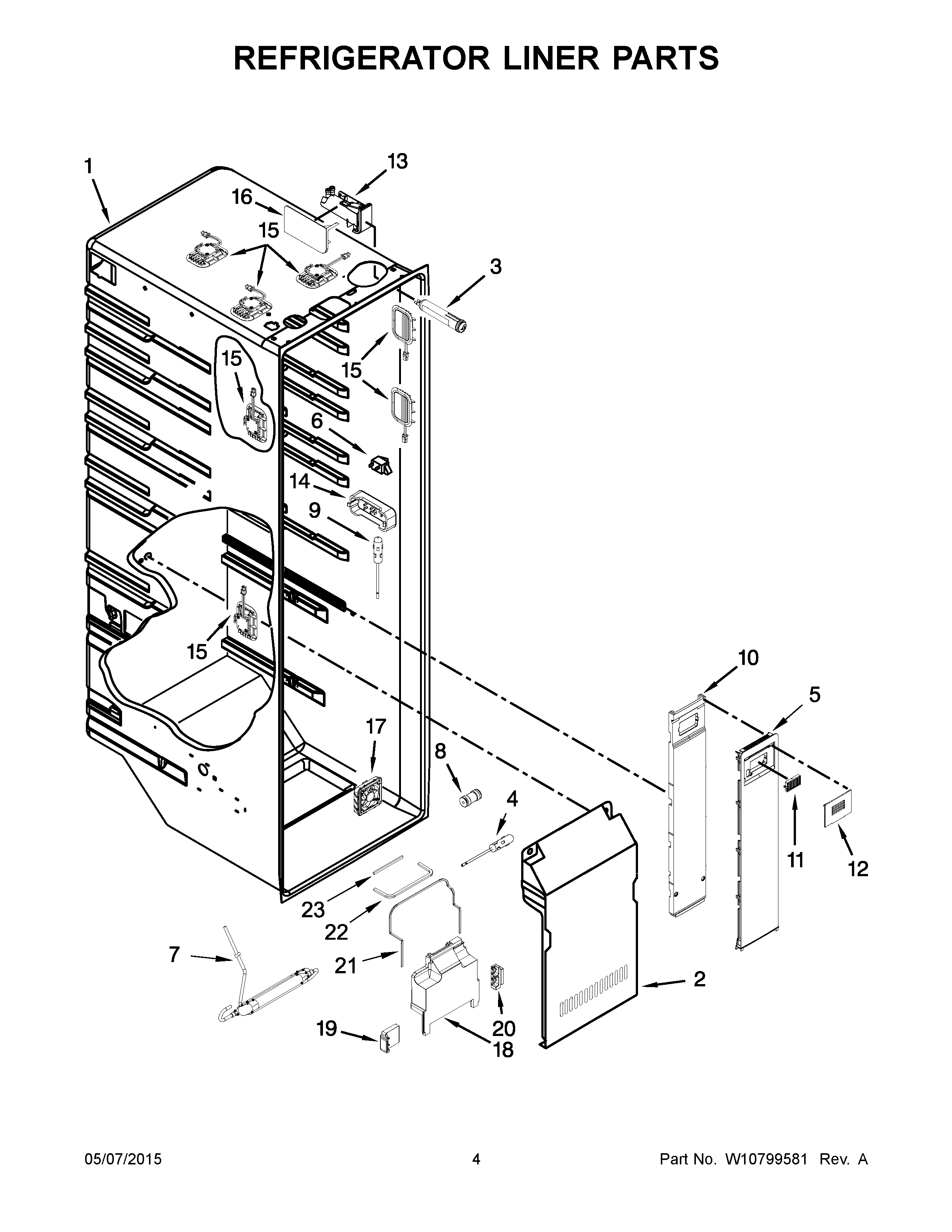

JSC24C8EAM02 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	EVAPORATOR COVER
3	MAY W10569758
4	THERMISTOR, EVAPORATOR FAN
5	MAY W10384770
6	MAY W10656773
7	MAY W10538994
8	CONNECTOR, UNION
9	THERMISTOR
10	MAY W10394423
11	FILTER, AIR
12	MAY W10357649
13	MAY W10394053
14	COVER, THERMISTOR
15	MAY W10637153
16	MAY W10300482
17	MAY W10723753
18	MAY W10723752
19	MAY W10223366
20	MAY W10223364
21	MAY W10260462
22	MAY W10387387
23	MAY W10394945
