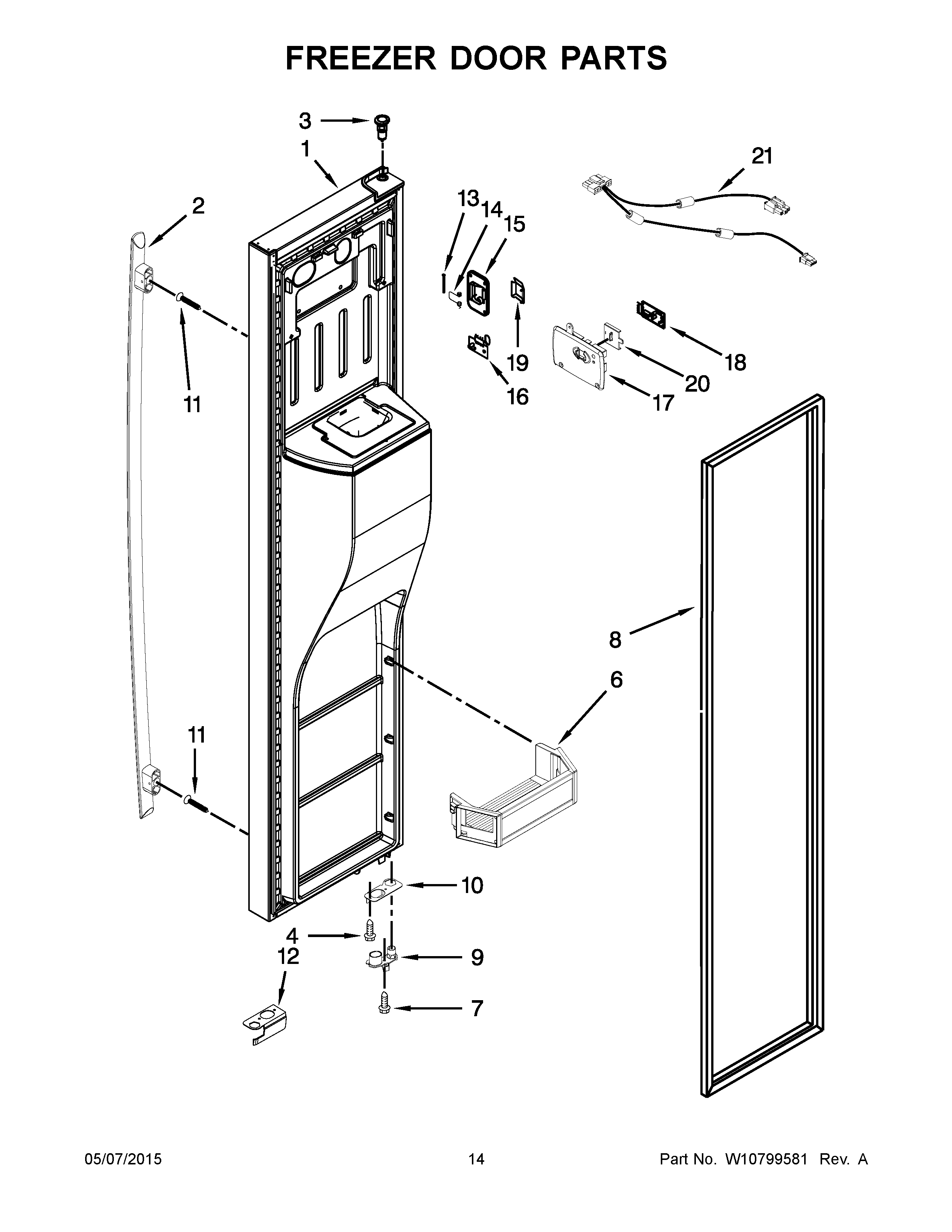

JSC24C8EAM02 08 – FREEZER DOOR PARTS

JSC24C8EAM02 08 – FREEZER DOOR PARTS

Written by

in

JSC24C8EAM02 08 – FREEZER DOOR PARTS

Products

Position	Product
1	MAY W10637841
2	HANDLE, DOOR
3	THIMBLE, TOP
4	SCREW
6	MAY W10327583
7	SCREW
8	DOOR GASKET, MAGNETIC (GREY)
9	DOOR CLOSER, UPPER CAM (GREY)
10	BRACKET, DOOR STOP (BLACK)
11	MAY W10460893
12	MAY W10632062
13	PIN, DOOR
14	SPRING, DOOR
15	MAY W10258502
16	MAY W10518659
17	MAY W10258510
18	MAY W10518658
19	DOOR, EMITTER
20	MAY W10258540
21	MAY W10411699
