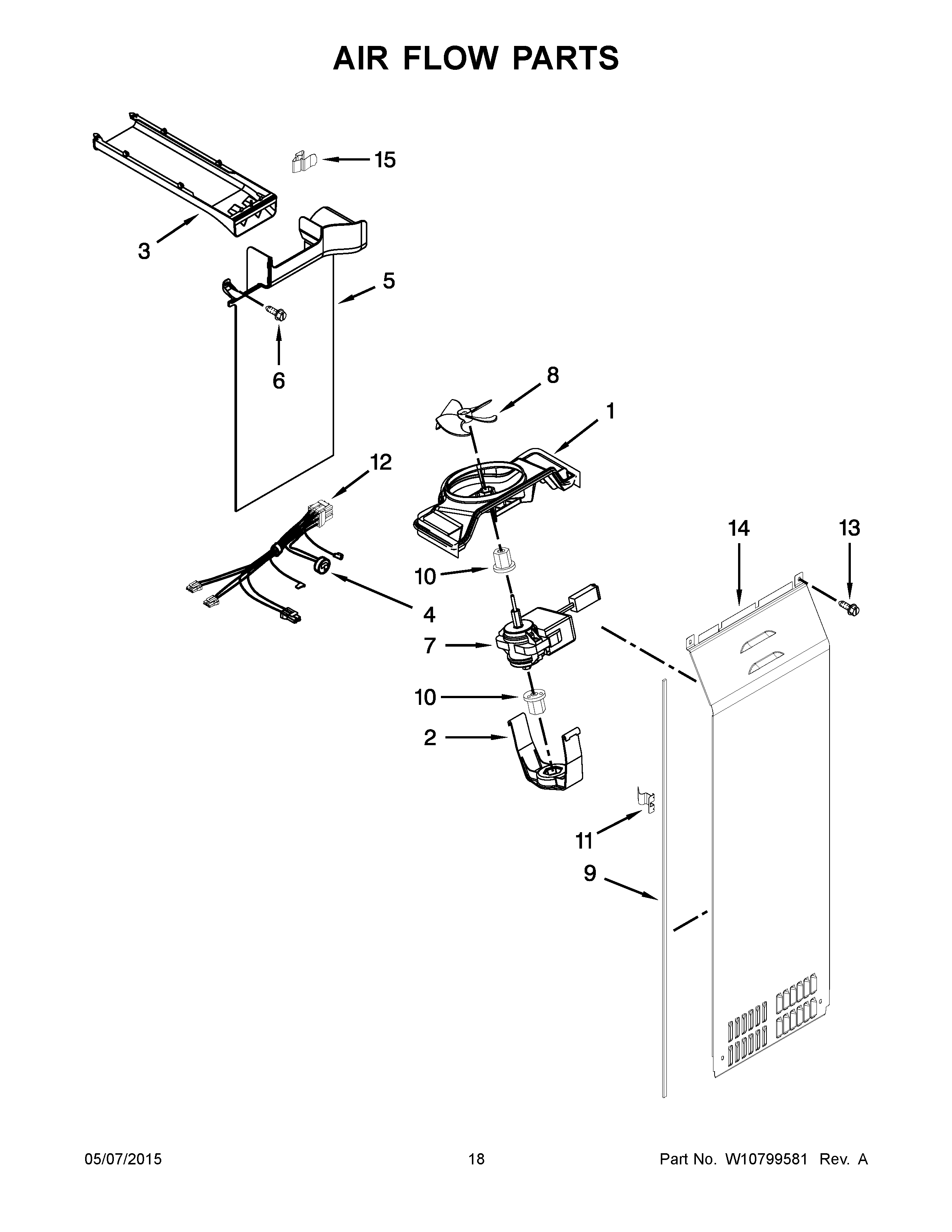

JSC24C8EAM02 10 – AIR FLOW PARTS

JSC24C8EAM02 10 – AIR FLOW PARTS

Written by

in

JSC24C8EAM02 10 – AIR FLOW PARTS

Products

Position	Product
1	MAY W10251462
2	MAY 2223733
3	DUCT, UPPER AIR
4	LINER (NOT A SERVICEABLE PART)
5	MAY W10382902
6	SCREW, 8 X 1/2
7	MAY W10556724
8	Blade, Fan (Evaporator)
9	MAY W10240370
10	GROMMET
11	MAY W10369602
12	MAY W10679946
13	SCREW
14	COVER, EVAPORATOR
15	MAY W10331728
