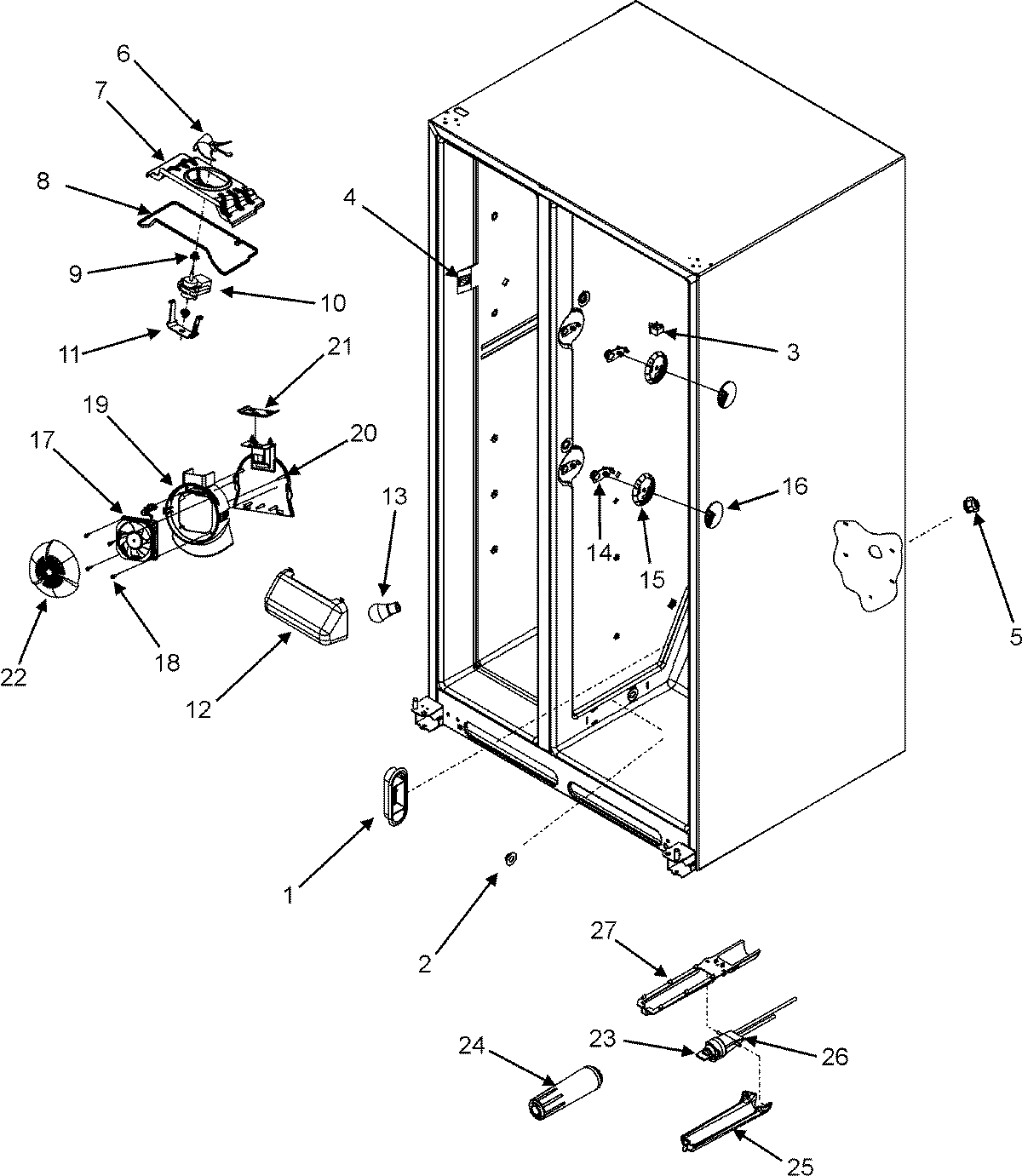

JSD2695KGW 05 – EVAP FAN/CONVECTION FAN/CRISP LT/FILTER

JSD2695KGW 05 – EVAP FAN/CONVECTION FAN/CRISP LT/FILTER

Written by

in

JSD2695KGW 05 – EVAP FAN/CONVECTION FAN/CRISP LT/FILTER

Products

PositionProduct
1MAY 12634801
2MAY 67005933
3W11291138 Whirlpool Refrigerator Door Switch
4SWITCH, LIGHT
5Socket, Light (2)
6MAY Y67005684
7Shroud, Evap Fan
8MAY 67001508
9WP67002780 Whirlpool Refrigerator Grommet
10WPW10128551 Whirlpool Evaporator Fan Motor
11MAY 67005633
12MAY 67001507
13RANGE ONLY 40W 120V APPL BULB
14MAY 67002827
15MAY 67002225
16MAY 67004525
17MAY 67005358
18MAY M0254706
19MAY 67005359
20MAY 12888702
21MAY 67005361
22MAY 67005481
23MAY 67003146
24FILTER, WATER SINGLE
25WP12568001 Whirlpool Filter Cover
26WP67006524 Whirlpool Refrigerator Housing
27MAY 12688503
