JSD2695KGW 15 – REFRIGERATOR DOOR

JSD2695KGW 15 – REFRIGERATOR DOOR

Written by

in

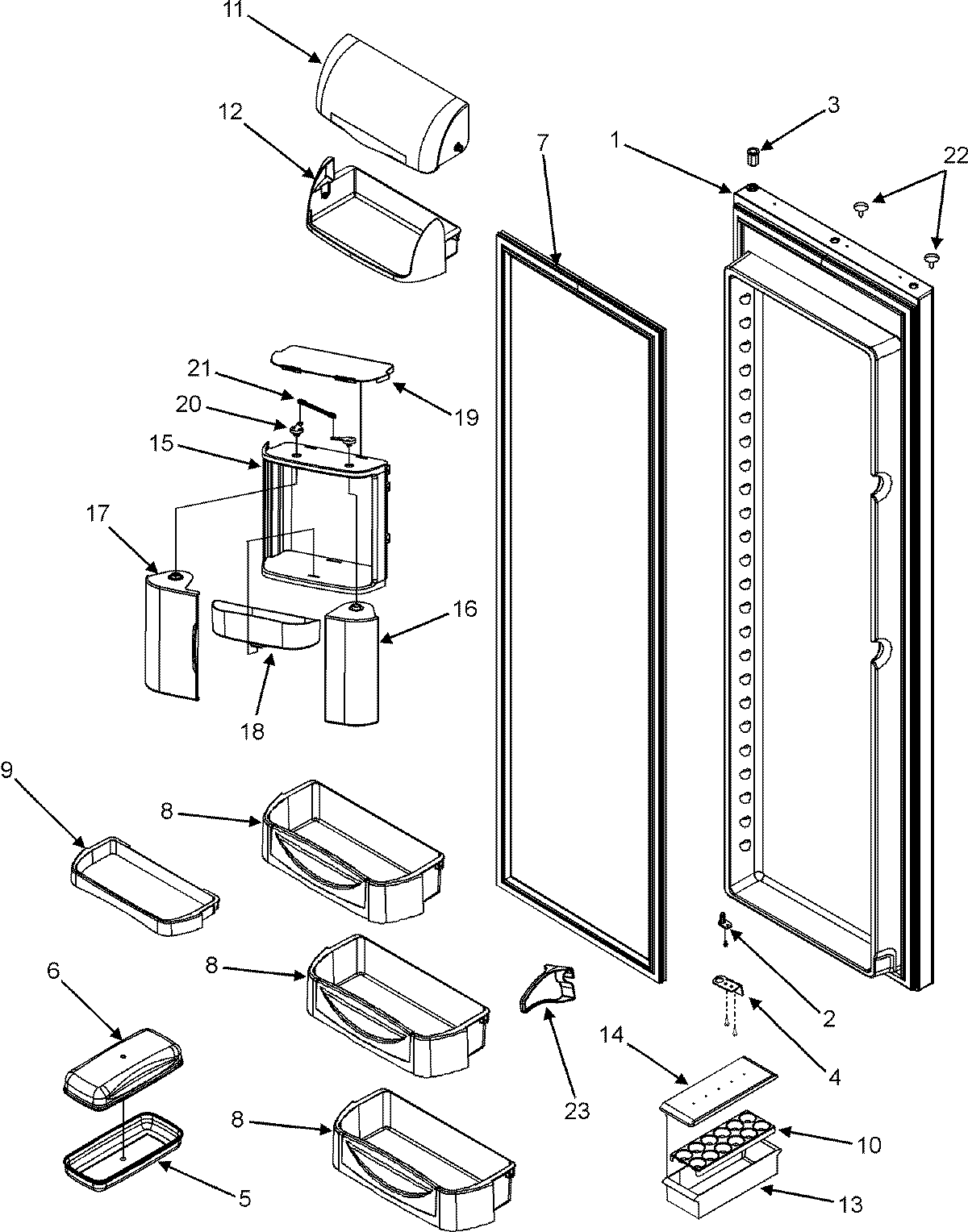

JSD2695KGW 15 – REFRIGERATOR DOOR

Products

Position	Product
1	MAY 67006935
2	CLOSURE, DOOR (BLK)
3	MAY 67004976
4	STOP, DOOR (WHT)
4	SCREW
5	MAY 67004404
6	MAY 67004405
7	MAY 67003966
8	MAY 67004540
9	MAY 67004458
10	MAY 10436506
11	MAY 67001325
12	MAY 67002304
13	MAY 10423131
14	MAY 10436404
15	Frame, Chiller (Large)
16	Door Chiller (RT) (Large)
17	MAY 67004542
18	Tray, Chiller (2)
19	Cover, Chiller (2)
20	Linkage, Chiller (4)
21	Linkage, Center Chiller (2)
22	MAY M0311605
23	MAY 67004564
