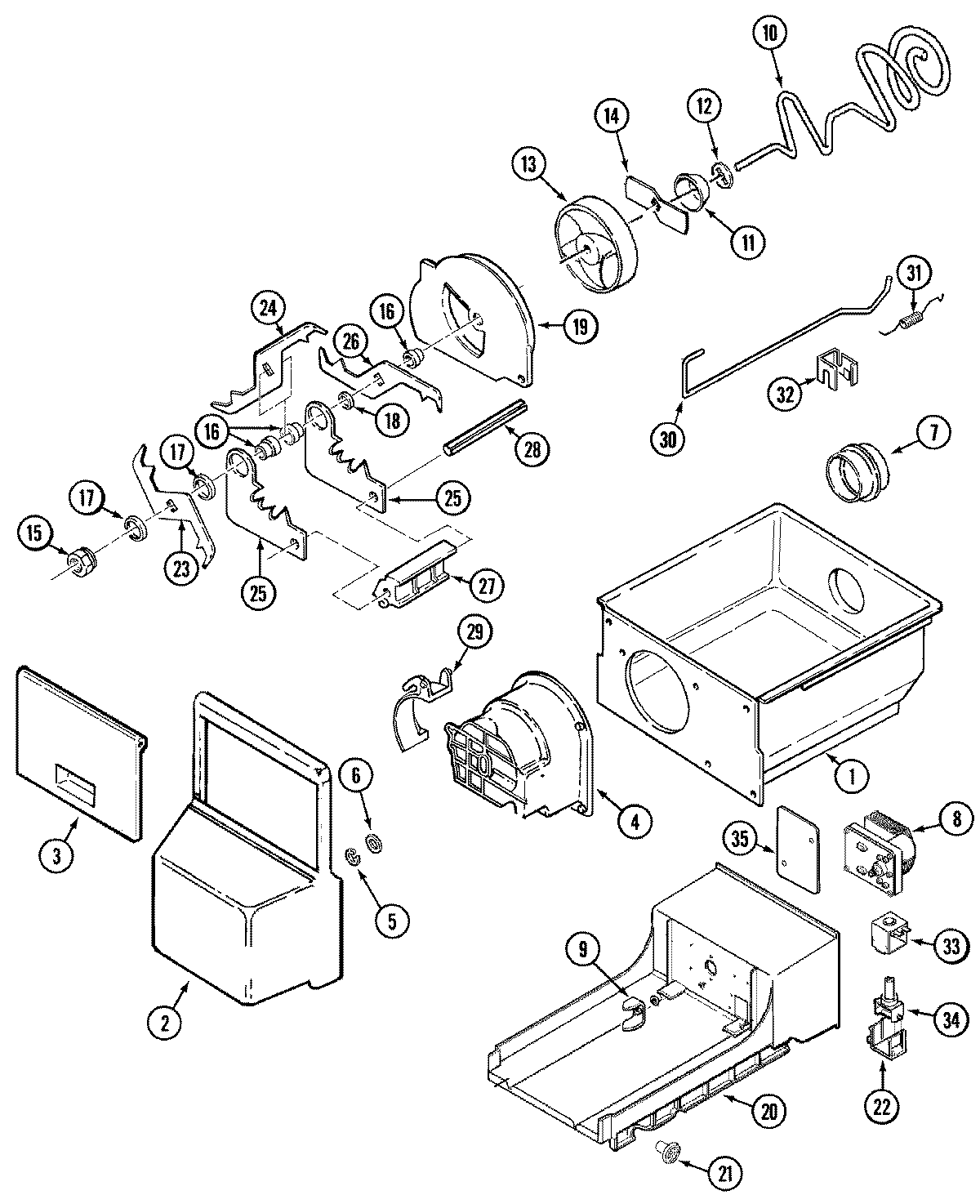

JSD2789AES 10 – ICE BIN (REV 11)

Products

Position	Product
1	MAY 61004802
2	MAY 61004803
3	MAY 61004300
4	MAY 61004804
4	MAY 61004869
4	415013-35 Whirlpool Refrigerator Screw
5	MAY 69704-1
6	489234 Whirlpool Refrigerator Washer
7	WP61003336 Whirlpool Refrigerator Drive Ring
8	MAY 61004805
8	12001773 Whirlpool Refrigerator Primary Auger Motor Y Assembly
9	MAY 63052-1
10	MAY 61003326
11	MAY 69699-1
12	MAY 69698-1
13	MAY 70036-1
14	MAY 69755-1
15	MAY 69709-1
16	MAY 69697-1
17	MAY 69696-1
18	MAY 69696-2
19	MAY 69701-1
20	61005625 Whirlpool Refrigerator Ice Enclosure
21	MAY 61003333
21	WP67006908 Whirlpool Refrigerator Screw
22	MAY 400026-12
22	MAY 69715-1
23	MAY 69702-3
24	MAY 69702-2
25	MAY 69706-1
26	MAY 69702-1
27	MAY 69708-1
28	MAY 69705-1
29	MAY 69718-1
30	MAY 61004807
31	MAY 61004808
32	MAY 61004809
33	2006253 Whirlpool Refrigerator Screw
33	MAY 61003118
34	MAY 61003539
35	MAY 61004850
