JSP31WT1WW DOOR & LOCK

JSP31WT1WW DOOR & LOCK

Written by

in

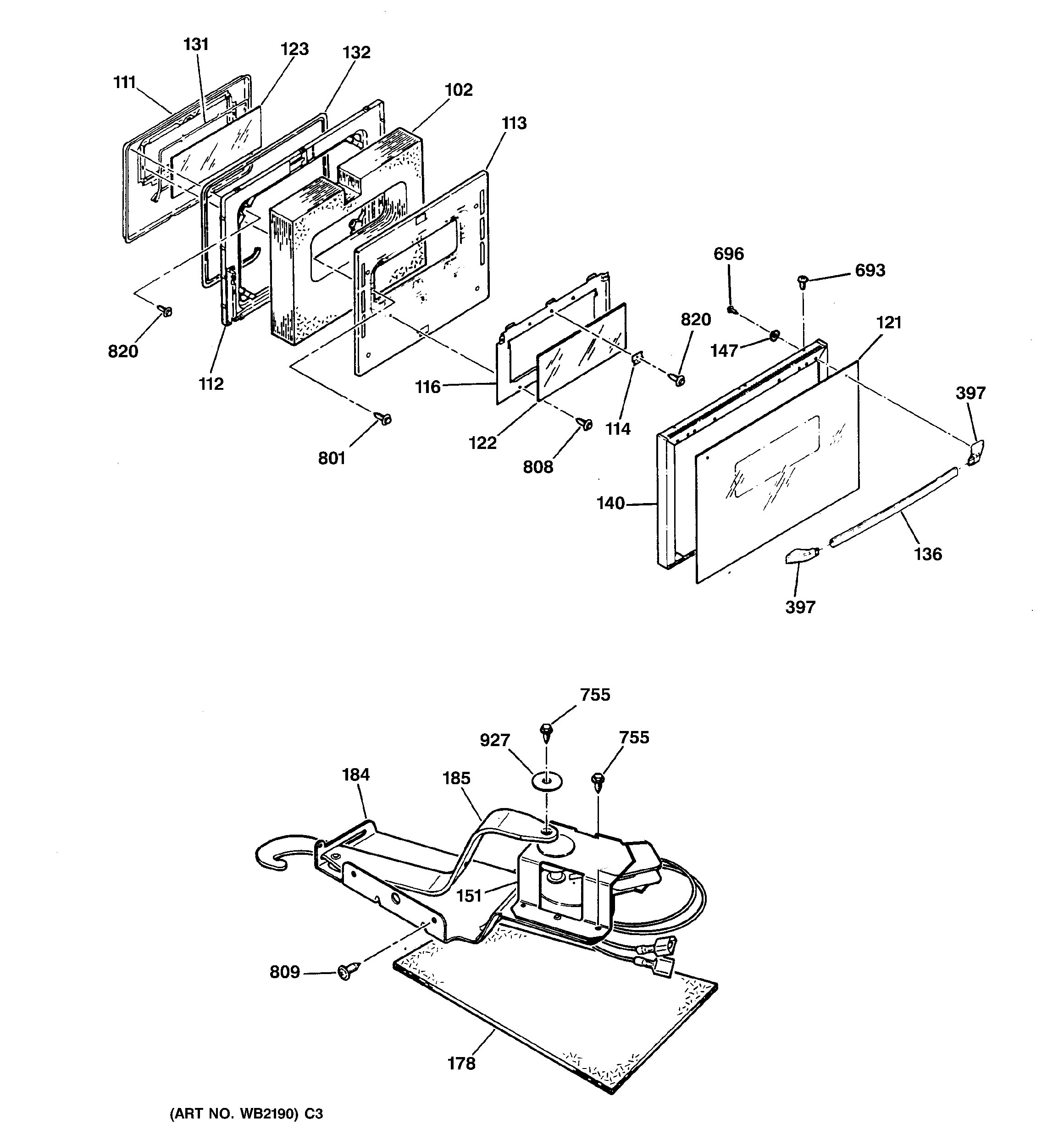

JSP31WT1WW DOOR & LOCK

Products

PositionProduct
102OVEN DOOR INSULATION
111GEN WB55K5037
112GEN WB55K5038
113INSULATION RETAINER
114GEN WB02M0001
116GEN WB02X9178
121GEN WB57K5234
122GEN WB57K5141
123CENTER GLASS
131WB2X9168 GE Oven Seal
132WB2K5319 GE Oven Door Gasket
136GEN WB15T10031
140GEN WB56K5138
147GEN WB02K5312
151WB49T10020 GE Stove Range Oven Lock Motor Latch Assembly
178UNKNOWN
184WB34K5228 GE Oven Door Lock Plate
185WB15K5016 GE Oven Lock Lever Assembly
397GEN WB07K5319
755WZ4X44D GE Screw Package
801WB1M1 GE Oven Screw
808WB1X1116 GE Oven Screw
809WB1X1137 GE Oven Screw
820WB1X1424D GE Oven Screw Package
927WB1X119D GE Oven Range Washer
