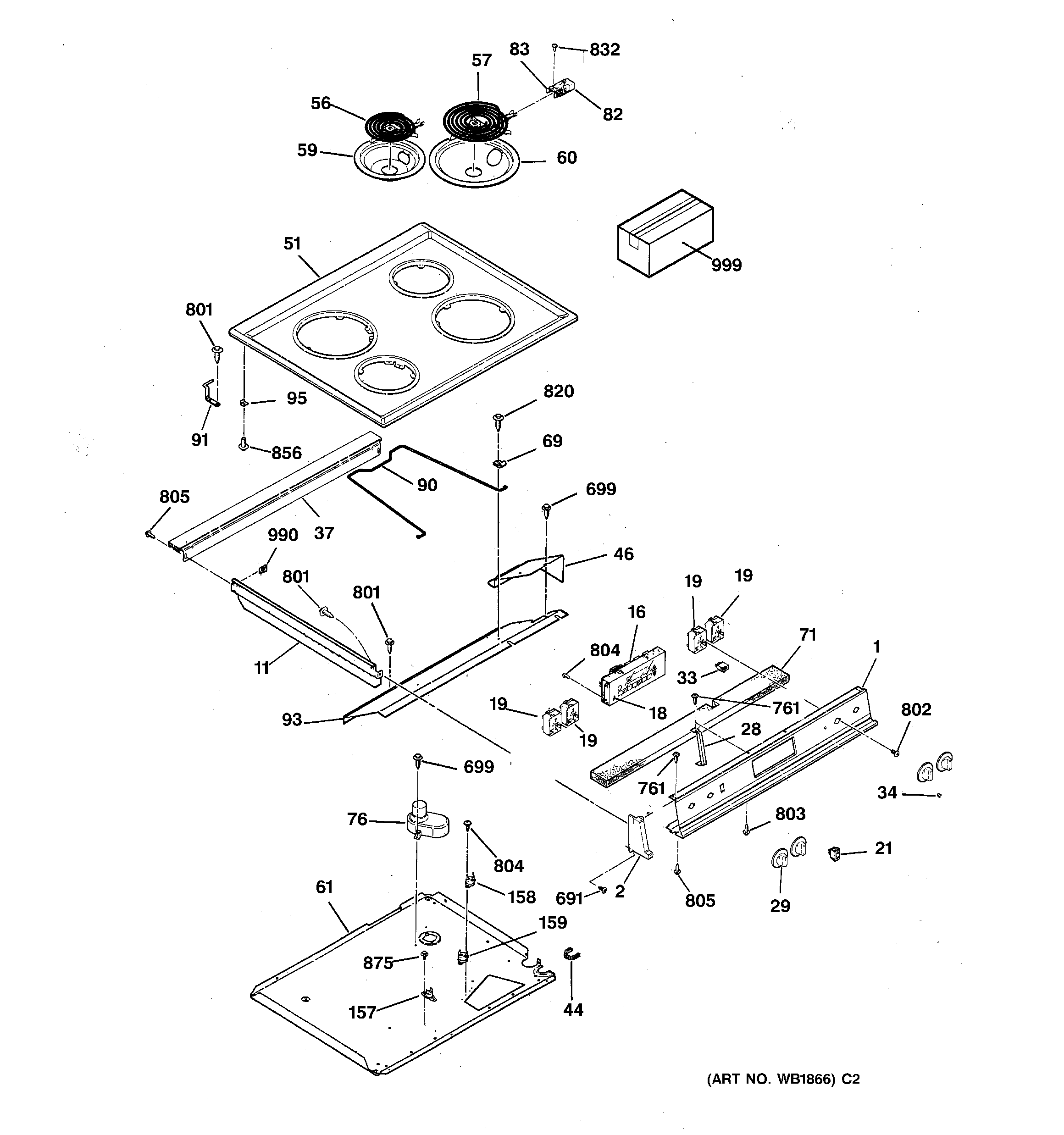

JSP34AV1AA CONTROL PANEL & COOKTOP

Written by

Products

Position	Product
1	GEN WB36K5562
2	GEN WB36K5440
2	GEN WB36K5439
11	SIDE EXTENSION
16	GEN WB27K5140
18	GEN WB27K5224
19	WB23M24 GE Stove Range Infinite Switch 1500W Cooktop Surface Burner
19	WB23K5027 GE Stove Range Oven Infinite Control Burner Switch
21	GEN WB24K5081
28	GEN WB02K5333
29	GEN WB03K5249
33	WB25T10040 GE Oven Light Indicator
34	LENS
37	GEN WB36K5581
44	UNKNOWN
44	UNKNOWN
46	UNKNOWN
51	UNKNOWN
56	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
57	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
59	6" BOWL BLACK REAR BUBBLE
60	WB31M19 GE Range Rear 8" Black Porcelain Cooktop Drip Bowl Assembly
61	UNKNOWN
69	WB2M87 GE Oven Support Rod Clamp
71	GEN WB35K5034
76	UNKNOWN
82	WB17X210 GE Oven Range Cooktop Burner Receptacle Block Kit
83	GEN WB01K5128
90	UNKNOWN
91	UNKNOWN
91	UNKNOWN
93	UNKNOWN
95	WB10X255 GE Oven Hinge Bracket
133	FELT WASHER
157	GEN WB24K5029
158	GEN WB24K5086
159	UNKNOWN
511	UNKNOWN
512	UNKNOWN
513	GEN WB26K5056
514	UNKNOWN
691	GEN WB01K5192
699	WB1M1 GE Oven Screw
761	WB1K5062 GE Oven Screw
802	GEN WB01K5123
803	WB1X1149 GE Oven Screw
804	WB1X681 GE Oven Screw
805	GEN WB01X1113
820	WB1X1424D GE Oven Screw Package
856	WB1X1293 GE Oven Screw
875	WH2X930 GE Screw
890	WB1X1118 GE Oven Screw 6-32T
892	UNKNOWN
990	GEN WB01X1432
996	UNKNOWN
999	MAIN WIRE HARNESS
999	GEN 49-8579
999	GEN WB18K5436
999	GEN WB18K5363
999	GEN 31-13178
999	GEN 31-10070
