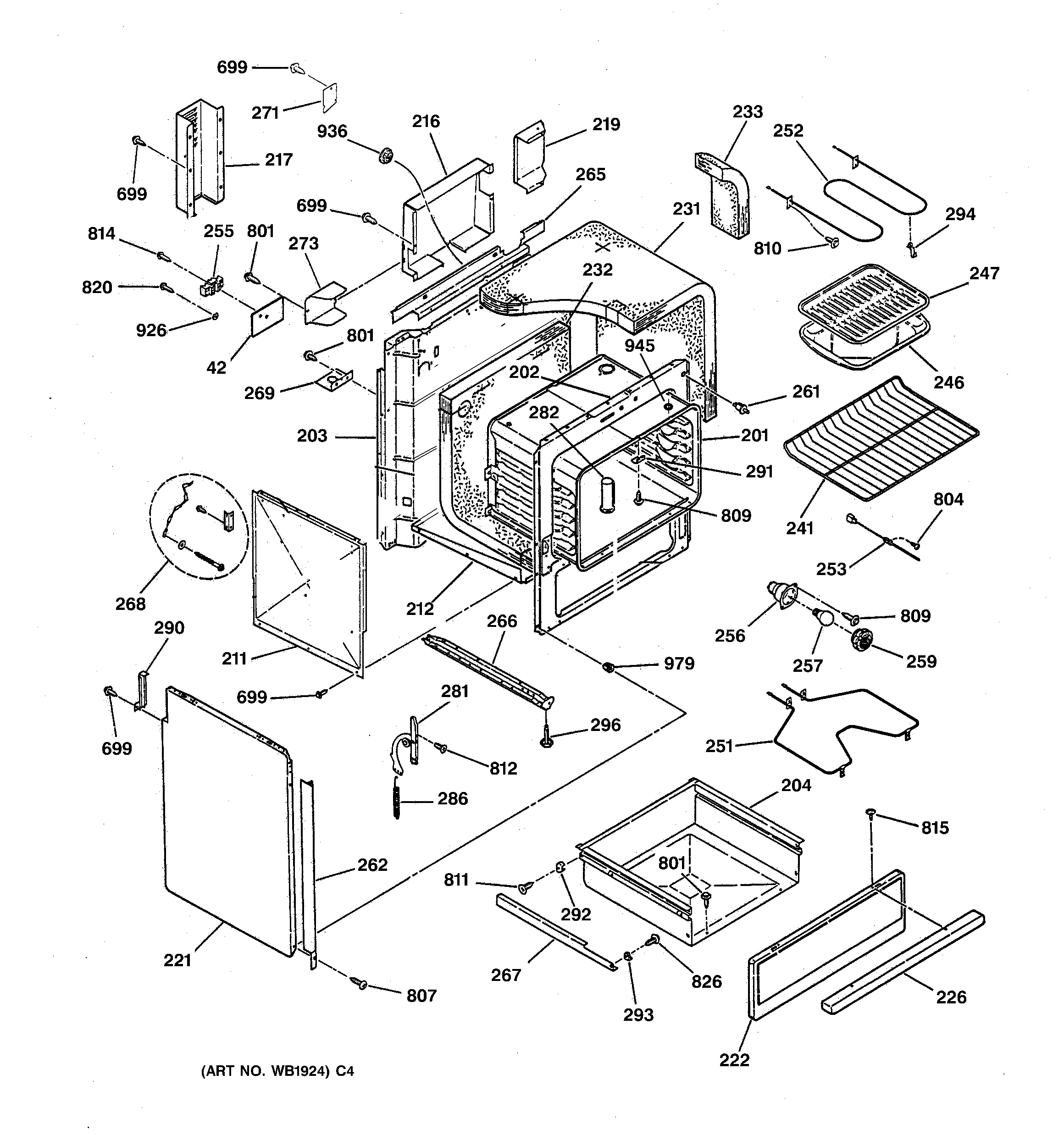

JSP34BW2BB BODY & DRAWER PARTS

JSP34BW2BB BODY & DRAWER PARTS

Written by

in

JSP34BW2BB BODY & DRAWER PARTS

Products

PositionProduct
42UNKNOWN
42GEN WB34K5251
42GEN WB34K5250
201GEN WB63T10002
202GEN WB63T10028
203GEN WB63M0056
204GEN WB58X0065
211GEN WB02M0038
212GEN WB02K5093
216UNKNOWN
217UPPER WIRE COVER
219GEN WB34K5221
221GEN WB63K5192
221GEN WB63K5195
222GEN WB56K5022
226LOWER FRONT PANEL HANDLE
231GEN WB35M0022
232GEN WB35K5113
233INSULATION-TOP SIDES
241GEN WB48X0208
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5012 GE Oven Bake Element
252WB44X232 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
255WB17X5095 GE Black Oven Terminal
256GEN WB08K5042
257GEN BUY-LOCAL
259OVEN LAMP LENS
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K5298
262GEN WB07K5297
265UNKNOWN
266GEN WB02K5334
267GEN WB56M0003
268WB2X7909 GE Oven Anti-Tip Kit
269SERVICE RANGE MTG PLATE
271UNKNOWN
273GEN WB34M0027
281WB14X103 GE Range Oven Left Door Hinge
281WB14X104 GE Stove Range Oven Right Hand Door Hinge
282GEN WB38K5017
286OV DR SPRING
290GEN WB63M0021
291GEN WB02X9152
292GEN WB02X9146
293GEN WB02X9148
294WB2X9719 GE Oven Support Bracket Clip
296GEN WB01M0018
699WB1M1 GE Oven Screw
804WB1X681 GE Oven Screw
807WB1K5165 GE Oven Black Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
811GEN WB01X1172
812WB1K5191 GE Oven Zinc FL Screw
812SCREW-BLACK
814WB1X1258 GE Oven Screw
815SCREW-BLK
820WB1X1424D GE Oven Screw Package
826GEN WB01X1167
926GROUND WASHER
936GEN WB02M0021
945WB1K5046 GE Oven Washer
979SPACER
