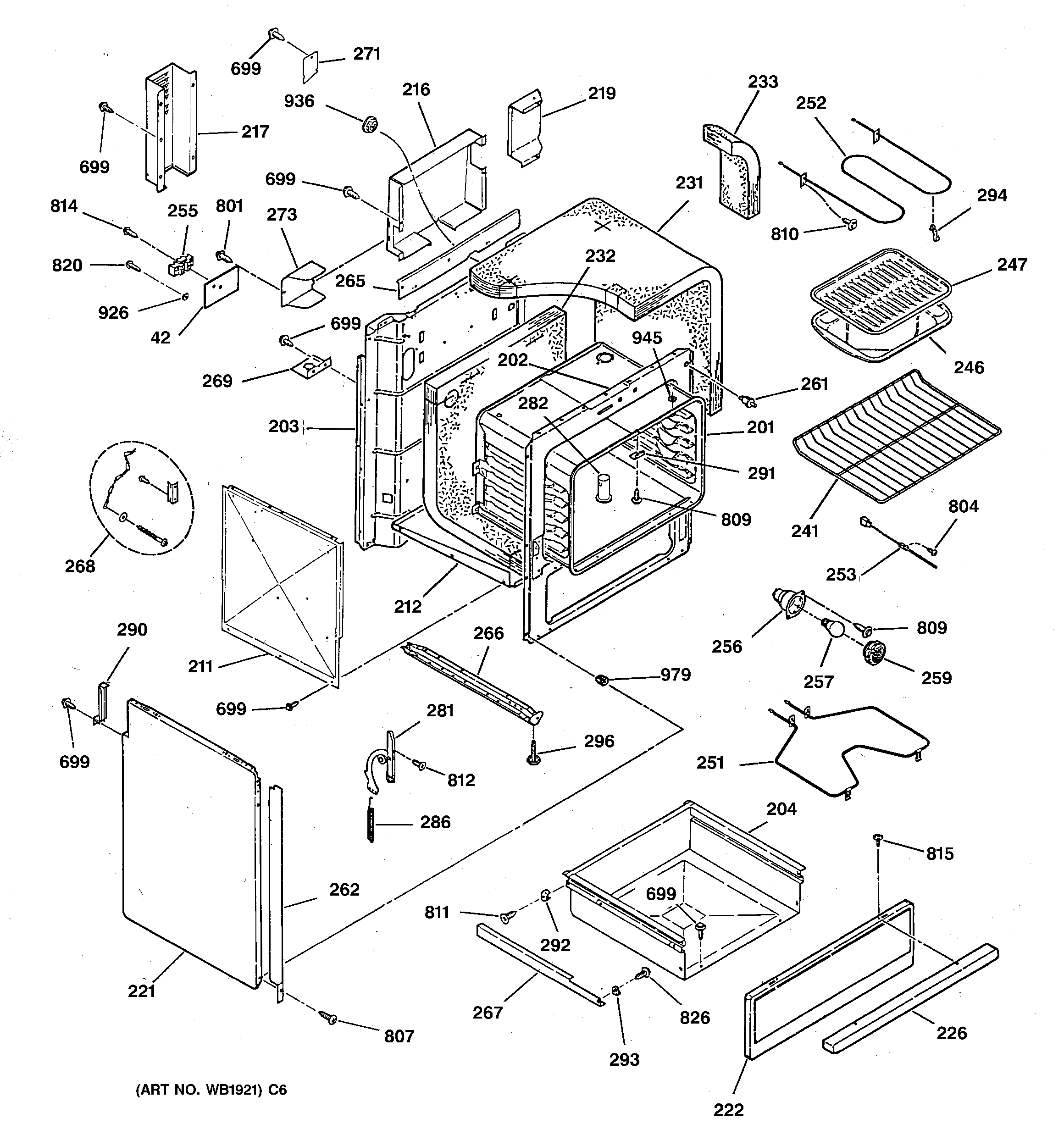

JSP34WW4WW BODY & DRAWER PARTS

Written by

Products

Position	Product
42	UNKNOWN
42	GEN WB34K5251
42	GEN WB34K5250
201	GEN WB63T10002
202	GEN WB63T10028
203	GEN WB63M0056
204	GEN WB58X0065
211	GEN WB02M0038
212	GEN WB02T10077
216	UNKNOWN
217	UPPER WIRE COVER
219	GEN WB34K5221
221	GEN WB63K5195
221	GEN WB63K5192
222	GEN WB56K5017
226	GEN WB15K5082
231	GEN WB35M0022
232	GEN WB35K5113
233	INSULATION-TOP SIDES
241	GEN WB48X0208
247	WB48X10056 GE Broil Pan Set, Large Porcelain
251	WB44K5012 GE Oven Bake Element
252	WB44X232 GE Oven Broil Element
253	WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
255	WB17X5095 GE Black Oven Terminal
256	WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257	GEN BUY-LOCAL
259	WB25T10002 GE Oven Bulb Lens
261	WB24T10147 GE Oven SPDT Light Switch
262	GEN WB07K5301
262	GEN WB07K5302
265	UNKNOWN
266	GEN WB02K5334
267	GEN WB56M0003
269	SERVICE RANGE MTG PLATE
271	UNKNOWN
273	GEN WB34M0027
281	WB14X104 GE Stove Range Oven Right Hand Door Hinge
281	WB14X103 GE Range Oven Left Door Hinge
282	GEN WB38K5017
286	OV DR SPRING
290	GEN WB63M0021
291	GEN WB02X9152
292	GEN WB02X9146
293	GEN WB02X9148
294	WB2X9719 GE Oven Support Bracket Clip
296	GEN WB01M0018
699	WB1M1 GE Oven Screw
804	WB1X681 GE Oven Screw
807	WB1K5166 GE White Screw
809	WB1X1137 GE Oven Screw
810	WB1X1130 GE Oven Screw 10-32
811	GEN WB01X1172
812	WB1K5191 GE Oven Zinc FL Screw
814	WB1X1258 GE Oven Screw
815	GEN WB01K5179
820	WB1X1424D GE Oven Screw Package
826	GEN WB01X1167
926	GROUND WASHER
936	GEN WB02M0021
979	SPACER
