JSP39DN2CC CONTROL PANEL & COOKTOP

JSP39DN2CC CONTROL PANEL & COOKTOP

Written by

in

JSP39DN2CC CONTROL PANEL & COOKTOP

Products

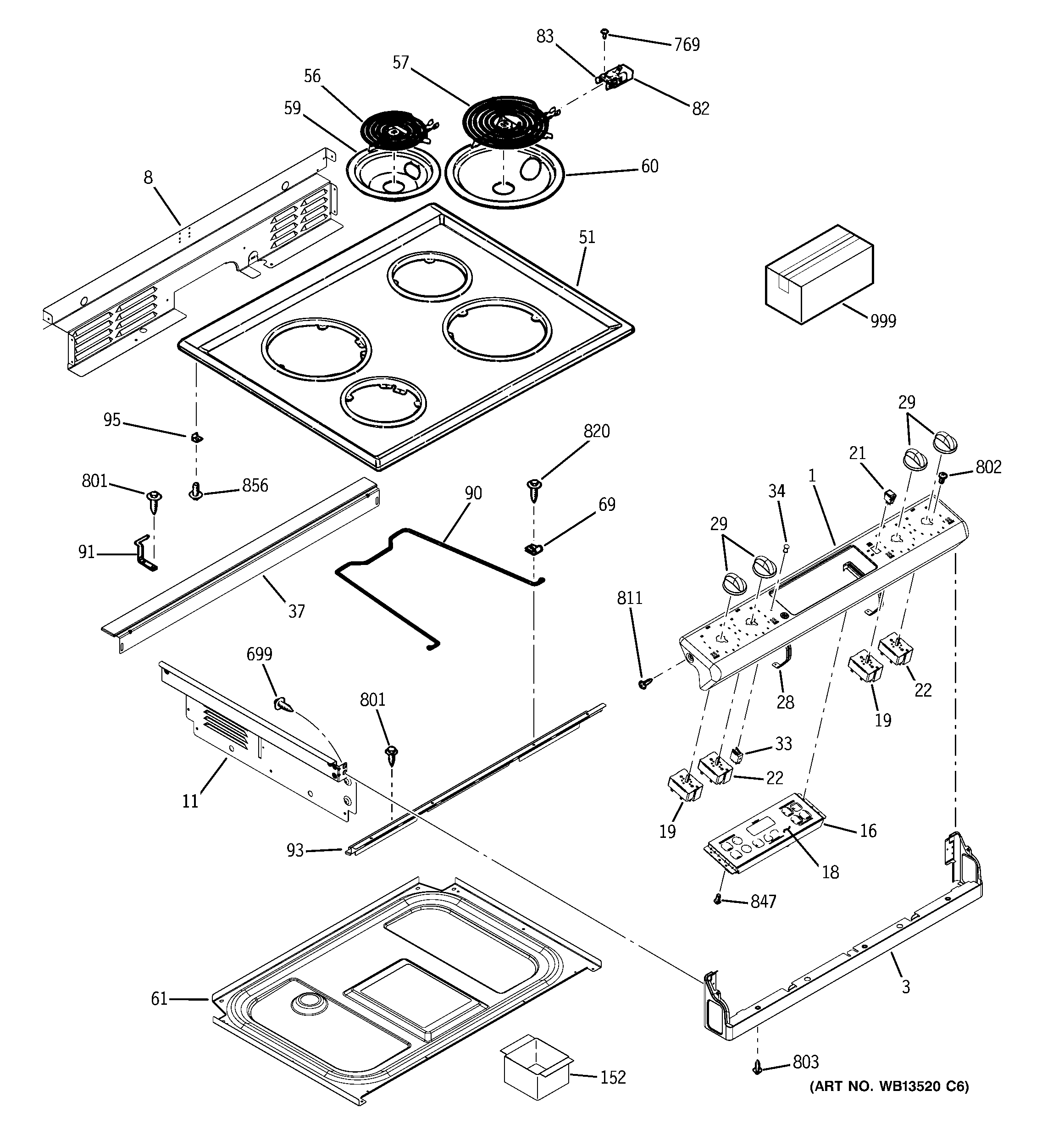

PositionProduct
1GEN WB36T11193
1GEN WB36T11195
1GEN WB36T11196
3GEN WB36T10793
3WB36T10792 GE Control Panel Bottom
3WB36T10795 GE Oven Bottom Control Panel
8GEN WB07K10155
11WB07T10474 GE Oven Extension Side Left
11WB07T10473 GE Oven Right Side Extension
16CONTROL OVEN TO9 (ELEC)
18GEN WB27T11080
18WB27T11096 GE Oven Control Faceplate
18GEN WB27T11095
19WB24T10025 SWITCH INFIN(2500W)
21WB24T10043 GE Oven Rocker Switch
21WB24T10042 GE Oven Rocker Switch
21WB24T10053 GE Oven Rocker Switch
22WB24T10029 GE Oven Infinite Burner Switch
28WB02T10267 GE Oven Control Bracket
29WB03T10285 GE Oven Infinite Control Knob
29KNOB INFINITE (BK)
29WB03T10282 GE Oven Infinite Knob (White)
33WB25K10010 GE Oven Light Indicator Pilot
34LENS
37OPTIONAL BACKSPLASH KIT
37OPTIONAL BACKSPLASH KIT
37KIT BACKSPLASH (BK)
51WB62T10427 GE Oven Main Top
51MAINTOP BQ
51WB62T10425 GE Oven Maintop
56WB30X20478 GE Oven Range Cooktop 6" Surface Unit Burner Element
57WB30X20481 GE Oven 8" Surface Element
59WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
60WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
61WB64T10053 GE Oven Bottom Burner Box
69WB2M87 GE Oven Support Rod Clamp
82WB17T10006 GE Oven Burner Receptacle Block
83RECEPTACLE W/CLIP
90WB02T10268 GE Main Top Support Rod
91WB14T10028 GE Maintop Hinge
91WB14T10027 GE Maintenance Top Right
93WB34T10105 GE Oven Wire Cover
95WB10X255 GE Oven Hinge Bracket
152WB14T10066 GE Latch Box
699WB1M1 GE Oven Screw
769WB1X500D GE Oven Screw Package
802GEN WB01K5123
803WB01T10095 GE Oven Screw 10-32 HWH I 13/16
811WB01T10094 GE Oven Screw 8-32 PN 1/2
820WB1X1424D GE Oven Screw Package
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
856WB1X1293 GE Oven Screw
999GEN 49-80591
999GEN 31-10673
999GEN 31-14250
