JSP39WT1WW OVEN DOOR

JSP39WT1WW OVEN DOOR

Written by

in

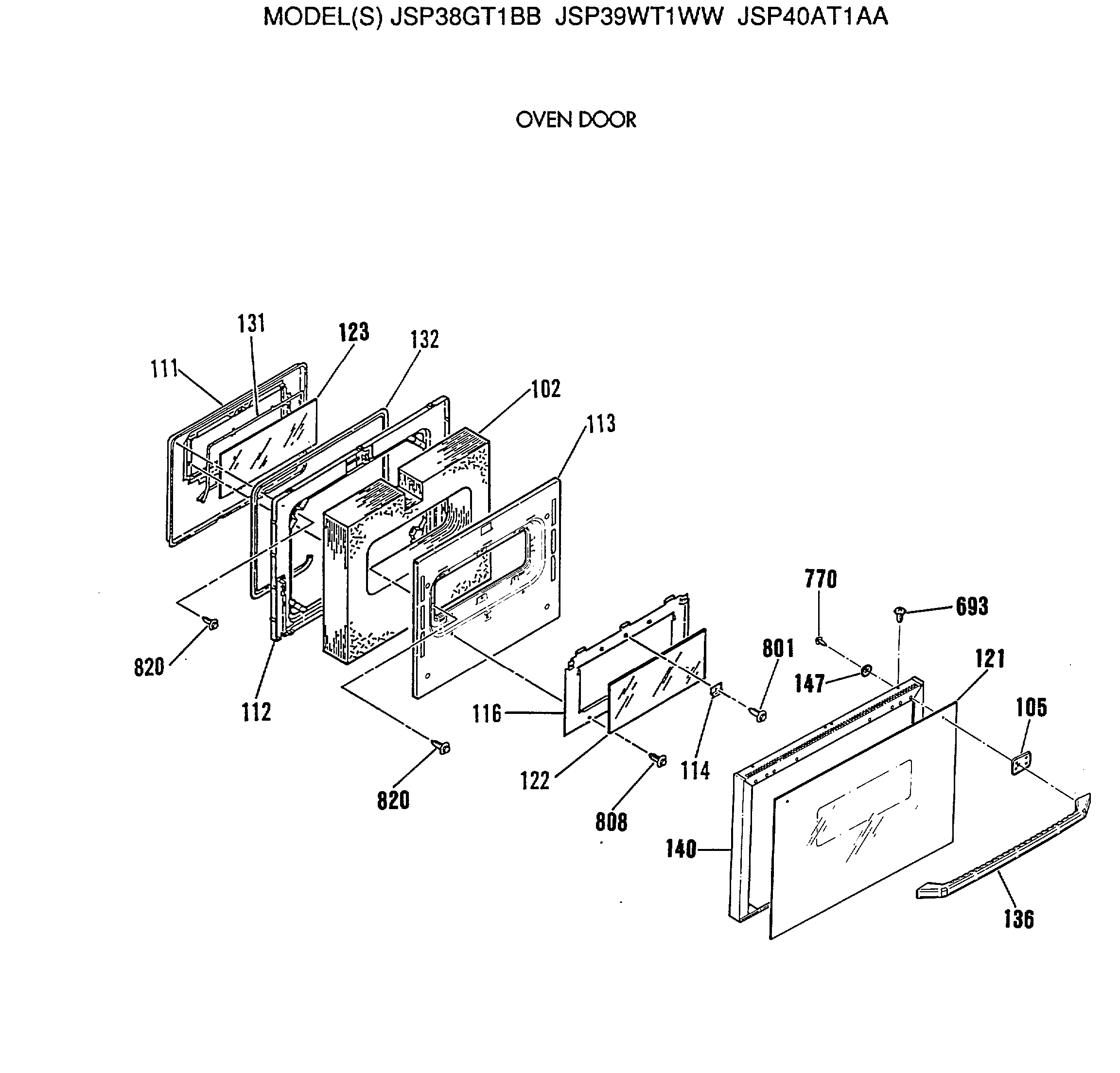

JSP39WT1WW OVEN DOOR

Products

PositionProduct
102OVEN DOOR INSULATION
105HANDLE TRIM-BLACK
111GEN WB55K5037
112GEN WB55K5038
113INSULATION RETAINER
114GEN WB02M0001
116GEN WB02X9178
121GEN WB57K5234
122GEN WB57K5141
123CENTER GLASS
131WB2X9168 GE Oven Seal
132WB2K5319 GE Oven Door Gasket
136GEN WB15X5211
140GEN WB56K5138
147GEN WB02K5313
693WB1K5191 GE Oven Zinc FL Screw
770WB1K5072 GE Oven Screw
801WB1M1 GE Oven Screw
808WB1X1116 GE Oven Screw
820WB1X1424D GE Oven Screw Package
