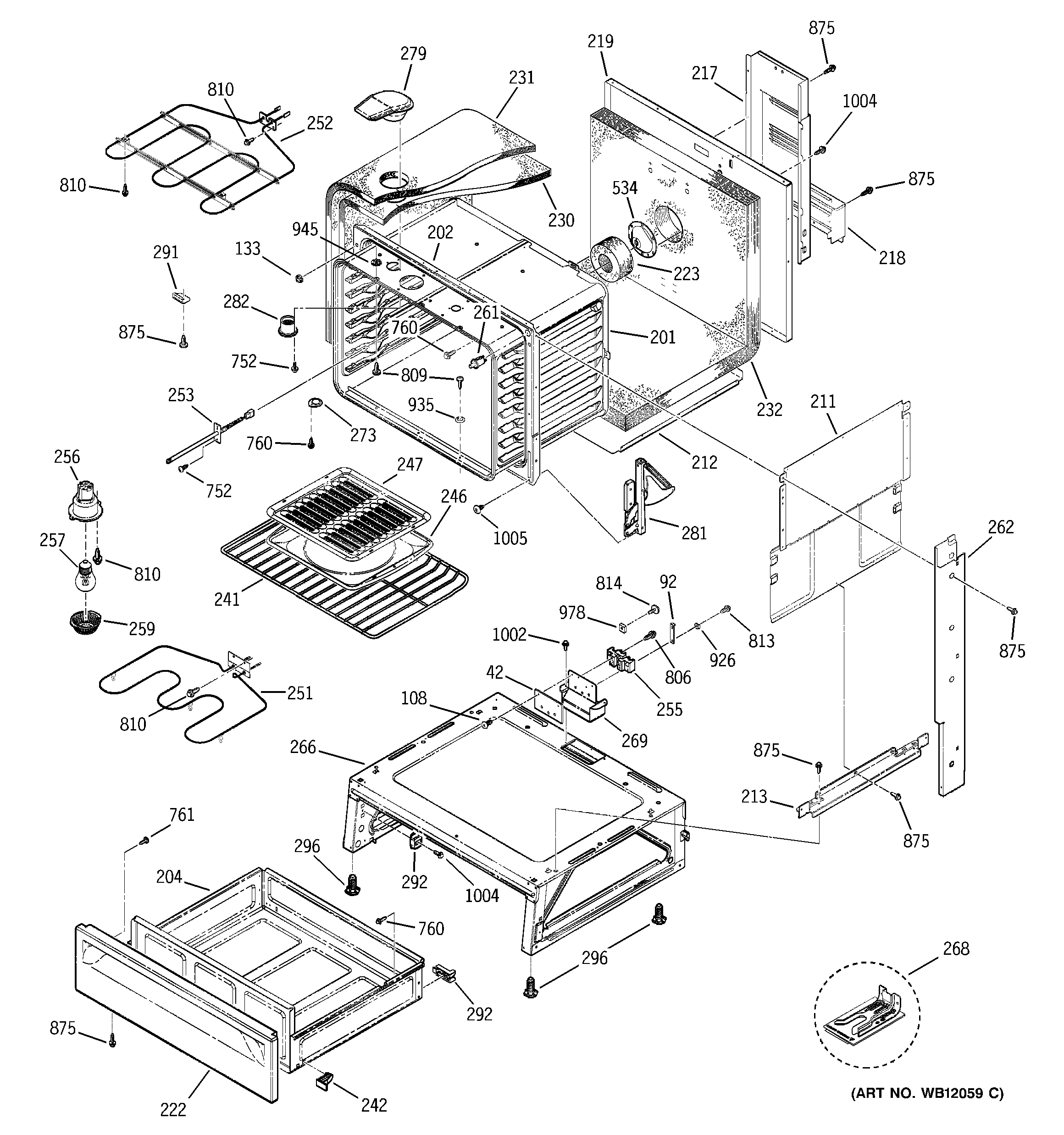

JSP46BD2BB BODY & DRAWER PARTS

JSP46BD2BB BODY & DRAWER PARTS

Written by

in

JSP46BD2BB BODY & DRAWER PARTS

Products

PositionProduct
42GEN WB17T10004
92GEN WB02T10067
108WB1X5364 GE Oven Mounting Screw
133WB01T10052 GE Oven Foam Tape
133WB01T10022 GE Oven Door Bumper
201GEN WB63T10068
202GEN WB63T10064
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
211GEN WB02K5306
212GEN WB02K10049
213GEN WB02K10050
217WB34K10049 GE Oven Rear Cover Wire
218GEN WB34K10047
219GEN WB56X10189
219GEN WB34T10035
222PANEL DRAWER BLACK
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241WB48T10095 GE Oven Rack
242WB48T10068 GE Oven Wedge Drawer
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K10009 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
255GEN WB17T10003
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257GEN BUY-LOCAL
259WB25T10002 GE Oven Bulb Lens
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K10146
262GEN WB07K10145
266BASE RIVET ASSY
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
269TERMINAL BOX
273GEN WB02K5365
279GEN WB38T10014
281GEN WB14T10009
281GEN WB14T10010
282GEN WB28K5010
291GEN WB02X9152
292GEN WB02T10031
292WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
534GEN WB26T10003
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5062 GE Oven Screw
761WB1K5029 GE Oven Screw
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
814SCR 10-32 IND HXW .437
875WH2X930 GE Screw
926GROUND WASHER
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
978GEN WB01X5968
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
