JSP50GN3BG 2

JSP50GN3BG 2

Written by

in

JSP50GN3BG 2

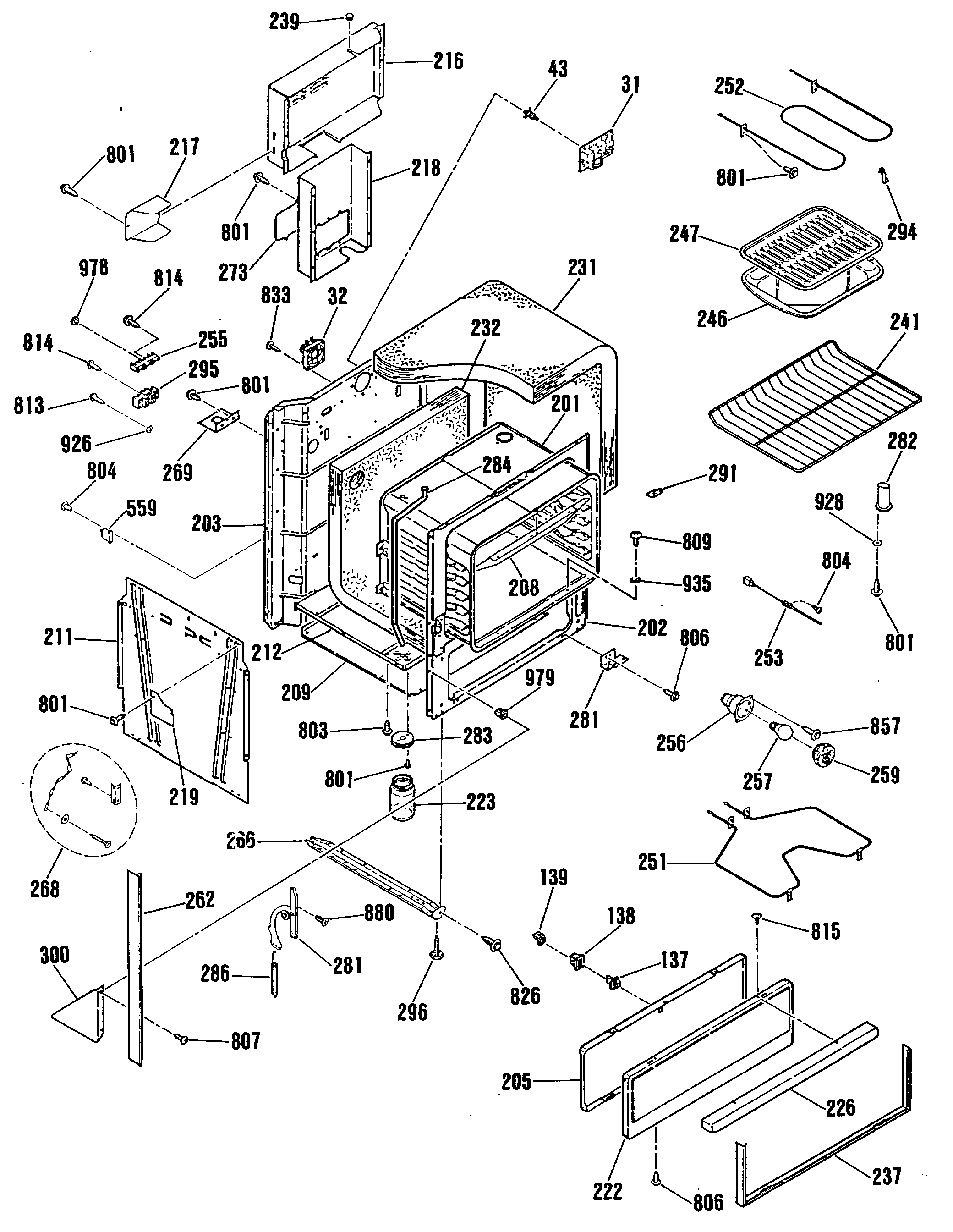

Products

Position	Product
31	GEN WB27X0611
32	WB26X114 GE Oven Lower Fan Assembly
43	GEN WB02X9657
137	GEN WB14M0003
138	GEN WB02M0053
139	GEN WB02M0052
201	GEN WB63M0040
202	GEN WB63M0049
203	GEN WB63K5170
205	GEN WB55M0007
208	GEN WB34M0031
209	GEN WB63M0048
211	SIDE INS RETAINER
212	INSULATION BTTM RETAINER
216	REAR WIRE COVER UPPER
217	GEN WB34M0027
218	WIRE COVER REAR
219	GEN WB34M0025
222	GEN WB56M0011
223	GEN WB06M0002
226	LOWER FRONT PANEL HANDLE
231	INSULATION-TOP & SIDES
232	UNKNOWN
237	GEN WB56M0012
239	GEN WB03M0023
241	OVEN RACK-LOWER OVEN
246	WB48X10056 GE Broil Pan Set, Large Porcelain
251	WB44K5012 GE Oven Bake Element
252	WB44X232 GE Oven Broil Element
253	WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
255	GEN WB17X0213
256	GEN WB08M0003
257	RANGE ONLY 40W 120V APPL BULB
259	OVEN LAMP LENS
262	GEN WB07M0014
262	GEN WB07M0013
266	BASE ASM W/LEVERS
268	WB2X7909 GE Oven Anti-Tip Kit
269	SERVICE RANGE MTG PLATE
273	GEN WB34M0024
281	LOWER PANEL HINGE
281	WB14X103 GE Range Oven Left Door Hinge
281	WB14X104 GE Stove Range Oven Right Hand Door Hinge
282	GEN WB38M0010
283	JAR LID
284	GEN WB06M0003
286	PV DR SPRING
291	GEN WB02X9152
294	WB2X9719 GE Oven Support Bracket Clip
295	WB17X5095 GE Black Oven Terminal
296	GEN WB01M0018
300	UNKNOWN
300	GEN WB02M0057
300	GEN WB02M0049
300	GEN WB02M0058
559	GEN WB21X5254
801	WB1M1 GE Oven Screw
803	WB1X1149 GE Oven Screw
806	SCREW-BRT. NI.
807	WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
813	WB1X1261 GE Oven Screw
814	WB1X1258 GE Oven Screw
815	SCREW
826	GEN WB01X1167
833	WB1X1131 GE Screw 6-32
857	UNKNOWN
880	WB1K5191 GE Oven Zinc FL Screw
926	GROUND WASHER
935	GEN WB01X1201
978	WB1X1259 GE Hex Nut
979	SPACER
