JSS01*02

JSS01*02

Written by

in

JSS01*02

Products

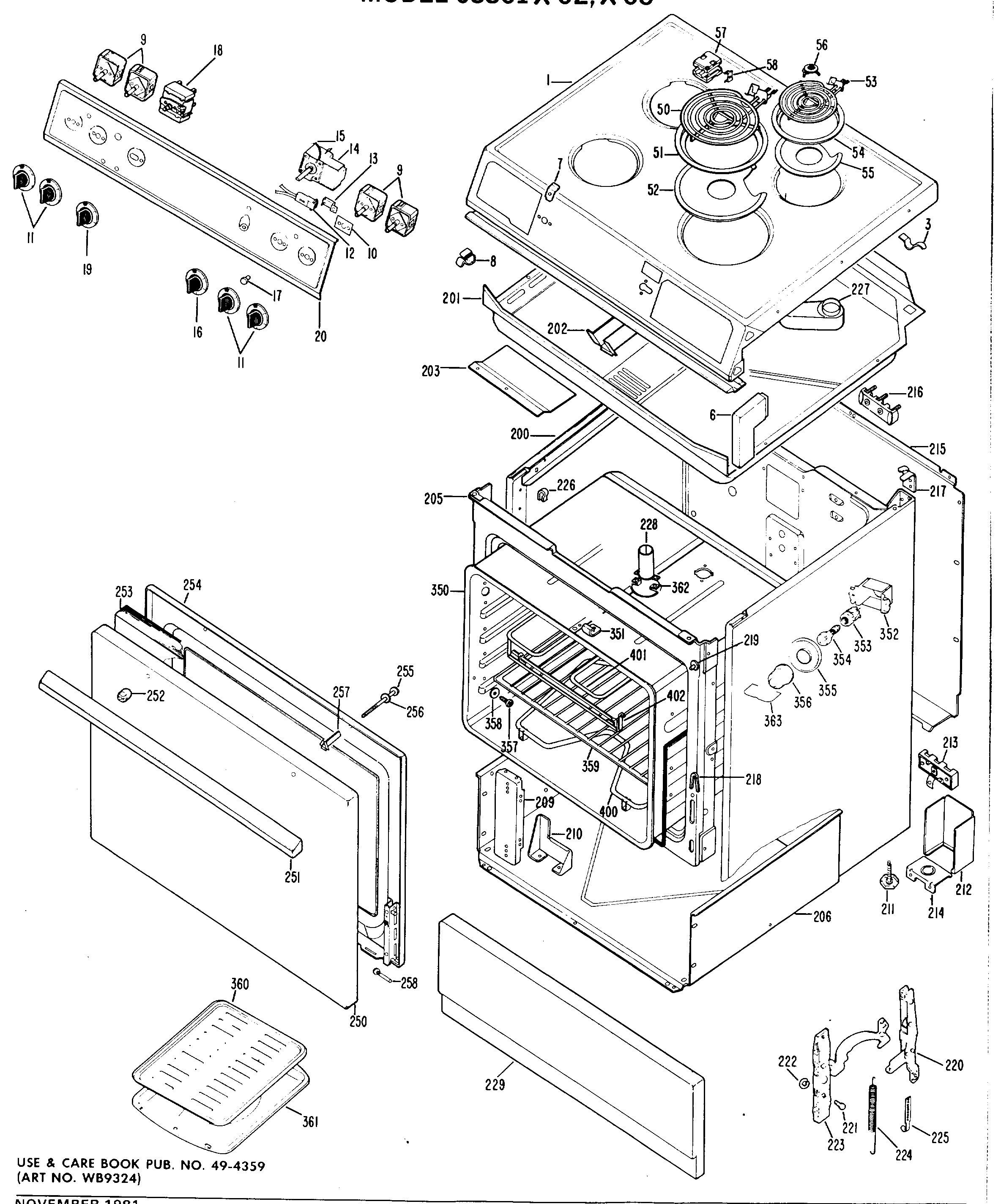

PositionProduct
1GEN WB62X5280
1GEN WB62X5279
1GEN WB02X6822
1GEN WB62X5278
3CLIP LEAD
6GEN WB07X6688
6GEN WB01X0271
6GEN WB07X6687
7WB1X5364 GE Oven Mounting Screw
7GEN WB02X6760
8GEN WB02X5165
9SCR 8-32 M PHR 3/16 S
9WB21X36771 GE Surface Element Switch
9GEN WB02X6823
10GEN WB02X3383
11KNOB – SURFACE UNIT SWIT
12GEN WB02X6108
13CLIP MTG LAMP
14THERMOSTAT, L.O.
15GEN WB02X6762
16GEN WB03X0487
17WB25X65 GE Oven Light Indicator
18GEN WB22X5097
18GEN WB01X5531
19GEN WB03X0468
20GEN WB07X6686
50WB30X348 GE Oven 8" Surface Unit Element with Screw
51TRIM RING 8"
52WB32X10013 GE Oven 8" Chrome Drip Pan
53WB30X359 GE Oven Range Stove 6" Surface Element Burner Unit
53WB1X500D GE Oven Screw Package
54WB31X5013 GE Oven 6" Chrome Trim Ring
55WB32X10012 GE Oven Range Cooktop 6" Chrome Drip Pan
56GEN WB32X0052
56GEN WB32X0051
57TERM BLOCK SINGLE COIL
57WB2X1351 GE Oven Terminal Block
58CLIP INSULATOR
200GEN WB02X3229
201GEN WB49X5204
202GEN WB02X6769
203GEN WB02X6770
205GEN WB02X6882
205GEN WB56X5861
205FRONT FRAME
205SCR 8-18X5/8
206GEN WB49X5156
209GEN WB02X6913
210GEN WB02X6187
211GEN WB01X5519
211GEN WB01X5533
211GEN WB02X6772
212GEN WB02X6655
213WB17X5095 GE Black Oven Terminal
213SCR 10-16 B SL 1-1/8 S
213PLATE GROUND
214BRACKET KNOCKOUT
214WB1X536 GE Oven Screw
215GEN WB49X5203
216BLOCK TERM DISTRIBUTION
216GEN WZ04X0384
217GEN WB02X6185
217GEN WZ05X0211
217GEN WB02X6184
218GEN WB02X6342
219SWITCH, OVEN LIGHT
220GEN WB10X5090
220GEN WB10X5091
220GEN WB01X5471
220GEN WB01X5497
220WB1X119D GE Oven Range Washer
221GEN WB02X6195
222RING RETAINING
223HINGE LEVER ASM RH & LH
224SPRING DOOR
225HOOK DOOR SPRING
226CLAMP HARNESS
227BODY VENT
228GEN WB02X6773
229GEN WB56X5837
229GEN WB02X6831
229GEN WB53X5835
229GEN WB56X5836
250WZ4X345D GE Screw Package 12 C92
250GEN WB56X5810
250GEN WB56X5807
250GEN WB56X5811
251WB15X10225 GE Range Handle
252GEN WB02X3241
253GEN WB02
