JSS26GV2BG CONTROL PANEL & COOKTOP

JSS26GV2BG CONTROL PANEL & COOKTOP

Written by

in

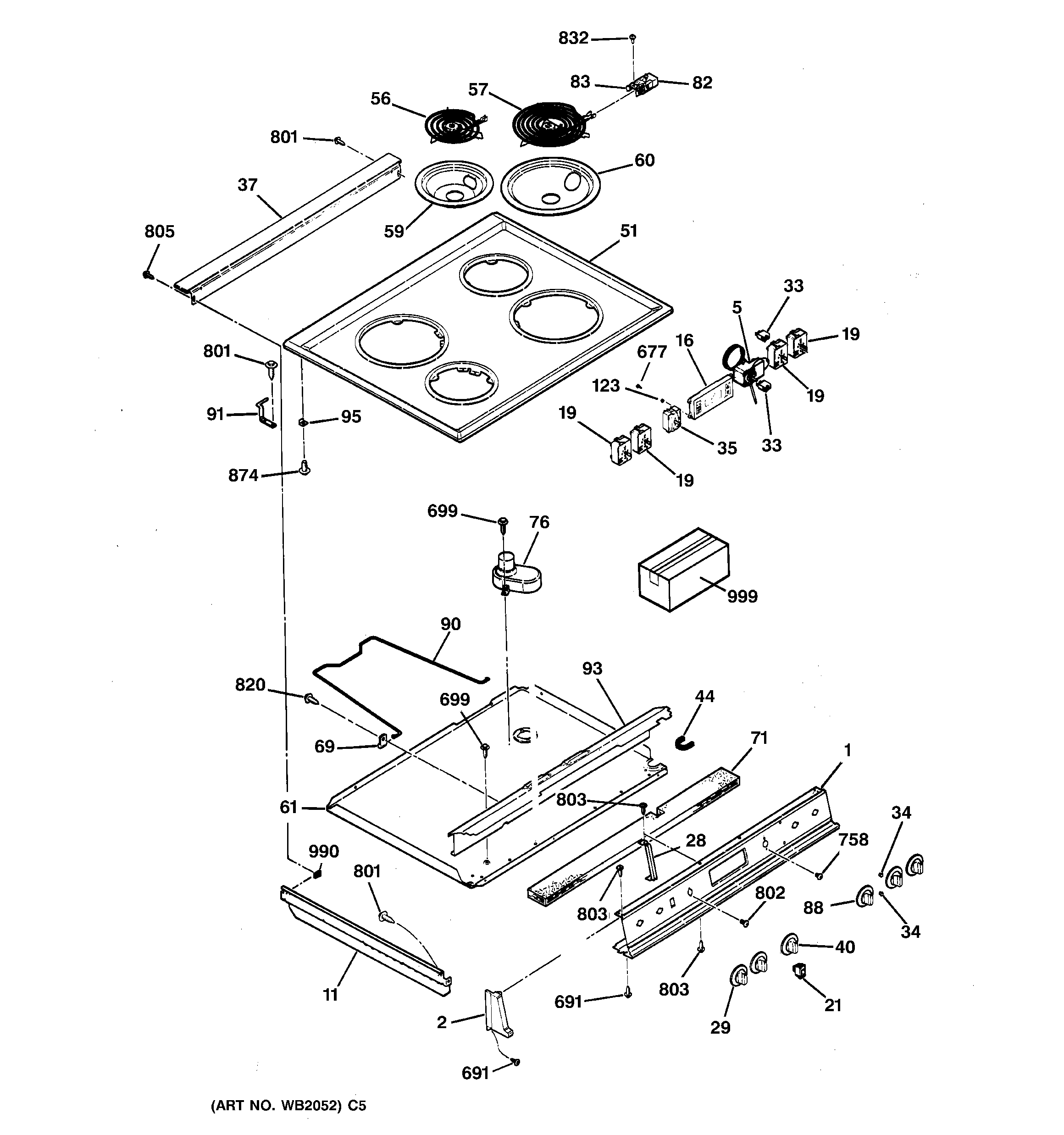

JSS26GV2BG CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB36K5553
2GEN WB36K5378
2GEN WB36K5379
5GEN WB20K5016
11SIDE EXTENSION
16GEN WB27K5234
19WB23K5027 GE Stove Range Oven Infinite Control Burner Switch
19WB23M24 GE Stove Range Infinite Switch 1500W Cooktop Surface Burner
21GEN WB24X0415
28GEN WB02K5333
29WB3K5242 GE Oven Black Infinite Knob
33WB25T10039 GE Oven Light Indicator
33WB25T10040 GE Oven Light Indicator
34LENS
35GEN WB24K5040
37UNKNOWN
40GEN WB03K5244
44UNKNOWN
51MAINTOP-CHROME
56WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
57WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
59BOWL BURNER 6 (CH)
60GEN WB31M0015
61GEN WB64K5037
69WB2M87 GE Oven Support Rod Clamp
71GEN WB35K5034
76UNKNOWN
82WB17X210 GE Oven Range Cooktop Burner Receptacle Block Kit
83GEN WB01K5128
88GEN WB03K5245
90UNKNOWN
91UNKNOWN
91UNKNOWN
93GEN WB34K5106
95WB10X255 GE Oven Hinge Bracket
123OVEN DOOR GLASS
123GEN WB01K0079
233INSULATION-TOP SIDES
677GEN WB01K5197
691WB1K5177 GE Oven Trim Screw
699WB1M1 GE Oven Screw
758WD2X323D GE Dishwasher Screw Package
767SCREW TF 12-24X.500(BLK)
802GEN WB01K5123
803WB1X1149 GE Oven Screw
805GEN WB01X1113
820WB1X1424D GE Oven Screw Package
832WB1X1118 GE Oven Screw 6-32T
874UNKNOWN
910WB1X5731D GE Oven Nut Package of 12
952GEN WB02K5359
990GEN WB01X1432
999GEN WB18K5581
999GEN 31-13238
999MAIN WIRE HARNESS
999GEN 31-10070
999PM MANUAL USE & CARE
