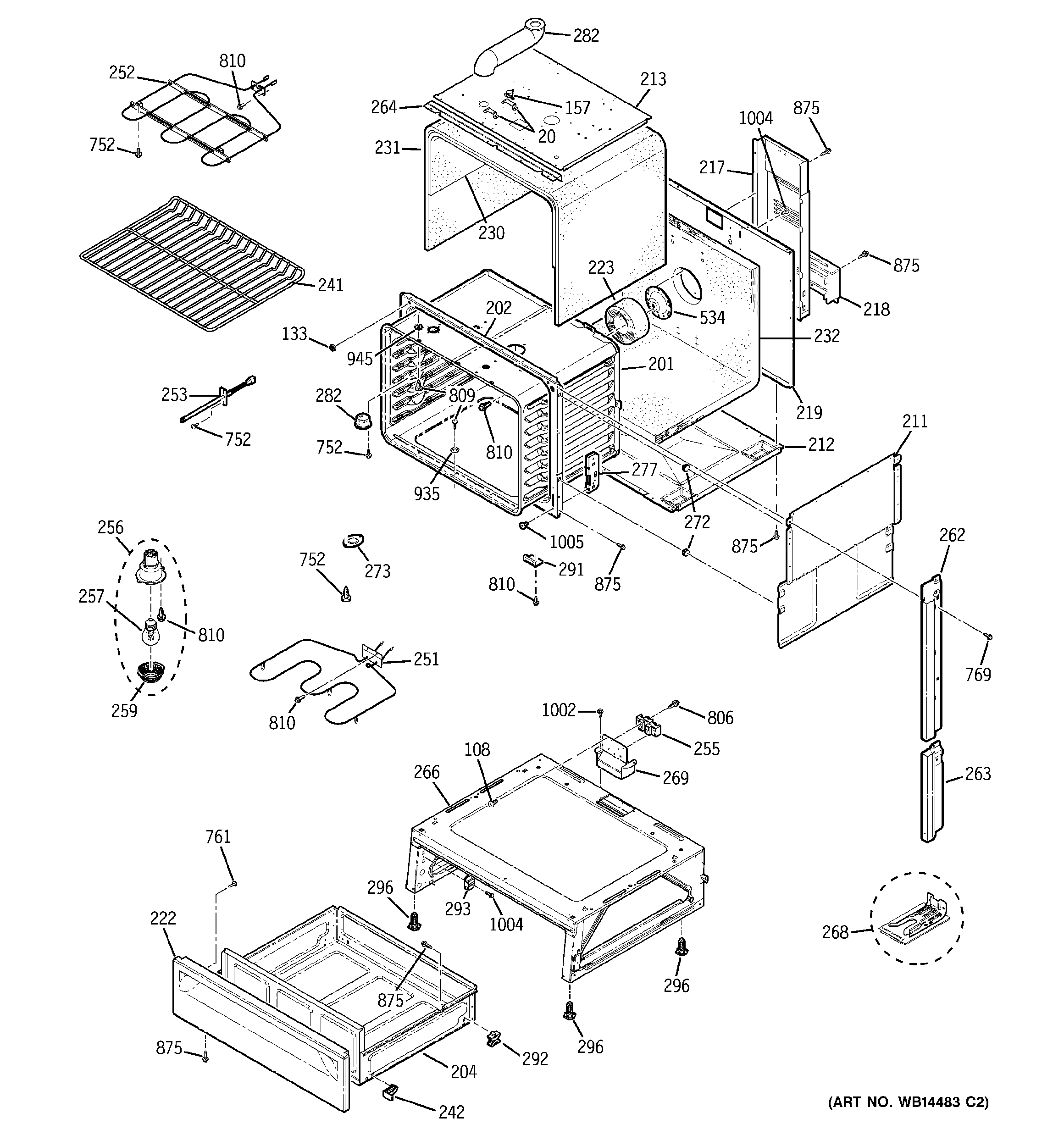

JSS28CK4CC BODY PARTS

JSS28CK4CC BODY PARTS

Written by

in

JSS28CK4CC BODY PARTS

Products

PositionProduct
20WB02T10270 GE Oven Switch Bracket
108WB1X5364 GE Oven Mounting Screw
133WB01T10022 GE Oven Door Bumper
157WB24T10116 GE Oven Limit Switch
201WRAPPER OVN CAV UPR
202WB63T10083 GE Front Lower Frame
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
213GEN WB02T10414
217WB34K10049 GE Oven Rear Cover Wire
218WB34T10054 GE Oven Right Rear Lower Cover Wire
219WB02X20948 GE Oven Back Insulation Retainer
222DRAWER PANEL-BISQUE
230WB35T10126 GE Oven Insulation Top
231WB35T10074 GE Oven Lower Insulation
232WB35T10090 GE Oven Back & Bottom Insulation
241WB48T10095 GE Oven Rack
242WB48T10068 GE Oven Wedge Drawer
251WB44K10009 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
255WB17T10011 GE Oven Terminal Block
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
262WB07T10524 GE Right Side Trim Vertical (Bq)
262WB07T10525 GE Trim Vertical Side Light
263WB07T10634 GE Left Side Vertical Trim (Bq)
263GEN WB07T10633
264WB07T10472 GE Oven Inner Trim Vent (Black)
266WB63X28540 GE Base Assembly Rivet
268WB07T10516 GE Oven Front Trim Assembly
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
269WB17T10021 GE Oven Mount Terminal Block
272WB02T10034 GE Oven Body Side Support
272GEN WB02T10411
273GEN WB02K5365
277GEN WB10T10083
282WB38T10027 GE Oven Tube Vent Assembly
282GEN WB38T10028
291GEN WB02X9152
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
296GEN WB01M0018
534WB26T10015 GE Oven Cavity Support
752WB1K5200 GE Oven Screw 340531
761WB1K5062 GE Oven Screw
769WB1X500D GE Oven Screw Package
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
