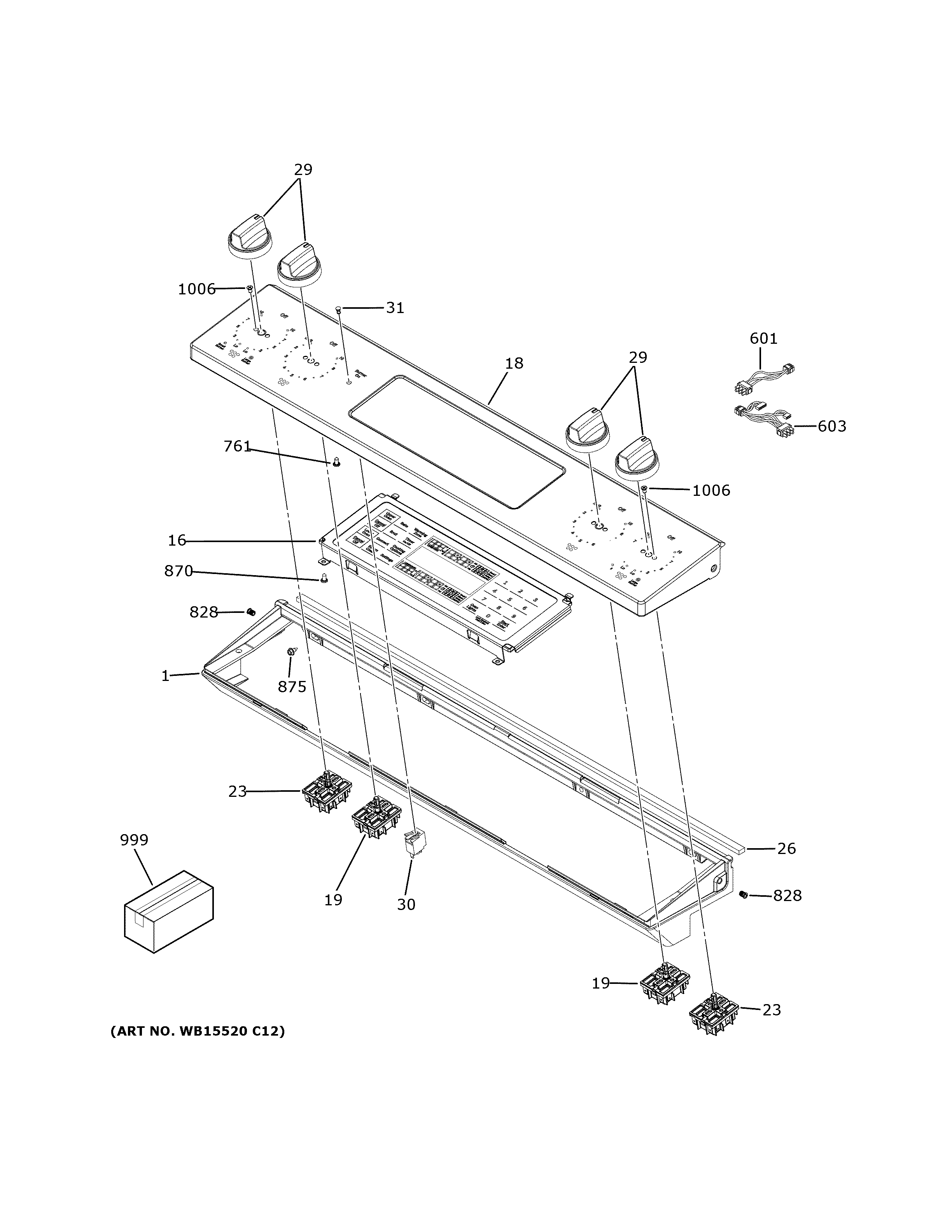

JSS86SP1SS CONTROL PANEL

JSS86SP1SS CONTROL PANEL

Written by

in

JSS86SP1SS CONTROL PANEL

Products

PositionProduct
1CONTROL PANEL TRIM ASM
1LABEL WIRE DIAGRAM
16WB27X43580 GE Stainless Control Panel & Boar
18WB07X33621 GE Stainless Steel Control Panel Overlay
19WB24X37345 GE Infinite Control Switch
23WB24X25013 GE Oven Control Infinite Switch
26WB35X29473 GE Oven Gasket Control Panel
29WB03X34871 GE Oven Stainless Infinite Knob
30WB25X20005 GE Oven Light Indicator Pilot
31WB25X24023 GE Oven Indicator Light Lens
601WB18X30745 GE 14 Ga Green Lead Wire
603WB18X32705 GE Oven Infinite Switch Harness
603WB18X37708 GE Infinite Wire Harness
603WB18X29523 GE RJ45 Connector Harness
828WB01X29474 GE Oven Plug Insert
870WB1X5904 GE Oven Screw 8-18 BA
875WH2X930 GE Screw
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
999MANUAL U&C TIP SHEET
999PM INSTRUCTIONS INSTALL
999PM OWNERS MANUAL
999PM MINI MANUAL AND WIRING
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
