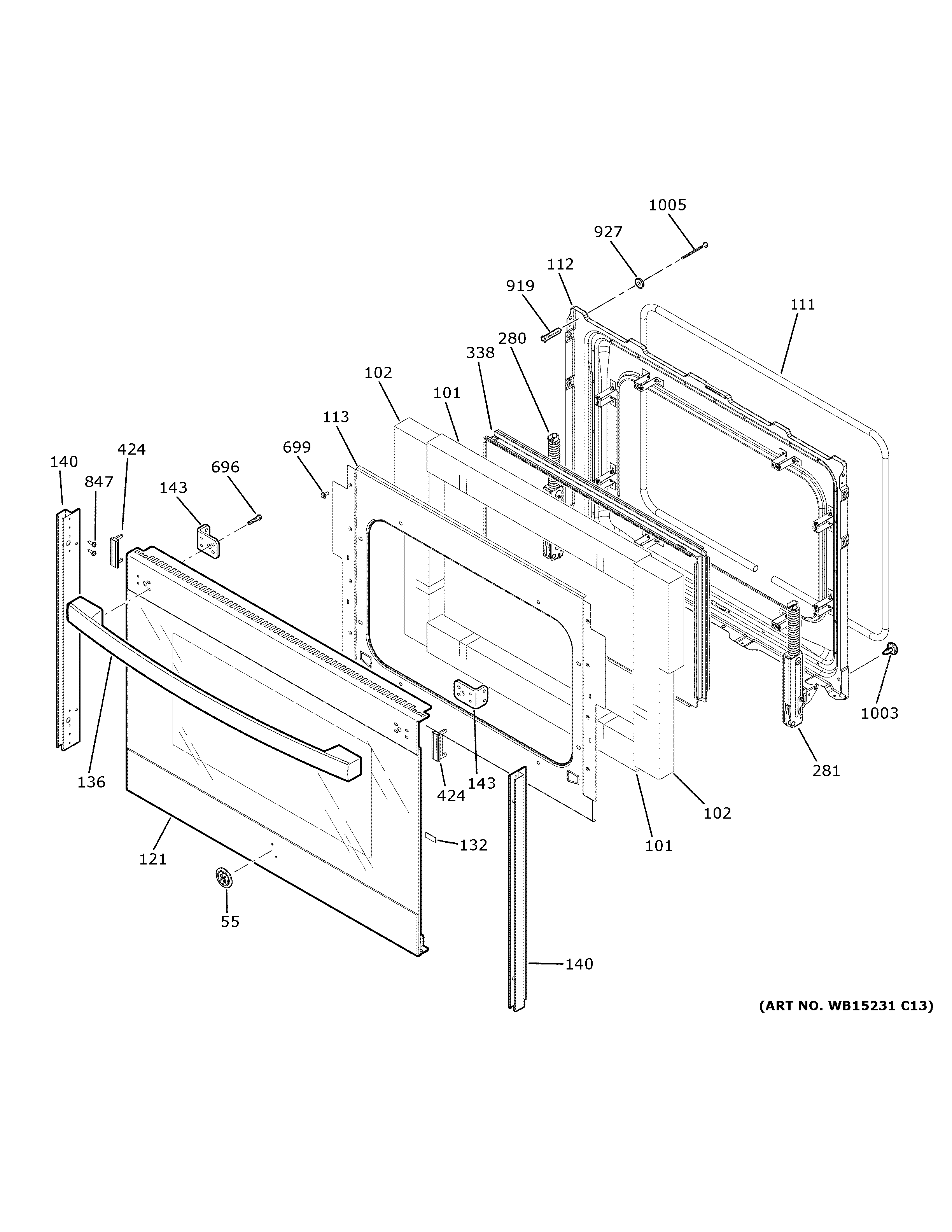

JSS86SP1SS LOWER DOOR

Products

Position	Product
55	WB02X29637 GE Oven Badge Assembly
101	WB35X30052 GE Oven Door Insulation Assembly
102	WB35X30053 GE Oven Door Insulation
111	WB04T10076 GE Oven Door Gasket
112	WB63X32774 GE Oven Door Liner Assembly
113	WB02T10371 GE Oven Retainer Insulation
121	WB56X43433 GE Stainless Lower Outer Door
132	WB01T10026 GE Oven Door Pad
136	WB15X33521 GE Handle and Endcap Assembly
140	FRAME LOWER DOOR SIDE
143	WB34X25638 GE Door Handle Bracket (Black)
280	WB10X30491 GE Left Door Hinge
281	WB10X30492 GE Door Hinge Right
338	WB56X22160 GE Stove Inner Door Glass Assembly
424	FILLER PLASTIC
696	WB01T10137 GE Screw 6-32 TR3 PNT 1.405
699	WB1M1 GE Oven Screw
847	WZ4X245D GE Screw Package
919	WB02X25272 GE Door Spacer
927	WB1X119D GE Oven Range Washer
1003	WB01T10008 GE Oven Screw 10-32
1005	WB01X27933 GE Scr 10-32 Ca Trt 3.30
