JSS86SP1SS UPPER DOOR

JSS86SP1SS UPPER DOOR

Written by

in

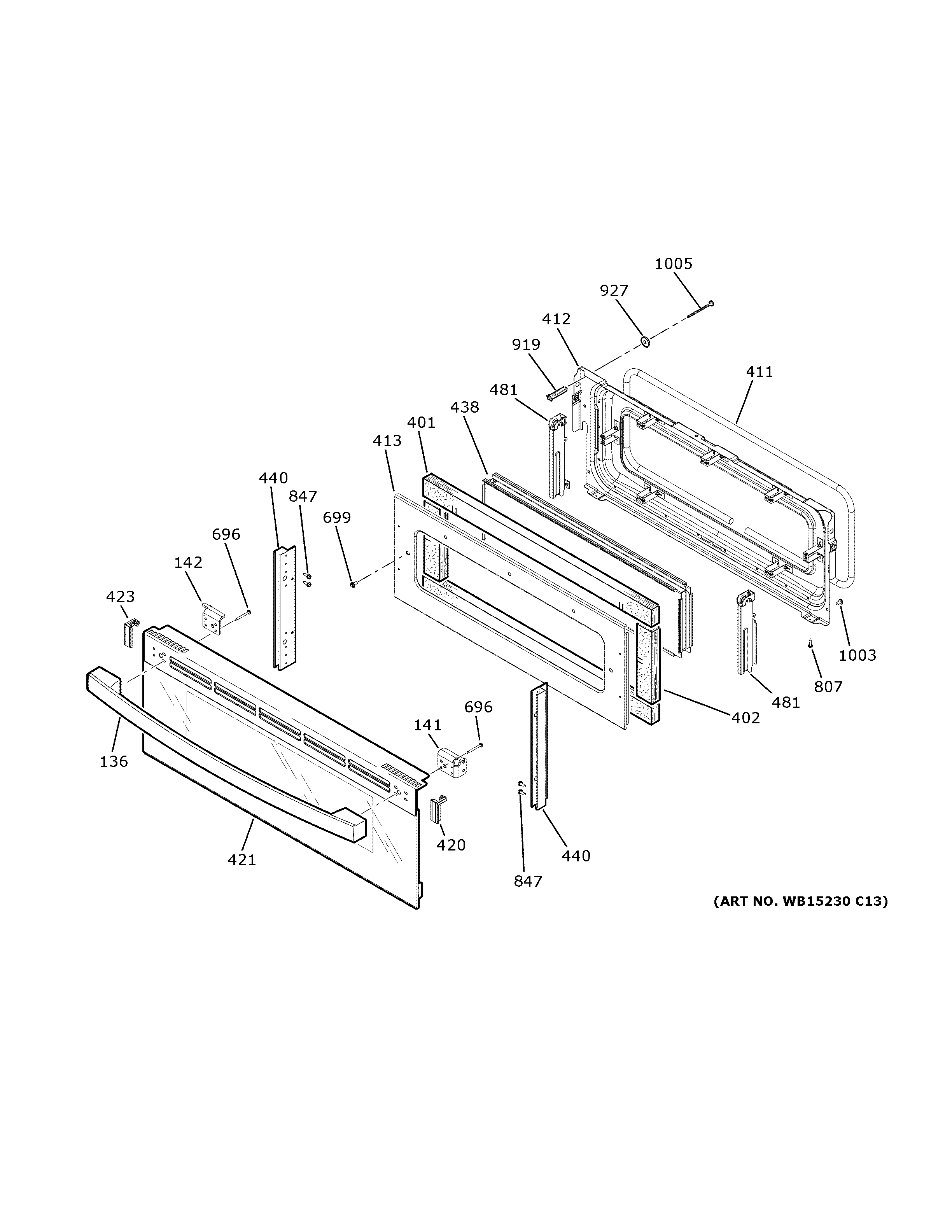

JSS86SP1SS UPPER DOOR

Products

PositionProduct
136WB15X33521 GE Handle and Endcap Assembly
141WB34X25221 GE Oven Handle Vent Trim Bracket
142WB34X42670 GE Left Hand Door Handle Bracket
401WB35X30050 GE Oven Door Insulation
402OVEN DOOR INSULATION SIDE
411WB04T10077 GE Range Oven Door Gasket
412WB63X20854 GE Oven Door Liner Assembly
413WB56T10318 GE Oven Insulation Retainer
420FILLER PLASTIC RIGHT
421STAINLESS UPPER OUTER DOOR
423FILLER PLASTIC LEFT
438WB56T10244 GE Oven Upper Window Pack Assembly
440WB56X38466 GE Upper Door Side Frame
481WB10T10100 GE Oven Right-Hand Hinge Receiver
481WB10T10101 GE Oven Upper Receiver Hinge
696WB01T10137 GE Screw 6-32 TR3 PNT 1.405
699WB1M1 GE Oven Screw
807WB01T10084 GE Screw 8-32 x .343 Truss
847WZ4X245D GE Screw Package
919WB02X25272 GE Door Spacer
927WB1X119D GE Oven Range Washer
1003WB01T10008 GE Oven Screw 10-32
1005WB01X27933 GE Scr 10-32 Ca Trt 3.30
