JSS86SP7SS UPPER OVEN

JSS86SP7SS UPPER OVEN

Written by

in

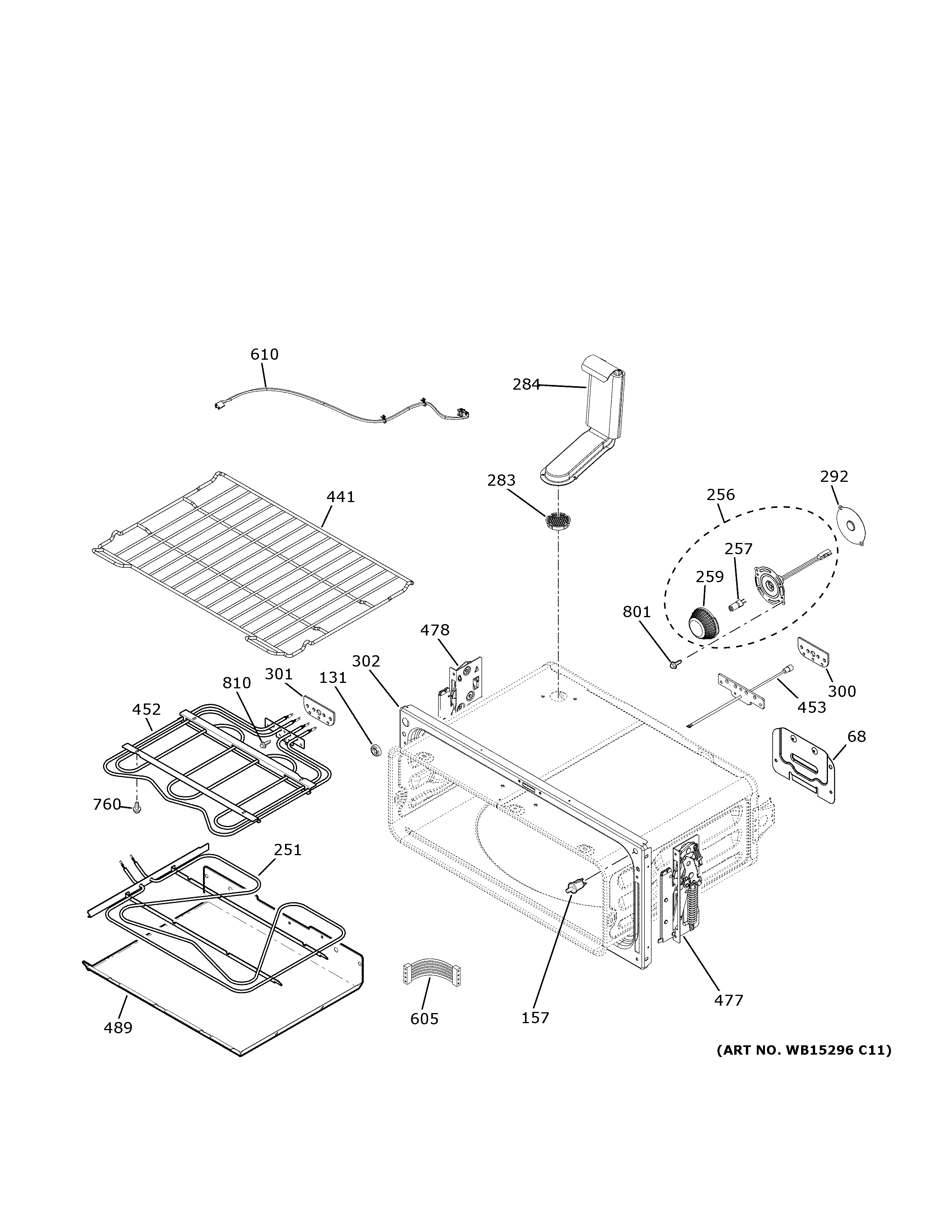

JSS86SP7SS UPPER OVEN

Products

PositionProduct
68WB34X20970 GE Plate Cover Assembly (Black)
131WB01T10022 GE Oven Door Bumper
157WB24T10147 GE Oven SPDT Light Switch
251HIDDEN BAKE ELEMENT
256WB25X24909 GE Oven Halogen Lamp Assembly
257WB08T10045 GE Oven G9 Halogen Lamp
259OV LAMP LENS LWR
283WB38X33647 GE Smoke Eliminator
284UPPER VENT TUBE ASM
292WB34X20009 GE Cover Hole Assembly (Black)
300BROIL ELEMENT GASKET
301GASKET INNER GLASS FIBER
302FRAME FRONT UPPER (BK)
441WB48T10072 GE Oven Rack
452WB44X45488 GE Broil Shield
453WB23T10015 GE Oven Sensor Probe
477WB10T10104 GE Oven Hinge Assembly
478WB10T10105 GE Oven Hinge Assembly
489PAN REFLECTOR
605WB18X47026 GE Hidden Bake Wire Harness
610WB18X29526 GE Plunger Switch Wire Harness
760WB1X536 GE Oven Screw
801WB01M10002 GE Oven Screw
810WH2X1186 GE Screw
