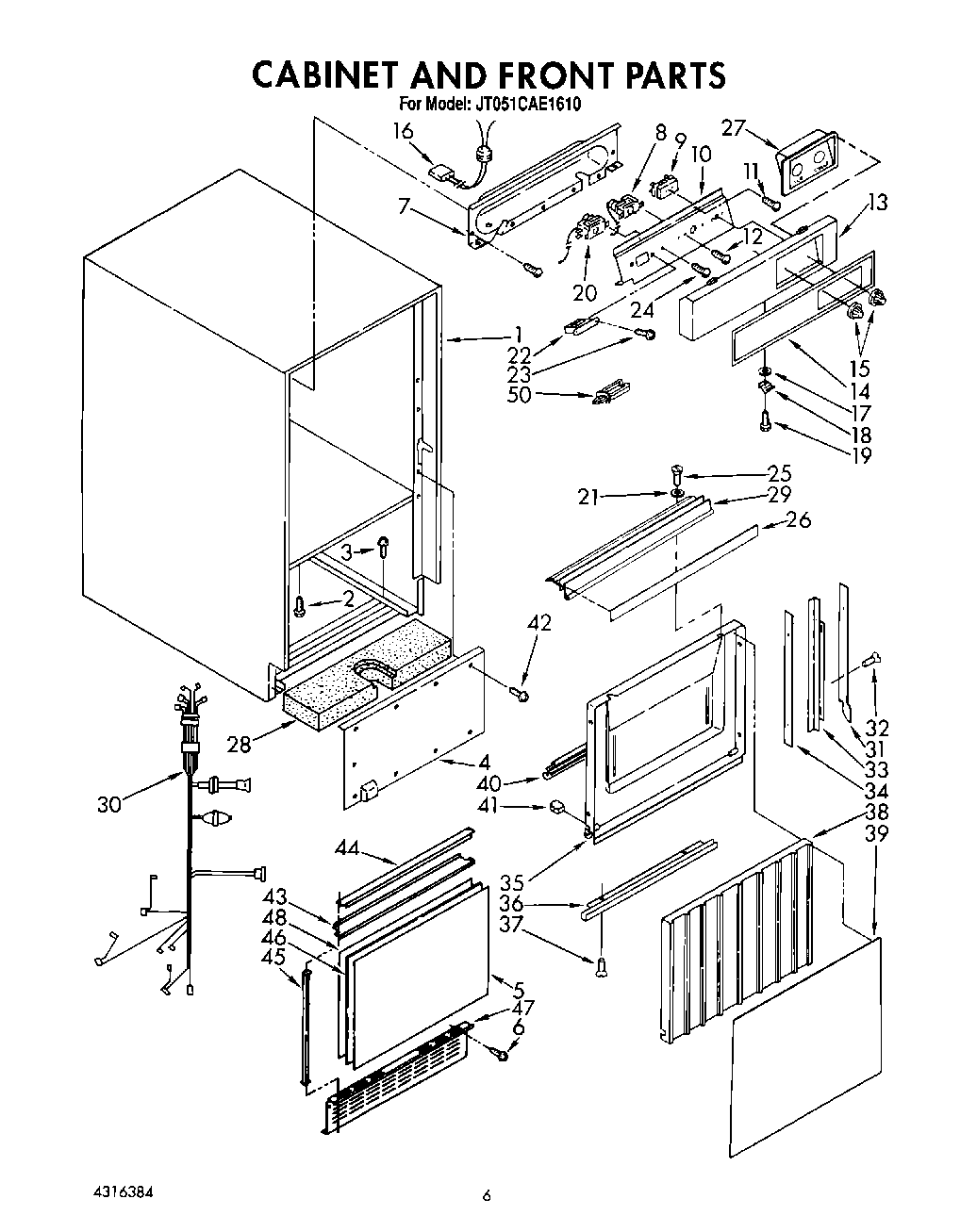

JT051CAE1610 03 – CABINET AND FRONT

Products

Position	Product
1	Cabinet
3	Screw, No.10-32 x 3/8
4	Support, Cabinet Front
5	Panel, Grille Cabinet Front
6	WP90767 Whirlpool Screw
7	Panel, Rear Escutcheon
8	Thermostat, Evaporator
9	Switch, Rotary
10	Panel, Control
11	WP488729 Whirlpool Refrigerator Door Screw
12	WP486579 Whirlpool Air Conditioner Screw
13	Escutcheon, Control
14	WPL 757808
15	WPL 757809
16	Harness, Wiring (Cutter Grid)
17	Washer, Latch
18	Latch, Door
19	Repair, Screw
20	Thermostat, Ice-Bin
21	Washer (2)
22	Transformer
24	Screw, 8-32 x 3/8 (2)
25	Screw, 10 x 1/2
26	WPL 757827
27	WPL 757810
28	Insul/Bottom Foam
29	Pull, Door
30	WPL 758838
31	Rail, Door (Right Side)
31	Rail, Door (Left Side)
32	Screw, No.8-32 1/2 (6)
33	Trim, Door (R.S.)
33	Trim, Door (L.S.)
34	Strip, Tapping (2)
35	Liner, Door
36	Trim, Door (Lower)
37	Screw, No.8-32 x 1/2
38	WPL 758754
39	Panel, Door (White & Black)
40	Gasket, Door
41	Plug, Hinge
42	WP965173 Whirlpool Dishwasher Screw
43	Support Panel
44	Trim, Top & Bottom
45	Trim, Sides (2)
46	Filler, Grille Panel
47	Grille, Panel
48	Panel, Inner Grille
50	Retainer, Wire (2)
