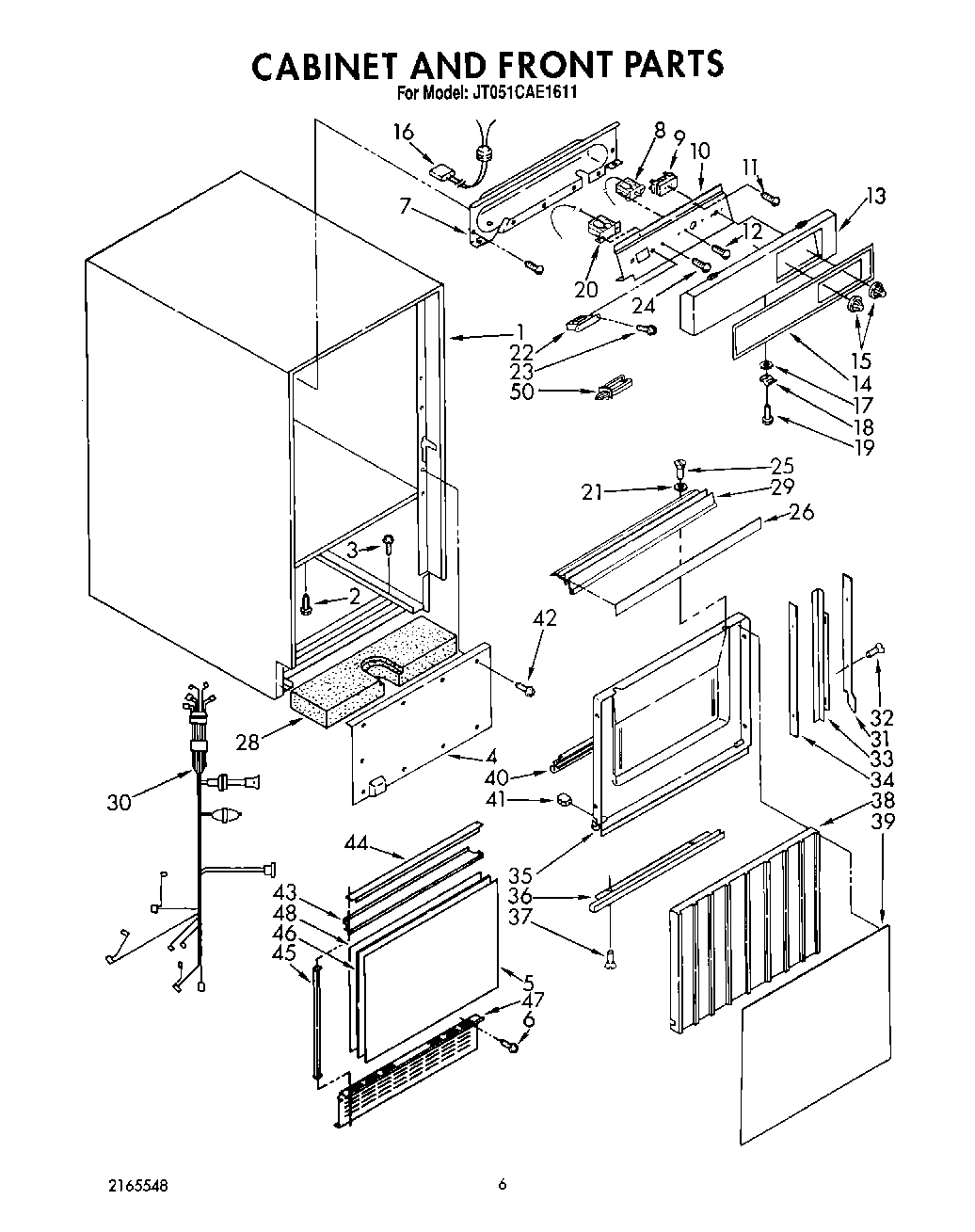

JT051CAE1611 04 – CABINET AND FRONT

Products

Position	Product
1	Cabinet
3	Screw, No.10-32 x 3/8
4	Support, Cabinet Front
5	Grille, Panel
6	WP90767 Whirlpool Screw
7	Panel, Rear Escutcheon
8	WPL 2157321
9	Switch, Rotary
10	Panel, Control
11	WP488729 Whirlpool Refrigerator Door Screw
12	WP486579 Whirlpool Air Conditioner Screw
13	Escutcheon
14	WPL 2165567
15	Knob
16	Harness, Wiring (Cutter Grid)
17	Washer, Latch
18	Latch, Door
19	Screw, 8-32 x 1/2
20	WPL 2165478
21	Washer (2)
22	Transformer
24	Screw, 8-32 x 3/8 (2)
25	Screw, 10 x 1/2
26	WPL 756313
28	Insul/Bottom Foam
29	Pull, Door
30	WPL 758838
31	Rail, Door (Right Side)
31	Rail, Door (Left Side)
32	Screw, No.8-32 1/2 (6)
33	Trim, Door (R.S.)
33	Trim, Door (L.S.)
34	Strip, Tapping (2)
35	Liner, Door
36	Trim, Door (Lower)
37	Screw, No.8-32 x 1/2
38	WPL 758754
39	Panel, Door (White & Black)
40	Gasket, Door
41	Plug, Hinge
42	WP965173 Whirlpool Dishwasher Screw
43	Support Panel
44	Trim, Top & Bottom
45	Trim, Sides (2)
46	Filler, Grille Panel
47	WPL 758712
48	Panel, Inner Grille
50	Retainer, Wire (2)
