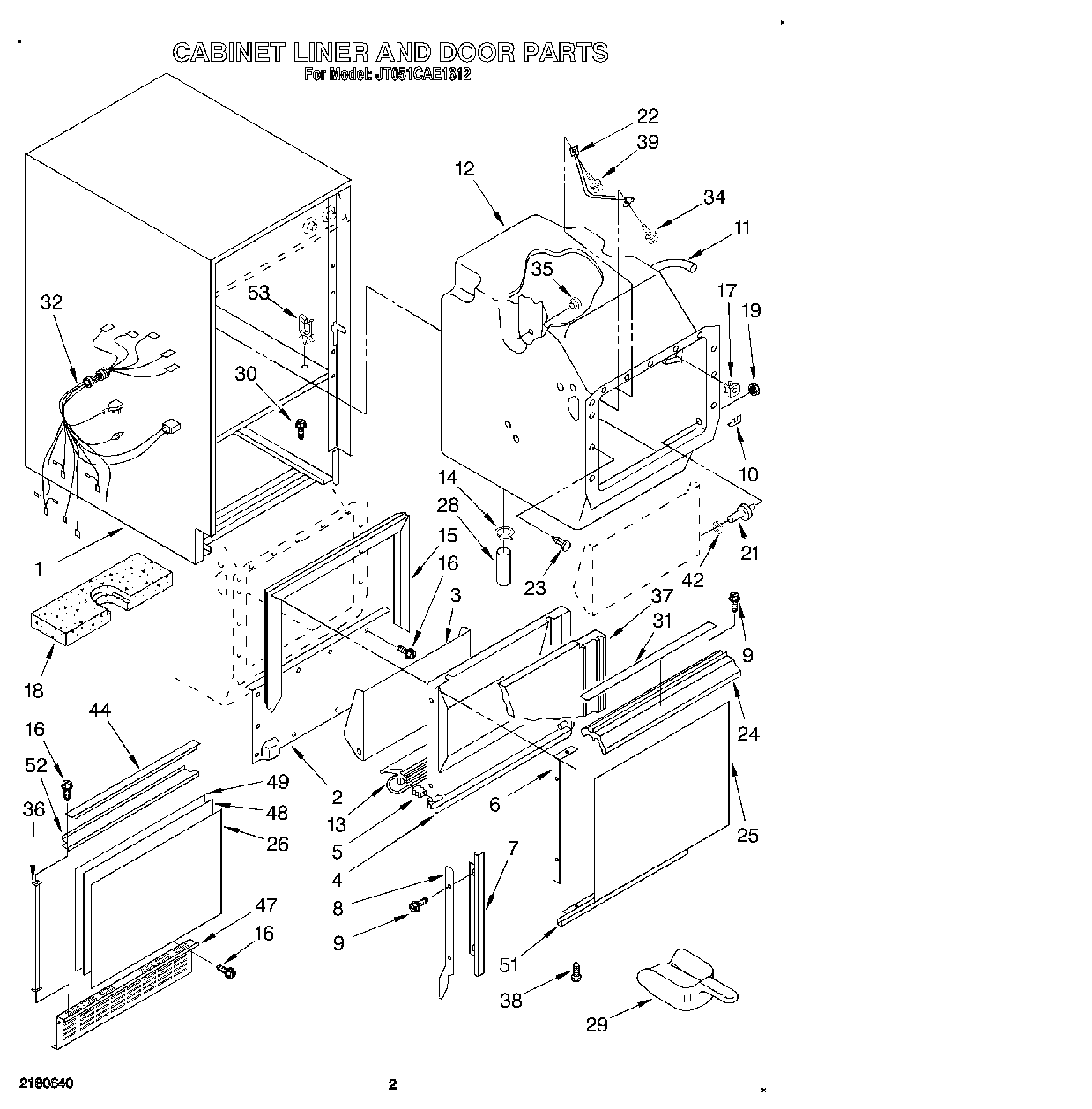

JT051CAE1612 02 – CABINET LINER AND DOOR, LITERATURE

JT051CAE1612 02 – CABINET LINER AND DOOR, LITERATURE

Written by

in

JT051CAE1612 02 – CABINET LINER AND DOOR, LITERATURE

Products

PositionProduct
WPL LIT2180640
WPL LIT2180620
WPL LIT2174783
WPL LIT2180635
WPL LIT2180616
1WPL 2175698
2WPL 2175619
3Door, Inner
4Liner, Door
5Plug, Hinge
6Strip, Tapping (2)
7Trim, Door (L.S.)
7Trim, Door (R.S.)
8Rail, Door (Left Side)
8Rail, Door (Right Side)
9Screw, No.8-32 1/2 (6)
10Washer, Clip
11WPL 759213
12Liner (Includes No.s 5, 6, 7, 11, 14)
13WPL 2172898
14Clamp, Hose (2)
15Gasket, Liner
16WP488729 Whirlpool Refrigerator Door Screw
17Grommet, Mtg (2)
18Insul/Bottom Foam
19Nut, Hex 1/4 (2)
21Stud, Inner Door Mtg. (2)
22Thermostat, Well Bin
23Clip, Linner (12)
24Pull, Door
25Panel, Door (White & Black)
26Panel, Grille Cabinet Front
28Hose, 5/8 x 4“ (Connector To Air Gap)
29W11420408 Whirlpool Refrigerator Ice Scoop
30Screw, No.10-32 x 3/8
31WPL 756313
32WPL 2174781
34Thumbscrew 10-32 x 5/8
35Nut, Well (3)
36Trim, Sides (2)
37WPL 758754
38Screw, No.8-32 x 1/2
39Screw, 10 x 1/2
42Washer (2)
44Trim, Top & Bottom
47Grille, Panel
48Filler, Grille Panel
49Panel, Inner Grille
51Trim, Door (Lower)
52WPL 2175604
53WP505587 Whirlpool Refrigerator Sealer
53978026 Whirlpool Refrigerator Primary Valve
53WP503695 Whirlpool Refrigerator Sealer
53876370 Whirlpool Refrigerator Insulation
53212643 Whirlpool Refrigerator Permagum Sealer
53978030 Whirlpool Refrigerator Valve
53978027 Whirlpool Refrigerator Primary Valve
53Retainer, Wire (2)
53WP978025 Whirlpool Refrigerator Valve
53VALVE, ACCESS (1/2“)
53WPL 799351
53VALVE, ACCESS (5/8“)
53WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
