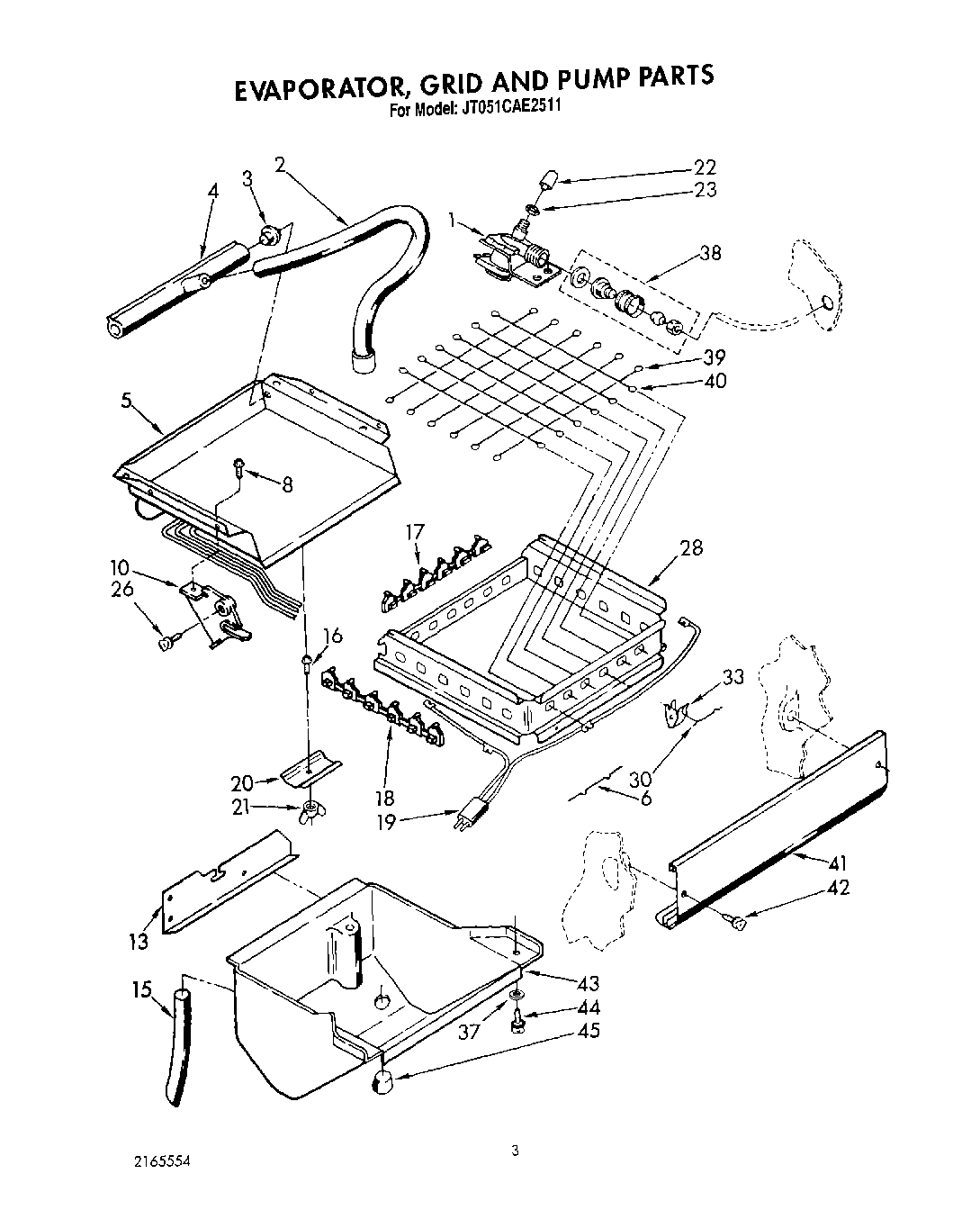

JT051CAE2511 02 – EVAPORATOR, GRID AND PUMP

Products

Position	Product
1	Valve, Complete Water
2	Hose, Dispenser
3	Plug,
4	Dispenser, Water
5	Evaporator
6	Pin, Grid Wire (17)
8	SCREW
10	Bracket, Grid (2)
13	Shelf, Water Pan
15	WPL 759109
16	Screw, 10-32 x 1/2
17	Insulator (2 Strips of 10)
18	Insulator (2 Strips of 9)
19	Harness, Wiring (Cutter Grid)
20	Clamp
21	Nut, 10-32
22	4387491 Whirlpool Refrigerator Insert
23	WP627018 Whirlpool Refrigerator Nut
26	Screw, Thumb 10-32 x 1``
28	WPL 759200
30	Pin, Grid Wires (4)
33	Clip, Grid Wires (11)
37	Washer, Latch
38	Adapter
39	Wire, Cutter (Includes 5 Wires)
40	Wire, Cutter (Includes 6 Wires)
41	Panel, Grid
42	Screw, Thumb 10-32 x 3/4 (2)
43	Pan, Water
44	Screw, 10 x 1/2
45	WPL 759043
