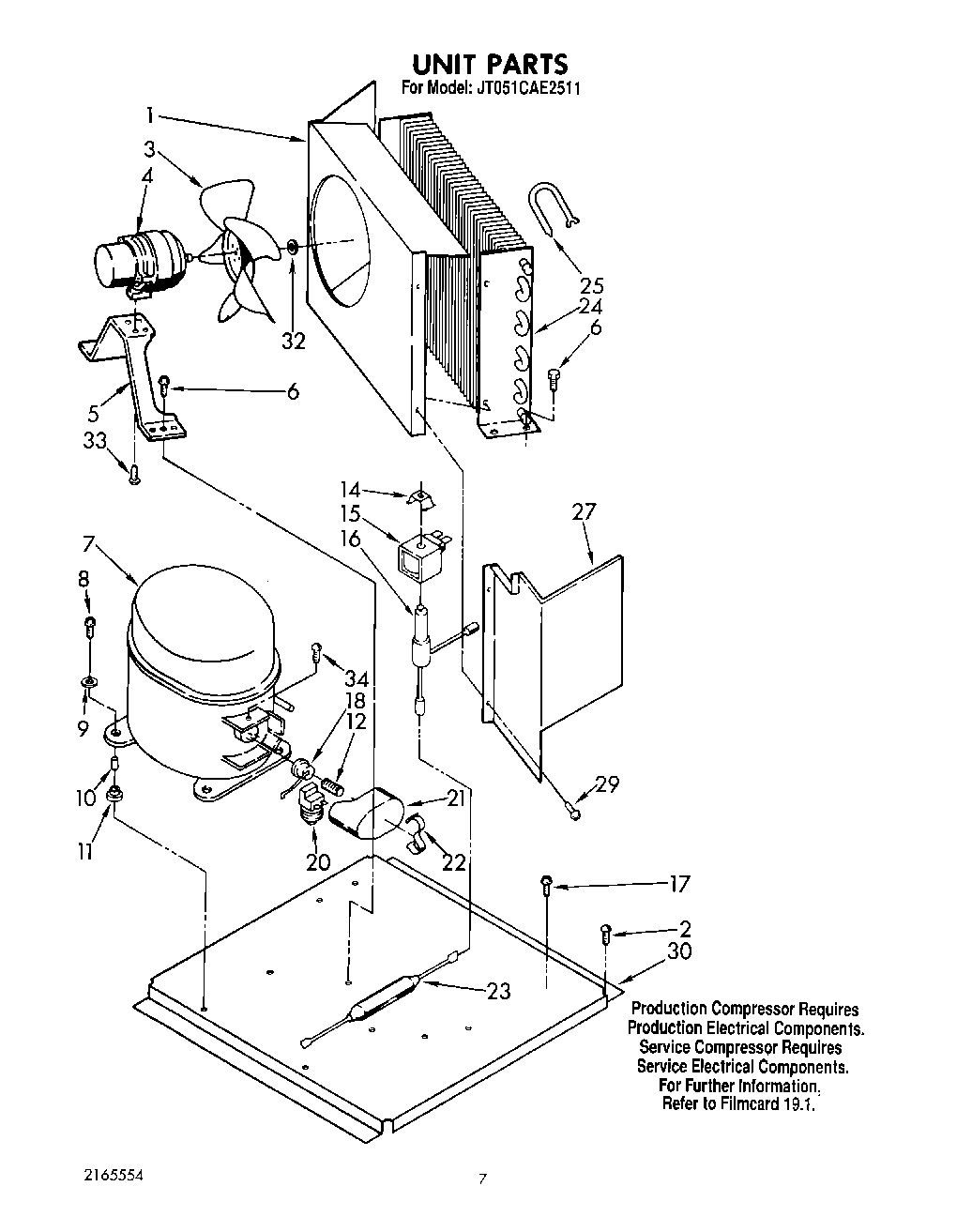

JT051CAE2511 05 – UNIT

Products

Position	Product
1	Shroud, Condenser
2	Screw, No.10-32 x 3/8
3	978655 Whirlpool Refrigerator Fan Blade
4	WPL 593821
5	Bracket, Fan Motor
6	Screw, 1/4-20 x 1/2
7	WPL 598180
8	Screw, 5/16-18 x 1-1/4 (4)
9	Washer, Flat (4)
10	Sleeve (4)
11	Grommet (4)
12	Spring, Overload
14	Retainer, Solenoid Coil
15	WPL 593639
16	Valve, Solenoid Coil
17	WP488729 Whirlpool Refrigerator Door Screw
18	WPL 598196
20	WPL 598195
21	Case, Relay
22	Cover, Spring
23	W10843121 Whirlpool Refrigerator Tube
24	Condenser
25	Accumulator
27	Deflector, Air
29	WP90767 Whirlpool Screw
30	Base, Unit
32	Nut, Hex 1/4-20
33	Screw, 8-36 x 1/2 (4)
34	Screw (Compressor Ground)
